Goobay
120 dB SAT Coaxial Cable, 4x Shielded, CCS
for digital SAT and DVB-C systems
Goobay
120 dB SAT Coaxial Cable, 4x Shielded, CCS
for digital SAT and DVB-C systems
Article details
  • Satellite cable for connecting or extending e. g. cable TV or radio systems
  • High-quality and flexible PVC sheathing guarantees protection against heat, cold and weather
  • TV aerial cable is digitally compatible for the installation of HDTV via DVB-S/S2, DVB-T/T2, DVB-C/C2

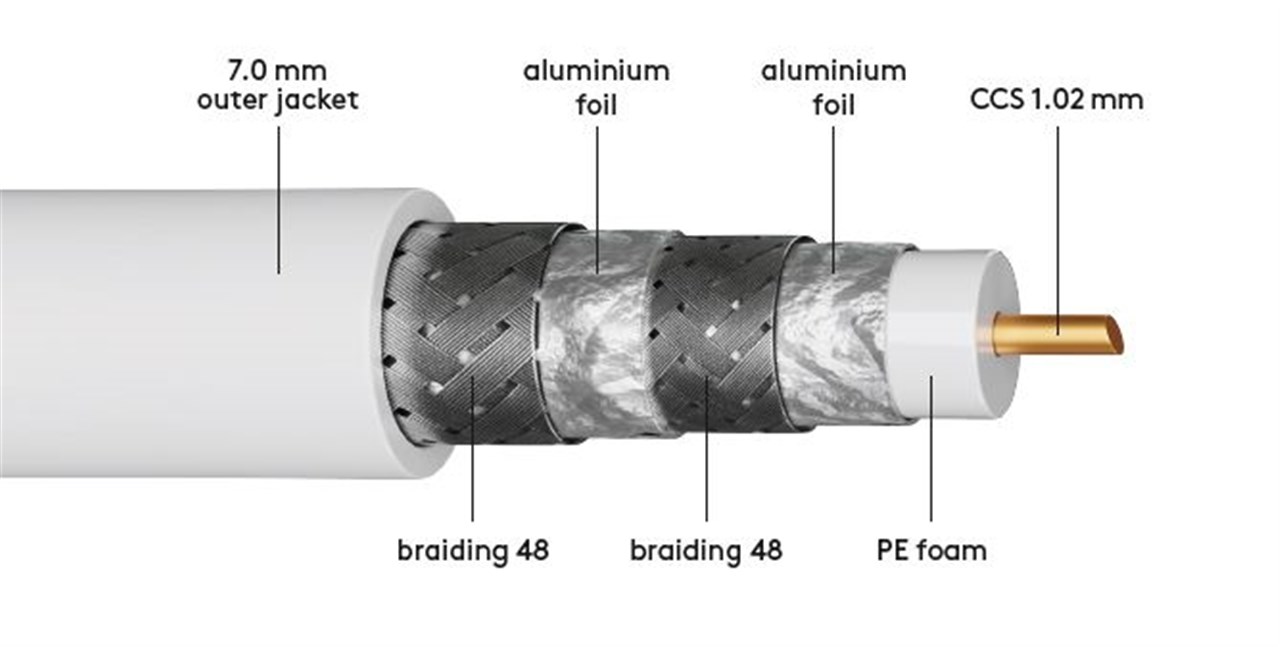

  • Antenna cable is 4-fold shielded for effective protection over long distances
  • Inner conductor made of particularly conductive and flexible copper
  • Metre scaling is indicated on the coax cable
  • Meets the CPR (Construction Products Regulation), therefore corresponding to the Eca fire protection class.
Technical specifications
Cable
Cable type
coaxial cable
Number of shieldings
4 x
Meter scaling
yes
Type 1, shielding
foil (aluminium)
Type 2, shielding
braid (aluminium) 48x
inner conductor, core diameter
1.02 mm
Dielectric diameter
4.8
Inner conductor material
CCS
Cable sheath diameter (approx.)
7 mm
Cable length
305 m
Shielding efficiency
120 dB
Fire class (CPR)
Eca
Type 3, shielding
foil (aluminium)
Type 4, shielding
braid (aluminium) 48x
Signal transmission
Impedance
75 Ω
General
Outer sheath material
PVC
Color
white
Markings
ECA_CPR, CE
Operating temperature from
-20 °C
Operating temperature up to
70 °C

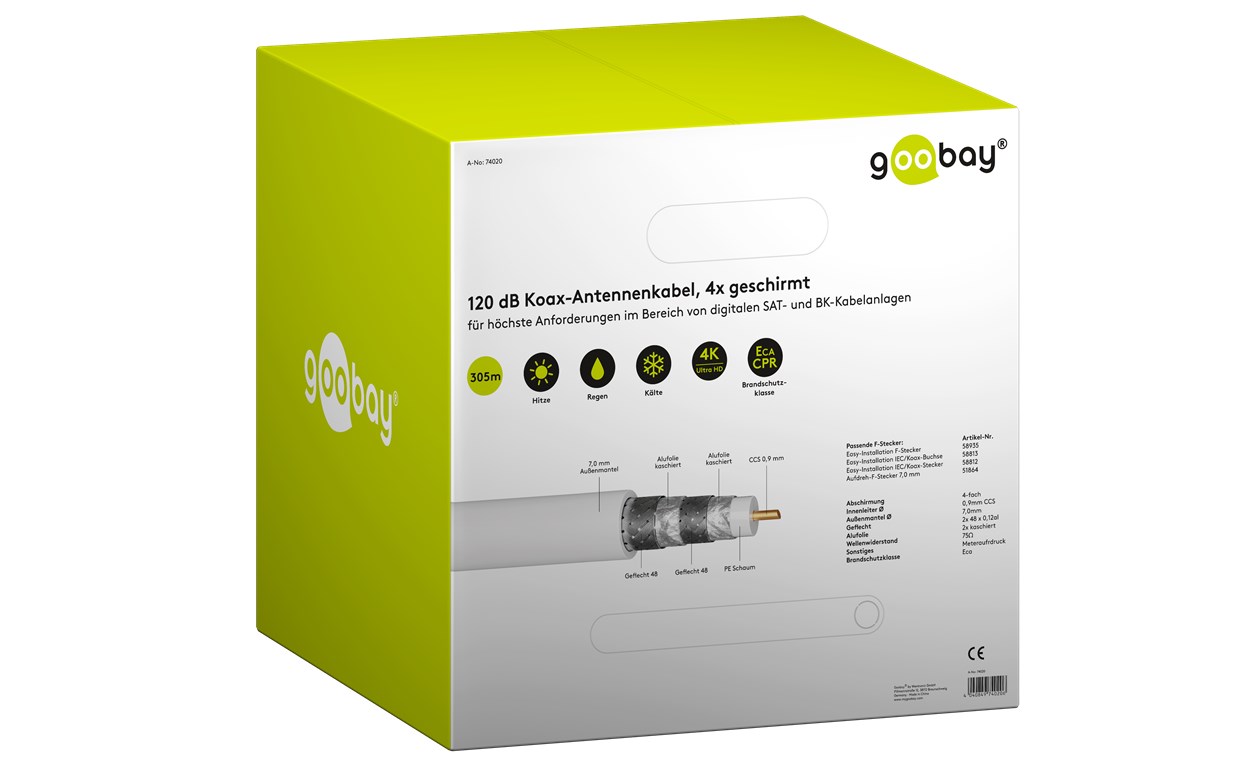

Packaging type
Pull-out-Box
Dimensions / Weight
Consumption Unit
1 pc. box
Downloads
Packing units:
1
Packaging type
Cable length
Item: 74020
EAN: 4040849740206
