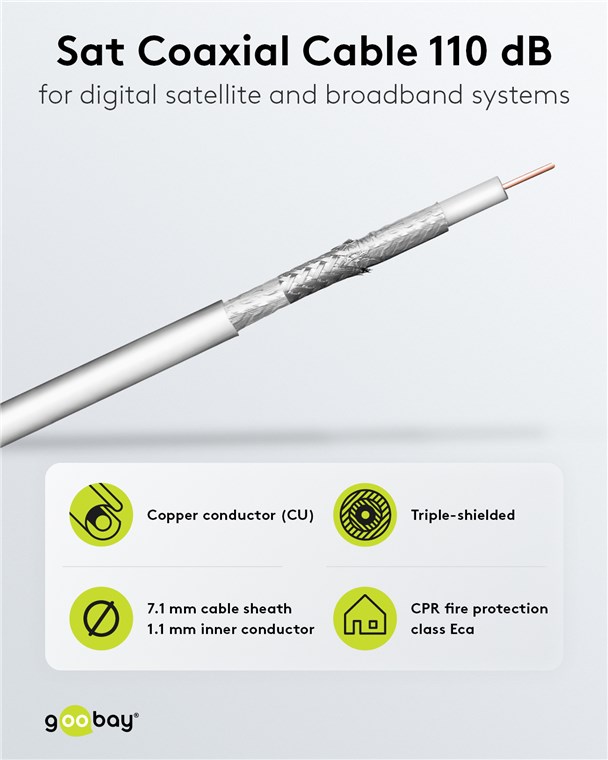

110 dB SAT Coaxial Cable, 3x Shielded, Copper Inner Conductor
coax cable for digital SAT and DVB-C systems
110 dB SAT Coaxial Cable, 3x Shielded, Copper Inner Conductor
coax cable for digital SAT and DVB-C systems
Article details
- Satellite cable tested and classified as Class A according to EN 50117
- Digitally compatible with HDTV installed via DVB-S/S2, DVB-T/T2, DVB-C/C2
- Triple shielded TV cable for effective protection over long distances
- Antenna cable with inner conductor made of particularly conductive and flexible copper
- Metre scaling is indicated on the TV aerial cable
- Meets the CPR (Construction Products Regulation), therefore corresponding to the Eca fire protection class.
- For connecting or extending e. g. cable TV or radio systems

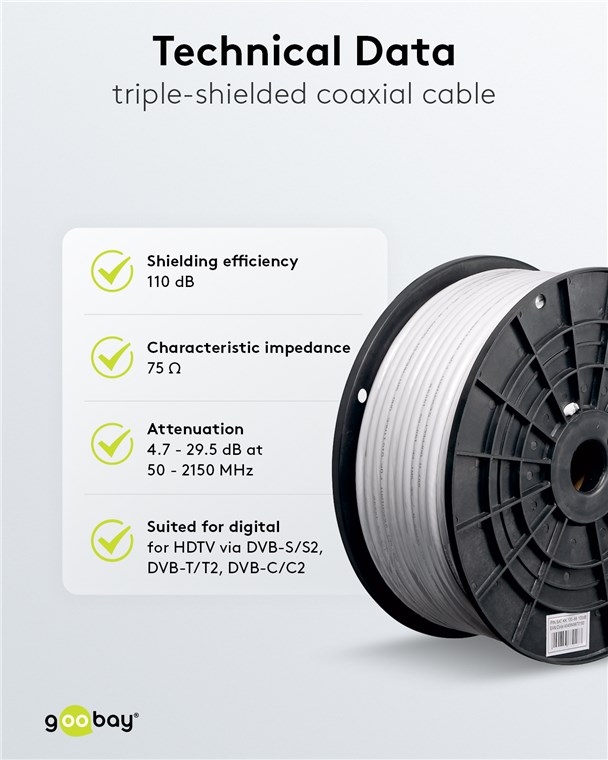

Technical specifications
Cable
Shielding class
Class A
Meter scaling
yes
inner conductor, core diameter
1.1 mm
Dielectric diameter
4.8
Cable type
coaxial cable
Cable length
100 m
Cable sheath diameter (approx.)
7.1 mm
Inner conductor material
CU (copper)
Shielding efficiency
110 dB

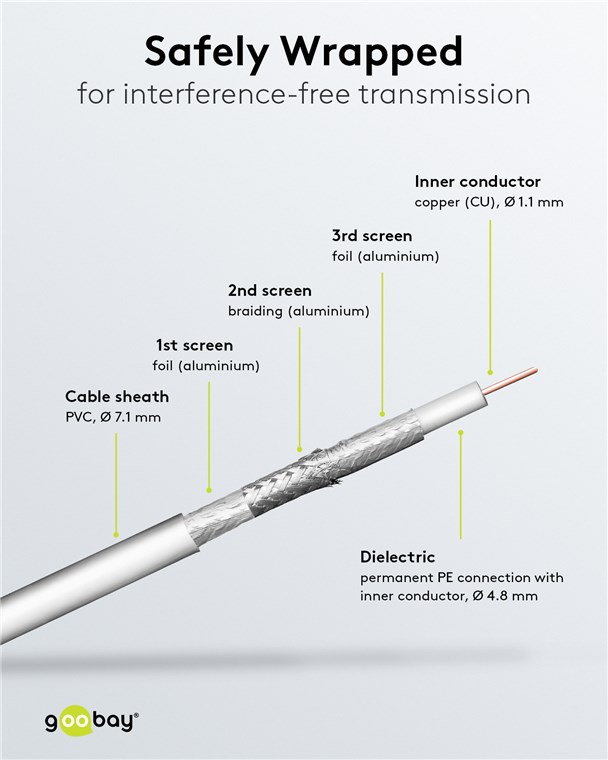

Number of shieldings
3 x
Type 1, shielding
double foil (aluminium)
Type 2, shielding
braid (aluminium) 128x
Type 3, shielding
foil (aluminium)
Fire class (CPR)
Eca
Signal transmission
Impedance
75 Ω
General
Outer sheath material
PVC
Dangerous substances > 0.1 % w/w
Color
white
Markings
ECA_CPR, CE
Operating temperature from
-20 °C
Operating temperature up to
70 °C
Packaging type
Cable spool-drum
Dimensions / Weight
Weight
4593 g
Consumption Unit
1 pc. cable reel
Downloads
Packing units:
1 / 2
Item: 67098
EAN: 4040849670985
