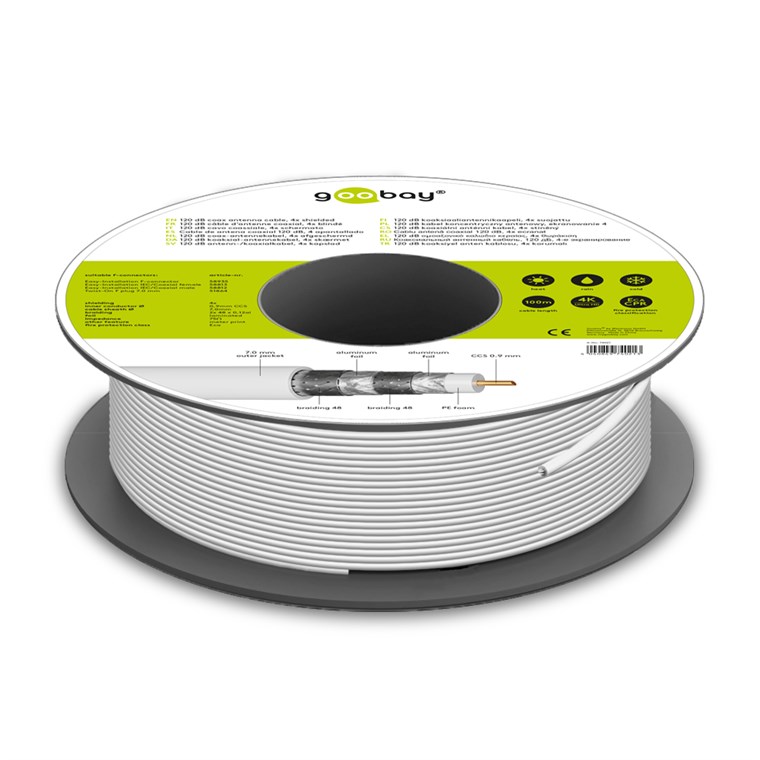

120 dB SAT Coaxial Cable, 4x Shielded, CCS
for digital SAT and DVB-C systems
120 dB SAT Coaxial Cable, 4x Shielded, CCS
for digital SAT and DVB-C systems
Article details
- Satellite cable for connecting or extending e. g. cable TV or radio systems
- High-quality and flexible PVC sheathing guarantees protection against heat, cold and weather.
- TV aerial cable is digitally compatible for the installation of HDTV via DVB-S/S2, DVB-T/T2, DVB-C/C2.
- Antenna cable is 4-fold shielded for effective protection over long distances
- Inner conductor made of particularly conductive and flexible copper
- Metre scaling is indicated on the coax cable
- Meets the CPR (Construction Products Regulation), therefore corresponding to the Eca fire protection class.
Technical specifications
Cable
Cable length
100 m
Dielectric diameter
4.8
Meter scaling
yes
inner conductor, core diameter
1.02 mm
Cable type
coaxial cable
Cable sheath diameter (approx.)
7 mm
Shielding efficiency
120 dB
Inner conductor material
CCS
Number of shieldings
4 x
Type 1, shielding
foil (aluminium)
Type 2, shielding
braid (aluminium) 48x
Type 3, shielding
foil (aluminium)
Type 4, shielding
braid (aluminium) 48x
Fire class (CPR)
Eca
Signal transmission
Impedance
75 Ω
Attenuation at 20 ° C
Attenuation at 20 ° C
0 >dB/100 m
General
Outer sheath material
PVC
Color
white
Markings
ECA_CPR, CE
Operating temperature from
-20 °C
Operating temperature up to
70 °C
Packaging type
Cable spool-drum
Dimensions / Weight
Consumption Unit
1 pc. cable reel
Downloads
Packing units:
1 / 2
Item: 74021
EAN: 4040849740213
