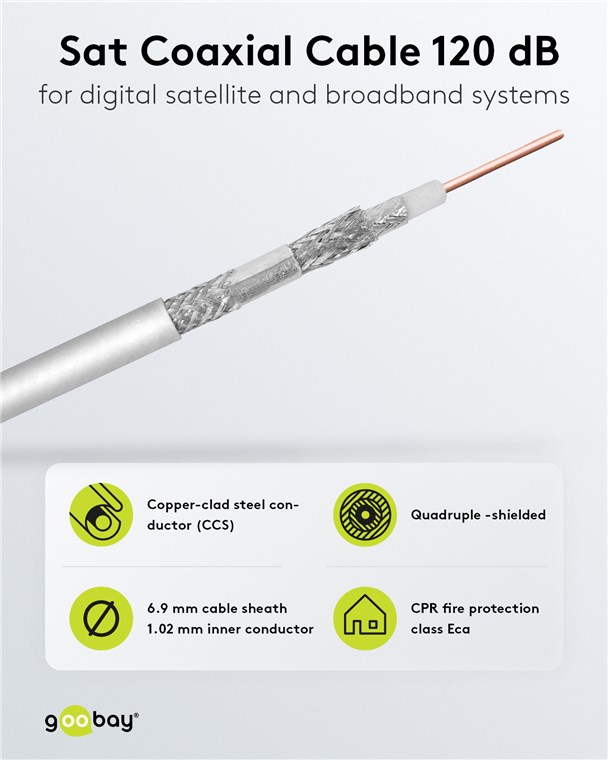

120 dB SAT Coaxial Cable, 4x Shielded, CCS
for digital SAT and BK cable systems
120 dB SAT Coaxial Cable, 4x Shielded, CCS
for digital SAT and BK cable systems
Article details
- Digitally compatible for installating HDTV via DVB-S/S2, DVB-T/T2, DVB-C/C2
- 4-fold shielded satellite cable for interference-free transmission
- With Metre scaling is indicated on the antenna cable
- TV aerial cable meets the CPR (Construction Products Regulation), corresponding to the Eca fire protection class.
- For connecting or extending e. g. cable TV or radio systems
- Coax cable is supplied on a cardboard cable reel.
Technical specifications
Cable
Cable type
coaxial cable
Number of shieldings
4 x
Meter scaling
yes
Type 1, shielding
foil (aluminium)
Type 2, shielding
braid (aluminium) 64x
inner conductor, core diameter
1.02 mm
Dielectric diameter
4.6
Inner conductor material
CCS
Cable sheath diameter (approx.)
6.9 mm
Cable length
100 m
Shielding efficiency
120 dB
Fire class (CPR)
Eca
Type 3, shielding
foil (aluminium)
Type 4, shielding
braid (aluminium) 64x
Signal transmission
Impedance
75 Ω
General
Outer sheath material
PVC
Dangerous substances > 0.1 % w/w
Color
white
Markings
ECA_CPR, CE
Operating temperature from
-20 °C
Operating temperature up to
70 °C
Packaging type
Cable spool-drum
Dimensions / Weight
Weight
4978 g
Consumption Unit
1 pc. cable reel
Downloads
Packing units:
1 / 2
Item: 27518
EAN: 4040849275180
