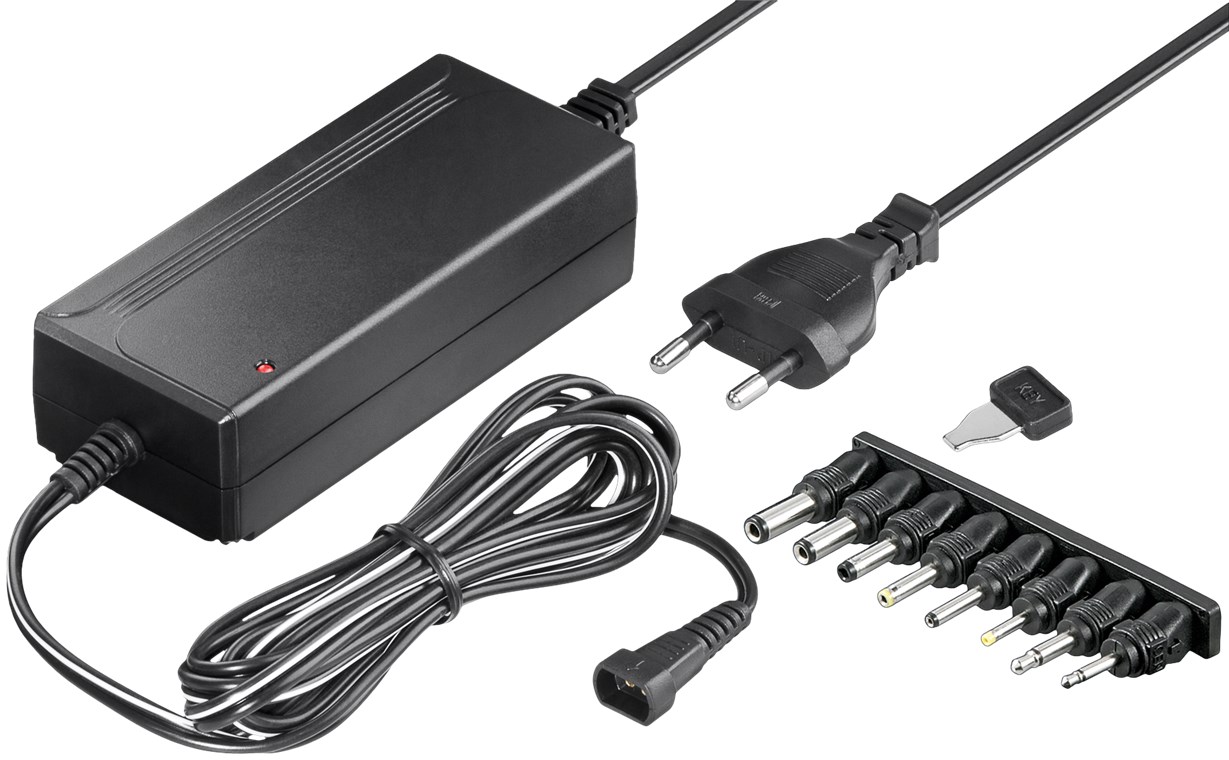

Universal Power Supply (5 V - 15 V max. 36 W / 3.0 A)
incl. 8x DC adapters
Universal Power Supply (5 V - 15 V max. 36 W / 3.0 A)
incl. 8x DC adapters
Article details
- Switching power supply for charging and operating electric devices such as a video camera, router, scanner, effects unit, cross trainer, dart board, baby monitor or toys
- The universal power adaptor eliminates the need for additional chargers and adapters thanks to the exchangeable plugs.
- The output voltage can be set at 5 V/6 V/7.5 V/9 V/12 V at 3 A and 13.5 V and 15 V at 2.4-3.0 A with the help of the adjusting wheel.
- The voltage is easily adjustable with the enclosed key.
- 8x adapter plugs: 2.5 mm jack plug, 3.5 mm jack plug, DC connector 3.50 x 1.35 mm, 4.00 x 1.70 mm, 5.00 x 2.10 mm, 5.50 x 1.50 mm, 5.50 x 2.10 mm, 5.50 x 2.50 mm
- Thanks to the wide-range input from 100 V to 240 V, the multi-voltage laptop charger (Euro Plug Type C CEE 7/16) is suitable for use worldwide.
- Fuses in the DC power supply protect against short circuit, overload, overvoltage and overcurrent.
Technical specifications
Performance
Power consumption
36 W
Security Functions
Short circuit, Overloading, Overload, Overcurrent
Output
5.0 V max. 3.0 A (15.0 W) DC
6.0 V max. 3.0 A (18.0 W) DC
7.5 V max. 3.0 A (22.5 W) DC
9.0 V max. 3.0 A (27.0 W) DC
12.0 V max. 3.0 A (36.0 W) DC
13.5 V max. 2.4 A (32.4 W) DC
15.0 V max. 2.4 A (36.0 W) DC
Polarity
positive
No-load power consumption
0.05 W
Device connections
Input, type
Europlug (Type C CEE 7/16) x in
Input, Voltage Range
100 - 240 (AC) V
Output, Voltage Step
15, 5, 6, 7,5, 9, 12, 13,5 V
voltage stabilization
yes
Output, type
DC female (universal, 2-Pin)
Output, max. amperage
3 A
Output, min. amperage
2.4 A
Output, min. amperage
2.4 A
Output, max. amperage
3.0 A
Input current
0.8 A
Cable
Cable length
1.8 m
General
Color
black
Markings
CE, WEEE, Haus, Quader
Packaging type
Retail Box
Dimensions / Weight
Length
116 mm
Width
32.5 mm
Height
50 mm
Weight
310 g
Consumption Unit
1 pc. in cardboard box
Scope of delivery
Notebook adapter
2.5 mm pawl, 3.5 mm pawl, DC adapter (3,50 x 1,35 mm), DC adapter (4,00 x 1,70 mm), DC adapter (5,00 x 2,10 mm), DC adapter (5,50 x 1,50 mm), DC adapter (5,50 x 2,10 mm), DC adapter (5,50 x 2,50 mm)
accessory - Power supply
Power frequency
60 Hz
Efficiency at low load (10 %)
84.6 %
Average active efficiency
84.1 %
Language Scope
Operation manual
en, de, fr, it
packaging
en, de, fr, it
SCIP
SCIP no.
8a96bce0-37c9-4ebd-8350-cc4594d20be0
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Packing units:
1 / 10 / 20
Item: 53999
EAN: 4040849539992
