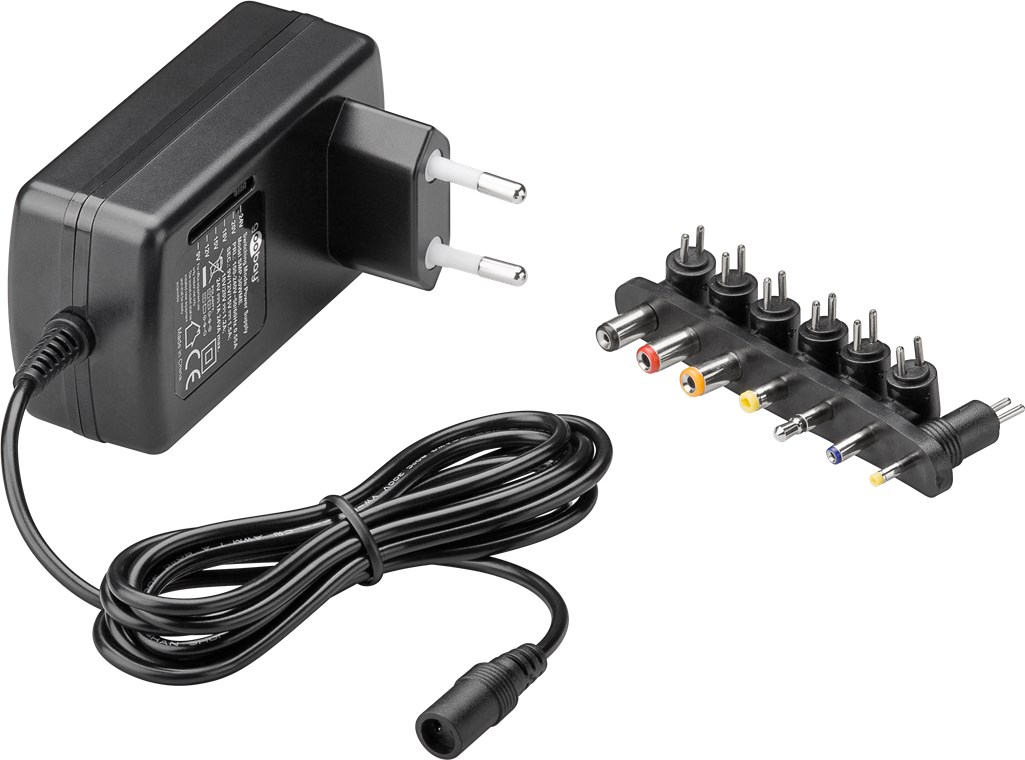

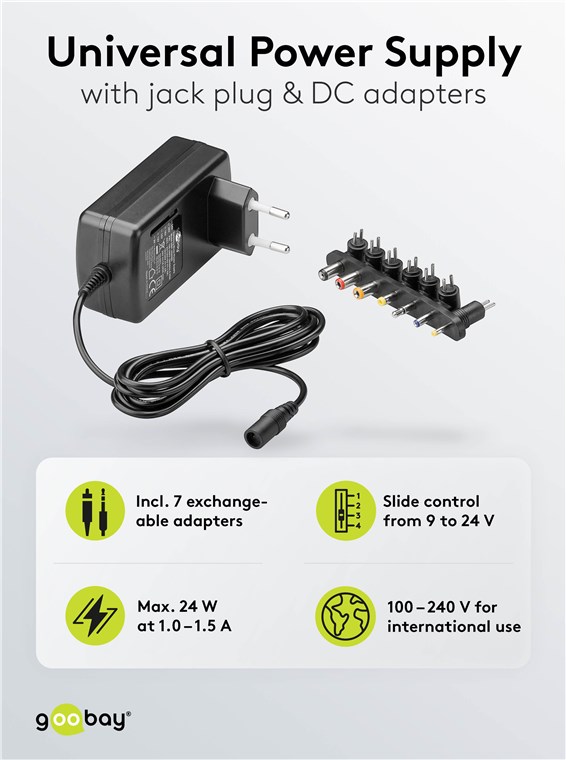

Universal Power Supply (9 V - 24 V max. 24 W / 1.5 A)
incl. 7x DC adapters
Universal Power Supply (9 V - 24 V max. 24 W / 1.5 A)
incl. 7x DC adapters
Article details
- DC power supply for charging and operating electric devices such as a video camera, router, scanner, effects unit, cross trainer, dart board, baby monitor or toys
- The universal power adaptor eliminates the need for additional chargers and adapters thanks to the exchangeable plugs.

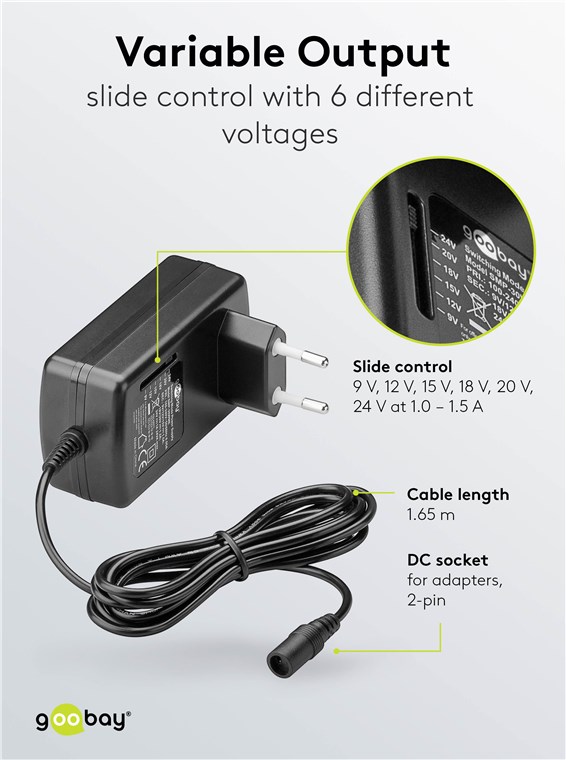

- The output voltage can be set at 9 V/12 V/15 V/18 V/20 V/24 V at 1.0-1.5 A with the help of the adjusting wheel.

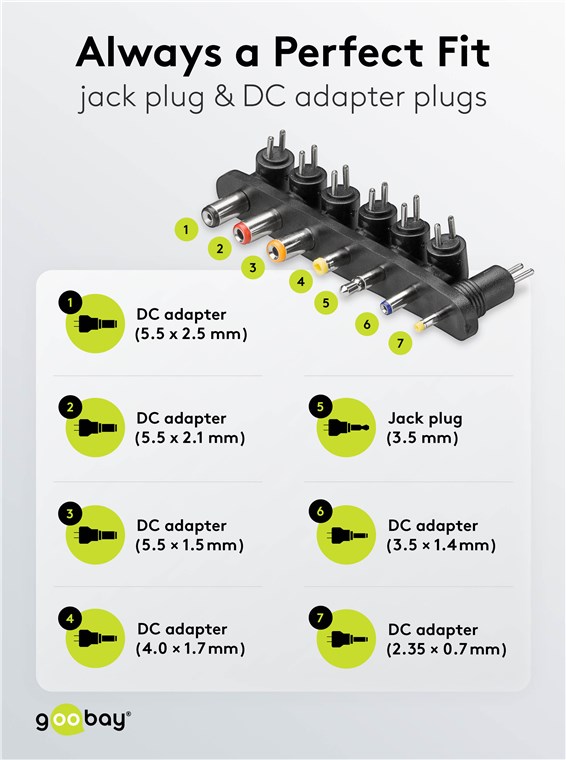

- 7x adapter plugs: 3.5 mm jack plug, DC connector 2.35 mm x 0.70 mm, 3.50 x 1.40 mm, 4.00 x 1.70 mm, 5.50 x 1.50 mm, 5.50 x 2.10 mm, 5.50 x 2.50 mm
- Thanks to the wide-range input from 100 V to 240 V, the multi-voltage power adapter (Euro Plug Type C CEE 7/16) is suitable for use worldwide.
- Fuses in the DC power supply protect against short circuit, overload, overvoltage and overcurrent.
Technical specifications
Performance
Power consumption
24 W
Output
9.0 V max. 1.5 A (13.5 W) DC
12.0 V max. 1.5 A (18.0 W) DC
15.0 V max. 1.5 A (22.5 W) DC
18.0 V max. 1.2 A (21.6 W) DC
20.0 V max. 1.2 A (24.0 W) DC
24.0 V max. 1.0 A (24.0 W) DC
No-load power consumption
0.5 W
Device connections
Input, type
Europlug (Type C CEE 7/16) x in
Output, type
DC female (universal, 2-Pin)
Output, max. amperage
1.5 A
Output, Voltage Step
9, 12, 15, 18, 20, 24 V
voltage stabilization
yes
Input, Voltage Range
100 - 240 (AC) V
Output, max. amperage
1.5 A
Input current
0.7 A
Cable
Cable length
1.6 m
General
Appliance Class
II
Color
black
Markings
CE, WEEE, Haus, Quader
Packaging type
Retail Box
Dimensions / Weight
Length
85.6 mm
Width
69.2 mm
Height
50.5 mm
Weight
186 g
Consumption Unit
1 pc. in cardboard box
Scope of delivery
Notebook adapter
3.5 mm pawl, DC adapter (2,35 x 0,70 mm), DC adapter (3,50 x 1,40 mm), DC adapter (4,00 x 1,70 mm), DC adapter (5,50 x 1,50 mm), DC adapter (5,50 x 2,10 mm), DC adapter (5,50 x 2,50 mm)
accessory - Power supply
Power frequency
60 Hz
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
en, de, fr, it
SCIP
SCIP no.
7228b0ba-0463-4c88-8324-06aa850508f0
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Packing units:
1 / 25 / 50
Item: 54799
EAN: 4040849547997
