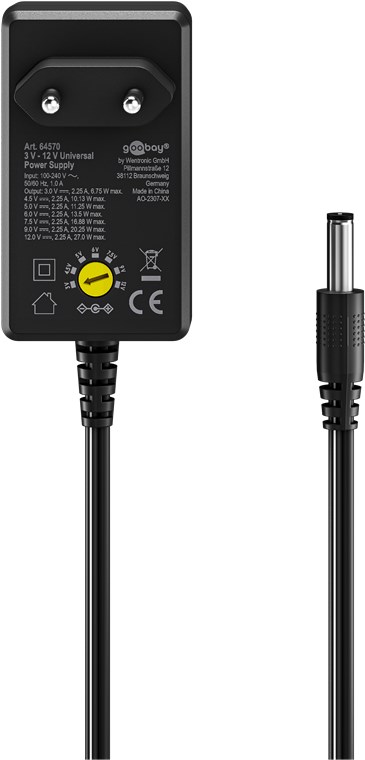

Universal Power Supply 3 V - 12 V, Max. 27 W, 2,25 A

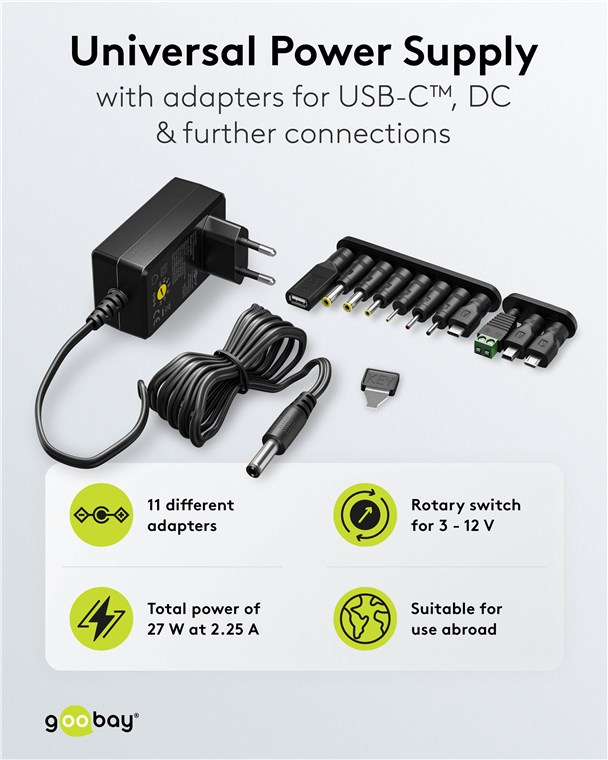

incl. 11 adapters: 7 DC adapters plus USB-C™, USB-A, USB Mini-B, Micro-USB and a screw terminal connection
Universal Power Supply 3 V - 12 V, Max. 27 W, 2,25 A
incl. 11 adapters: 7 DC adapters plus USB-C™, USB-A, USB Mini-B, Micro-USB and a screw terminal connection
Article details

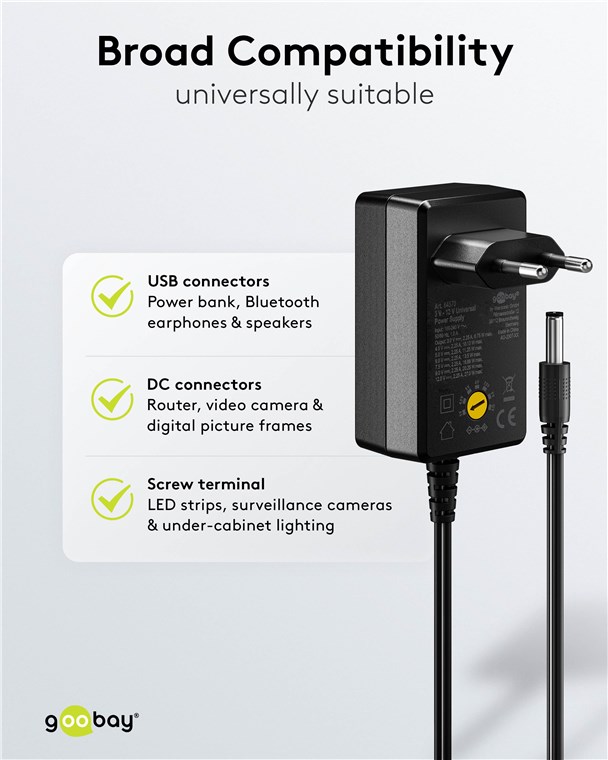

The versatile power supply with the innovative USB tops and interchangeable DC adapters is the handy all-rounder for your small devices. With the adapters and the cutting-edge USB-C™ connector, you always have the right connection for your electronic devices at hand - from radios to routers.
- Power supply with variable voltage, perfect as a replacement unit for electronic devices such as TV box, router, LED strips, video camera, digital picture frame, dartboard, baby monitor or toy

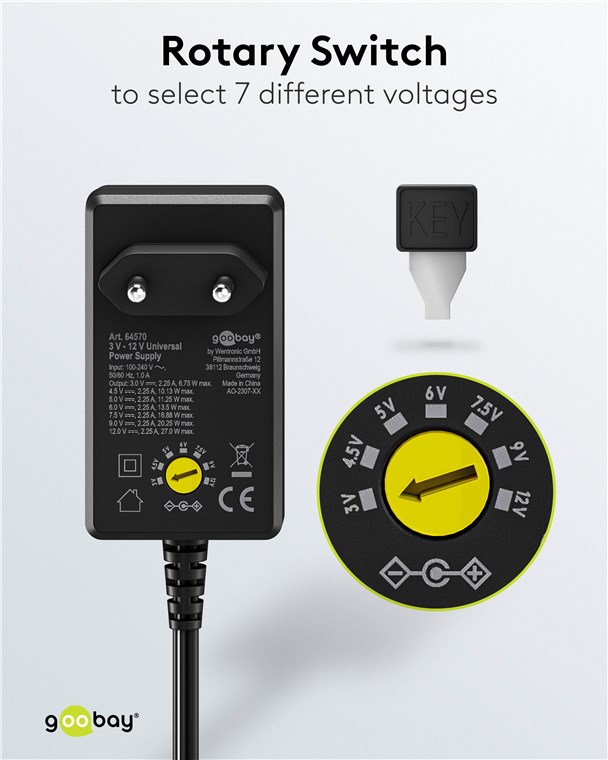

- The output voltage can be regulated via the enclosed rotary key for selecting 3 V/4.5 V/5 V/6 V/7.5 V/9 V/12 V at 2.25 A
- The USB-C™ adapter serves a wide range of new devices and, as a new hardware standard, makes the switching power supply a viable, long-term option
- Micro-USB and Mini-USB power many small devices such as portable radios, battery chargers, Bluetooth speakers or headphones

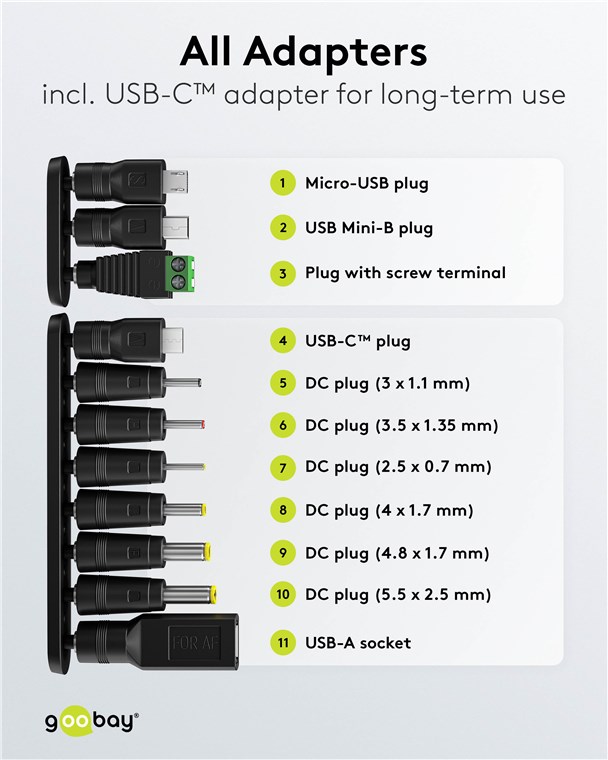

- Incl. permanently attached DC plug 5.5 x 2.1 mm and 6 additional DC adapters: 5.5 x 2.5 mm, 2.5 x 0.7 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 4.0 x 1.7 mm, 4.8 x 1.7 mm
- With the interchangeable DC adapters, the 12 V power supply unit with Europlug (CEE 7/16) eliminates the need to purchase additional chargers

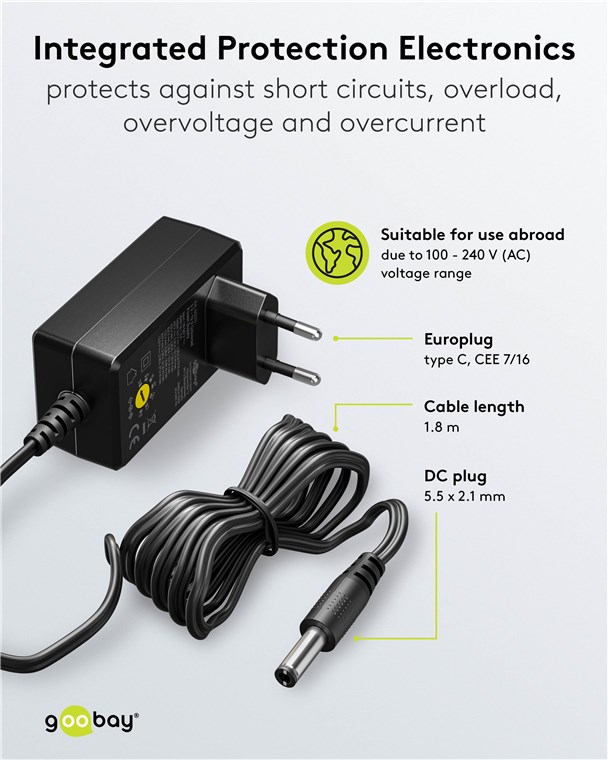

- Fuses in the plug-in power supply protect the device against short circuits, overload, overvoltage and overcurrent
Technical specifications
ErP
Average active efficiency
81 %
Efficiency at low load (10 %)
71.8 %
No-load power consumption
0.08 W
Performance
max. performance
27 W
Output
3.0 V max. 2.25 A (6.75 W) DC
4.5 V max. 2.25 A (10.13 W) DC
5.0 V max. 2.25 A (11.25 W) DC
6.0 V max. 2.25 A (13.5 W) DC
7.5 V max. 2.25 A (16.88 W) DC
9.0 V max. 2.25 A (20.25 W) DC
12.0 V max. 2.25 A (27.0 W) DC
max. performance
27.0 W
Device connections
Input, type
Europlug (Type C CEE 7/16) x in
Output, max. amperage
2.25 A
Input, Voltage Range
100 - 240 (AC) V
Output, max. amperage
2.3 A
Input current
1.0 A
Cable
Cable length
1.8 m
General
Color
black
Markings
CE, WEEE, Haus, Quader
Packaging type
Brown Box with Label
Dimensions / Weight
Length
76.45 mm
Width
44 mm
Height
69.2 mm
Weight
105 g
Consumption Unit
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
Downloads
Packing units:
1 / 20 / 40
Item: 64570
EAN: 4040849645709
