Goobay

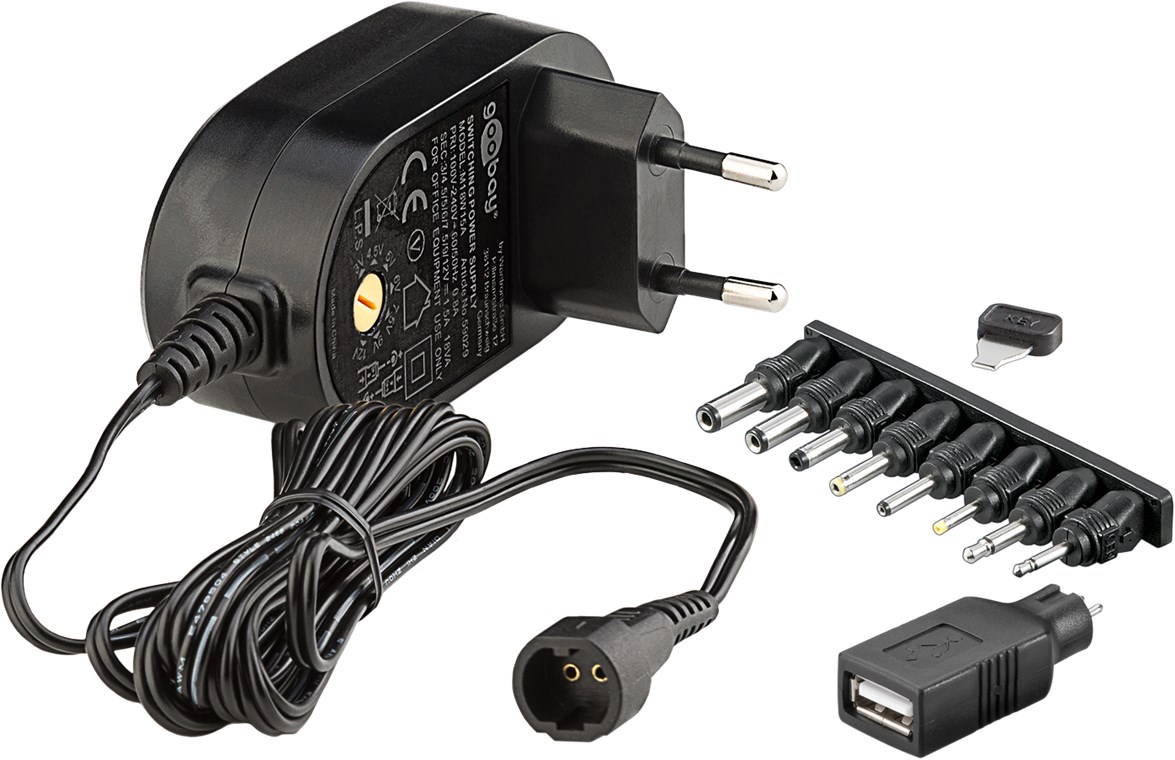

Universal Power Supply (3V-12V max. 18W / 1,5A)
incl. 1x USB and 8x DC adapters
/2
Product and packaging similar. Subject to modifications and errors.
Goobay
Universal Power Supply (3V-12V max. 18W / 1,5A)
incl. 1x USB and 8x DC adapters
Article details
  • Switching power supply for charging and operating DC devices such as video cameras, routers, scanners, radios, cross trainers, dart boards, baby monitors or toys
  • Thanks to the exchangeable USB socket and jack plugs, the universal power adaptor eliminates the need for additional chargers and adapters.
  • The output voltage can be set at 3 V/4.5 V/5 V/6 V/7,5 V/9 V/12 V at 1.5 A with the help of the adjusting wheel.
  • The voltage is easily adjustable with the enclosed key.
  • 8x adapter plugs: 2.5 mm jack plug, 3.5 mm jack plug, DC connector 3.50 x 1.35 mm, 4.00 x 1.70 mm, 5.00 x 2.10 mm, 5.50 x 1.50 mm, 5.50 x 2.10 mm, 5.50 x 2.50 mm
  • Thanks to the wide-range input from 100 V to 240 V, the multi-voltage laptop charger (Euro Plug Type C CEE 7/16) is suitable for use worldwide.
  • Fuses in the DC power supply protect against short circuit, overload, overvoltage and overcurrent.
Technical specifications
Performance
Power consumption
18 W
Security Functions
Short circuit, Overheating, Overloading, Overcurrent
Output

3.0 V max. 1.5 A (4.5 W) DC

4.5 V max. 1.5 A (6.75 W) DC

5.0 V max. 1.5 A (7.5 W) DC

 6.0 V max. 1.5 A (9.0 W) DC

 7.5 V max. 1.5 A (11.25 W) DC

 9.0 V max. 1.5 A (13.5 W) DC

12.0 V max. 1.5 A (18.0 W) DC

No-load power consumption
0.1 W
Device connections
Input, type
Europlug (Type C CEE 7/16) x in
Output, type
DC female (universal, 2-Pin)
Output, max. amperage
1.5 A
Output, Voltage Step
3, 4,5, 5, 6, 7,5, 9, 12 V
voltage stabilization
yes
Input, Voltage Range
100 - 240 (AC) V
Output, max. amperage
1.5 A
Input current
0.8 A
Cable
Cable length
1.8 m
General
Color
black
Markings
CE, WEEE, Haus, Quader, RoHS, EUP
Packaging type
Retail Box
Dimensions / Weight
Length
83.8 mm
Width
44.5 mm
Height
50.2 mm
Weight
158 g
Consumption Unit
1 pc. in cardboard box
Scope of delivery
Notebook adapter
2.5 mm pawl, 3.5 mm pawl, DC adapter (3,50 x 1,35 mm), DC adapter (4,00 x 1,75 mm), DC adapter (5,00 x 2,10 mm), DC adapter (5,50 x 1,50 mm), DC adapter (5,50 x 2,50 mm), USB 2.0
accessory - Power supply
Power frequency
60 Hz
Efficiency at low load (10 %)
69.1 %
Average active efficiency
77.8 %
Language Scope
Operation manual
en, de, fr, it
packaging
en, de, fr, it
Downloads
Declaration of conformity pdf Instruction Manual pdf
Packing units:
1 / 140
Item: 59029
EAN: 4040849590290
