Goobay
Universal Power Supply (3V-12V max. 12W / 1,0A)
incl. 1x USB and 8x DC adapters
Bestseller
/5
Product and packaging similar. Subject to modifications and errors.
Goobay
Universal Power Supply (3V-12V max. 12W / 1,0A)
incl. 1x USB and 8x DC adapters
Article details
  • Switching power supply for charging and operating DC devices such as video cameras, routers, scanners, radios, dart boards, baby monitors or toys
  • Thanks to the exchangeable USB socket and jack plugs, the universal power adaptor eliminates the need for additional chargers and adapters.
  • The output voltage can be set at 3 V/4.5 V/5 V/6 V/7.5 V/9 V/12 V at 1 A with the help of the adjusting wheel.
  • The voltage is easily adjustable with the enclosed key.

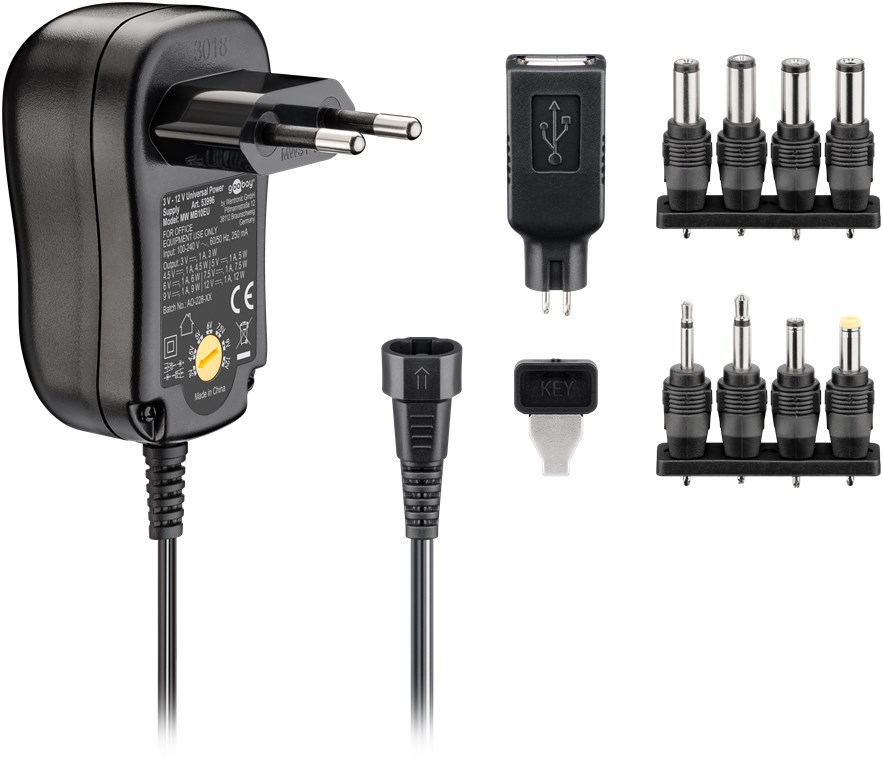

  • 9x adapter plugs: 2.5 mm jack plug, 3.5 mm jack plug, DC connector 3.50 x 1.35 mm, 4.00 x 1.70 mm, 5.00 x 2.10 mm, 5.50 x 1.50 mm, 5.50 x 2.10 mm, 5.50 x 2.50 mm, USB 2.0
  • Thanks to the wide-range input from 100 V to 240 V, the multi-voltage laptop charger (Euro Plug Type C CEE 7/16) is suitable for use worldwide.
  • Fuses in the DC power supply protect against short circuit, overload, overvoltage and overcurrent.
Technical specifications
Performance
Power consumption
12 W
max. performance
12 W
Security Functions
Short circuit, Overheating, Overloading, Overcurrent
Output

3.0 V max. 1.0 A (3.0 W) DC

4.5 V max. 1.0 A (4.5 W) DC

5.0 V max. 1.0 A (5.0 W) DC

 6.0 V max. 1.0 A (6.0 W) DC

 7.5 V max. 1.0 A (7.5 W) DC

 9.0 V max. 1.0 A (9.0 W) DC

12.0 V max. 1.0 A (12.0 W) DC

No-load power consumption
0.3 W
max. performance
12.0 W
Device connections
Input, type
Europlug (Type C CEE 7/16) x in
Input, Voltage Range
100 - 240 (AC) V
Output, Voltage Step
4,5, 5, 6, 7,5, 9, 12, 3 V
voltage stabilization
yes
Output, type
DC female (universal, 2-Pin)
Output, max. amperage
1 A
Output 3, max. amperage
0 A
Output 3, max. amperage
0.0 mA
Output, max. amperage
1.0 A
Output 3, max. amperage
0.0 A
Cable
Cable length
1.8 m
General
Color
black
Markings
CE, WEEE, Haus, Quader
Packaging type
Retail Box
Dimensions / Weight
Length
76.5 mm
Width
42.4 mm
Height
72.2 mm
Weight
140 g
Consumption Unit
1 pc. in cardboard box
Scope of delivery
Notebook adapter
2.5 mm pawl, 3.5 mm pawl, DC adapter (3,50 x 1,35 mm), DC adapter (4,00 x 1,70 mm), DC adapter (5,00 x 2,10 mm), DC adapter (5,50 x 1,50 mm), DC adapter (5,50 x 2,10 mm), DC adapter (5,50 x 2,50 mm), USB 2.0
accessory - Power supply
Power frequency
60 Hz
Efficiency at low load (10 %)
67.2 %
Average active efficiency
72.5 %
Language Scope
Operation manual
de, en, fr, it
SCIP
SCIP no.
9bc796cf-f7df-4c04-8e29-95335cf1d5e3
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Declaration of conformity pdf Instruction Manual pdf
£13.99 RRP
Packing units:
1 / 20 / 40
Item: 53996
EAN: 4040849539961
