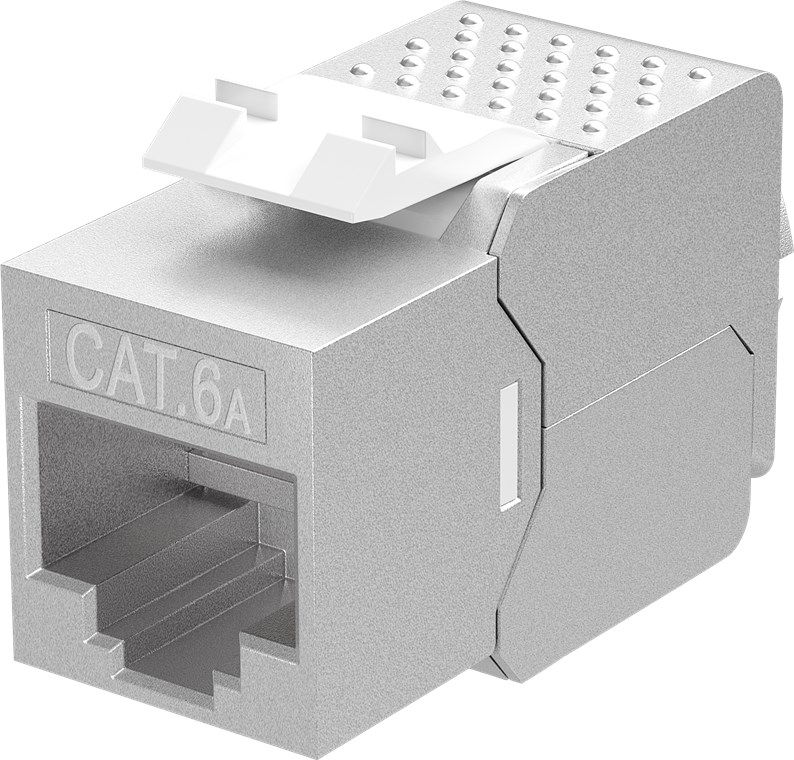

Keystone Module RJ45 CAT 6A, STP, Slim-Line
14.7 mm wide, 180° cable outlet, crocodile type, for IDC connection (toolless)
Keystone Module RJ45 CAT 6A, STP, Slim-Line
14.7 mm wide, 180° cable outlet, crocodile type, for IDC connection (toolless)
Article details
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- RJ45 jack socket with robust zinc-alloy housing for a perfect transmission of electrical signals
- LAN jack socket with STP shield for interference-free signal transmission
- Commonly used in network installations and for the assembly of permanently installed network cables
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
- Suitable for 10 Gigabit Ethernet applications and Power over Ethernet (PoE+) according to IEEE 802.3at
- RJ45 socket for termination with CAT 6A cables

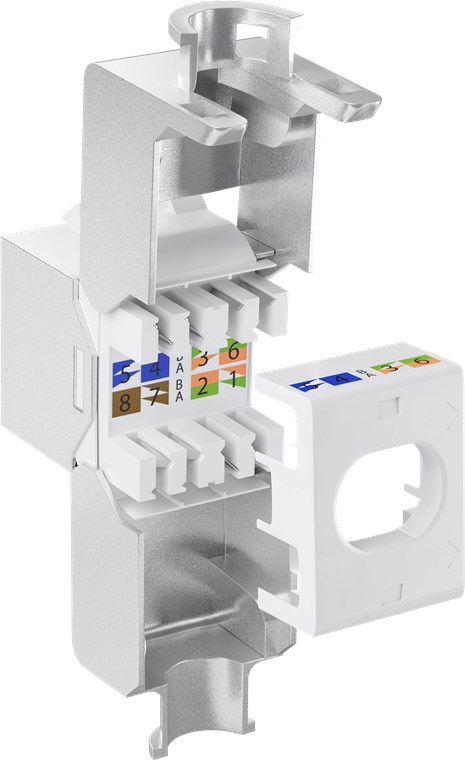

- RJ45 connections are TIA 568A/B colour-coded
| AWG | 22-26（0.4-0.65mm) |
| For cable diameter from | 5.0 - 8.5 mm |
| TIA-568 A/B pinout | TIA-568 A/B |
| PoE and PoE Plus according to IEEE802.3af/at | yes |
Technical specifications
Connections
Connection, type
RJ45 female (8P8C)
Connection 2, type
for IDC connection (toolless)
construction form
180° cable outlet, crocodile type
Cable
Specification
CAT 6A
Shielding class
STP
Signal transmission
max. bandwidth
500 MHz
General
Packaging type
Bulk

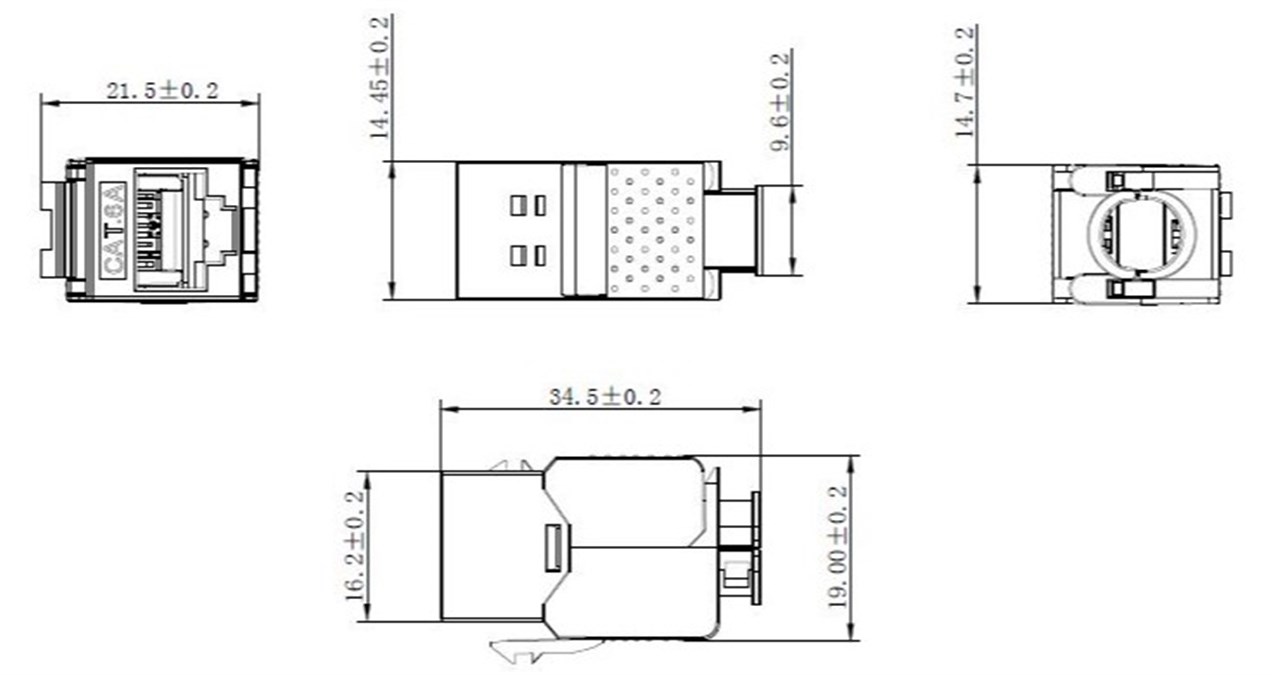

Dimensions / Weight
Consumption Unit
1 pc. in polybag
Length
34.5 mm
Width
14.7 mm
Height
21.5 mm
Downloads
Packing units:
1 / 50 / 250
Item: 79448
EAN: 4040849794483
