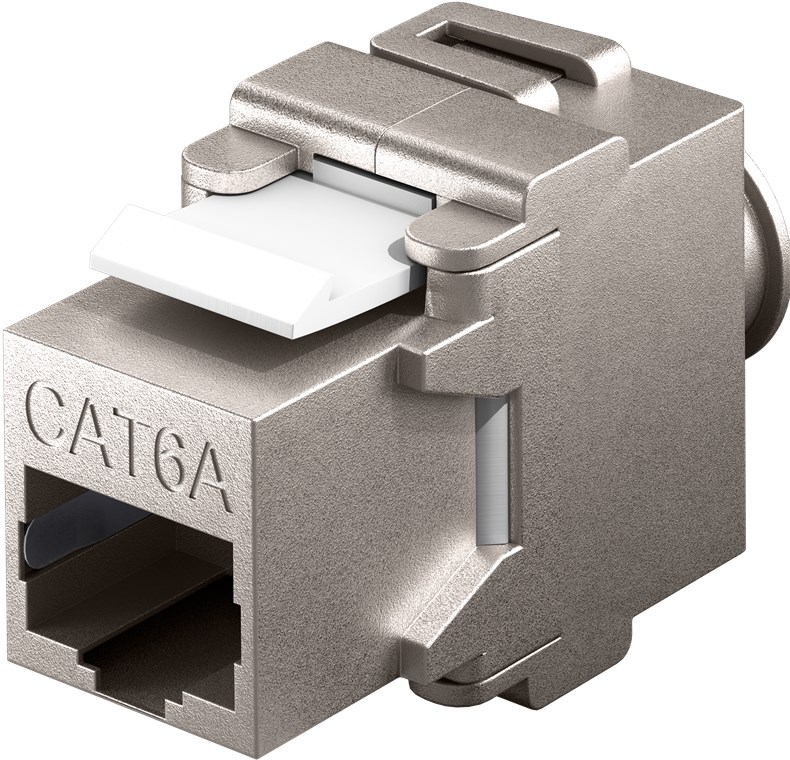

Keystone Module RJ45 CAT 6A, STP

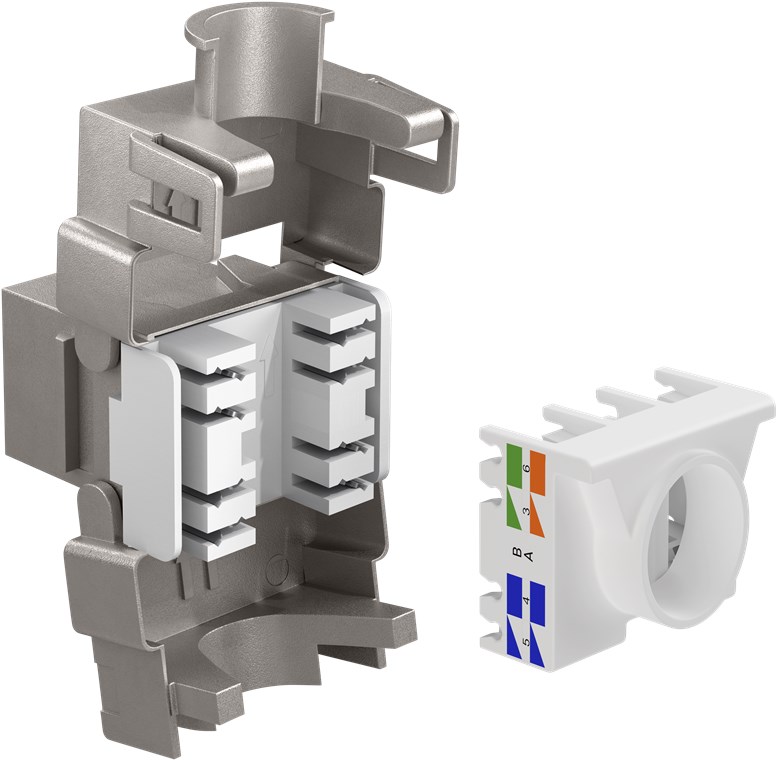

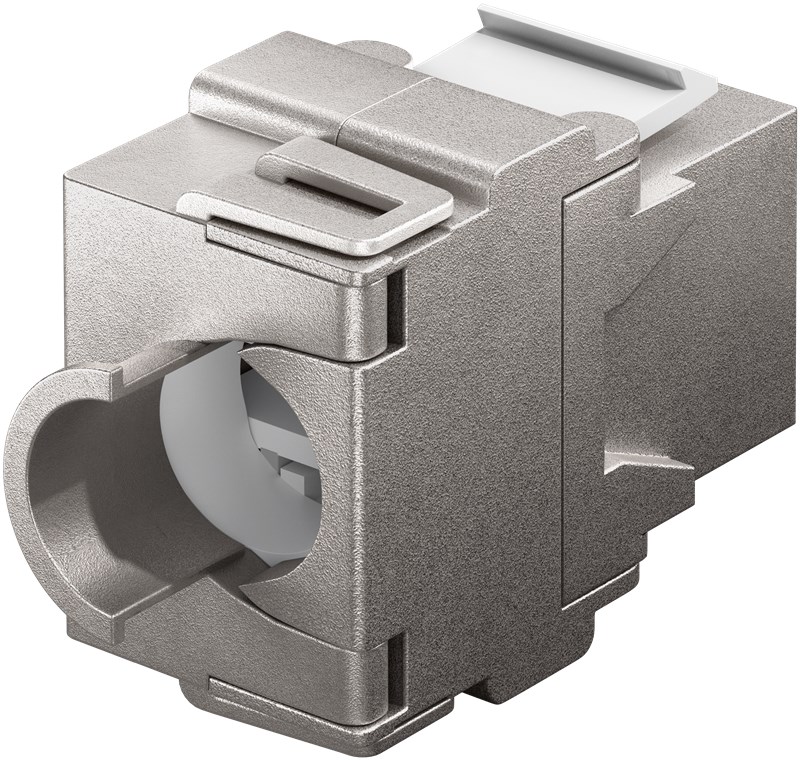

17.1 mm wide, 180° cable outlet, butterfly type, for IDC connection (toolless)
Keystone Module RJ45 CAT 6A, STP
17.1 mm wide, 180° cable outlet, butterfly type, for IDC connection (toolless)
Article details
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- RJ45 female connector with robust zinc-alloy housing for a perfect transmission of electrical signals
- Suitable for 10 Gigabit Ethernet applications and Power over Ethernet (PoE+) according to IEEE 802.3at
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings. Not suitable for Keystone empty cases 79355, 79366, 79376, 79379 and 79426.
- RJ45 socket for termination with CAT 6A cables
- Commonly used in network installations and for the assembly of permanently installed network cables
- LAN jack socket with strain relief by cable tie
- RJ45 connections are TIA 568A/B colour-coded
| AWG | solid wire 22-26AWG |
| For cable diameter from | 5.00 -9.00 mm |
| TIA-568 A/B pinout | TIA-568 A/B |
| PoE and PoE Plus according to IEEE802.3af/at | Yes |
Technical specifications
Connections
Connection, type
RJ45 female (8P8C)
Connection 2, type
for IDC connection (toolless)
construction form
180° cable outlet, butterfly type
Contacting
EIA/TIA-568 A/B
Cable
Specification
CAT 6A
Cable type
for solid or stranded wire
Shielding class
STP
Signal transmission
max. bandwidth
500 MHz
General
Packaging type
Bulk
Dimensions / Weight
Length
41.7 mm
Width
17.1 mm
Height
26.5 mm
Consumption Unit
1 pc. in polybag
Language Scope
Operation manual
de, en
Downloads
Packing units:
1 / 25 / 250
Item: 95900
EAN: 4040849959004
