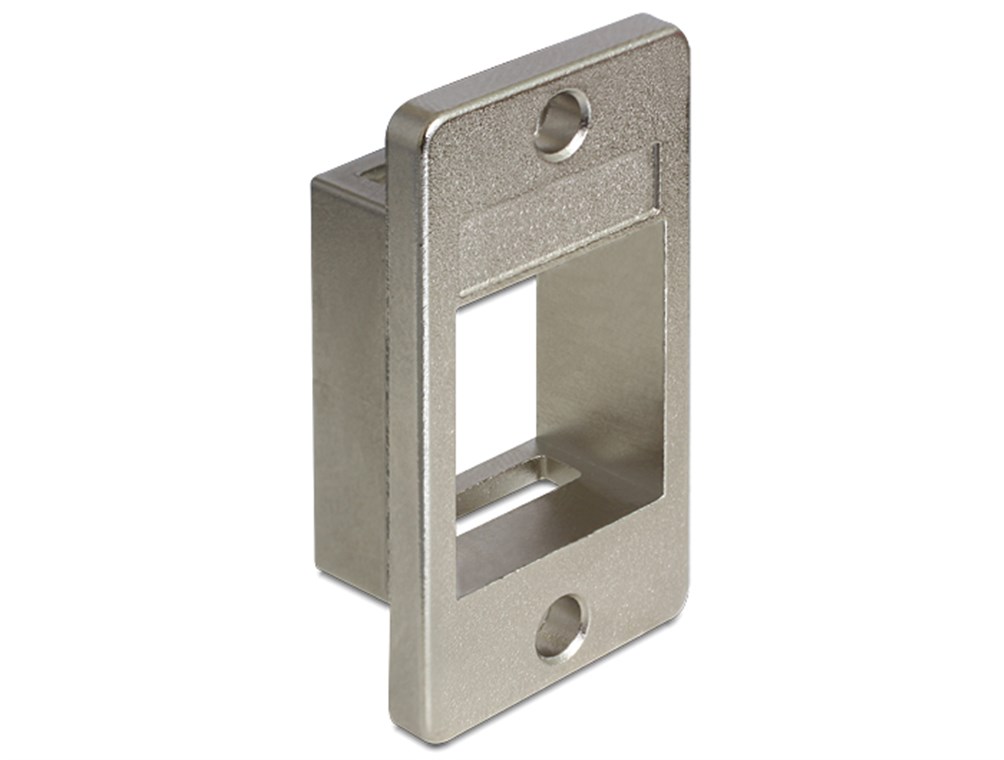

Keystone Holder/Bezel for Device Installation
suitable for 19.2 x 14.9Â mm Keystone port
Product and packaging similar. Subject to modifications and errors.
Keystone Holder/Bezel for Device Installation
suitable for 19.2 x 14.9Â mm Keystone port
Article details
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- The Keystone frame can be installed in housings and is suitable for easy snap-in mounting of individual Keystone modules.
- Integrated labelling field for clear structuring of the connectors.
- Keystone mount made of robust die-cast zinc
- Comes with 2 pilot holes for fastening with screws at a distance of 28.9 mm

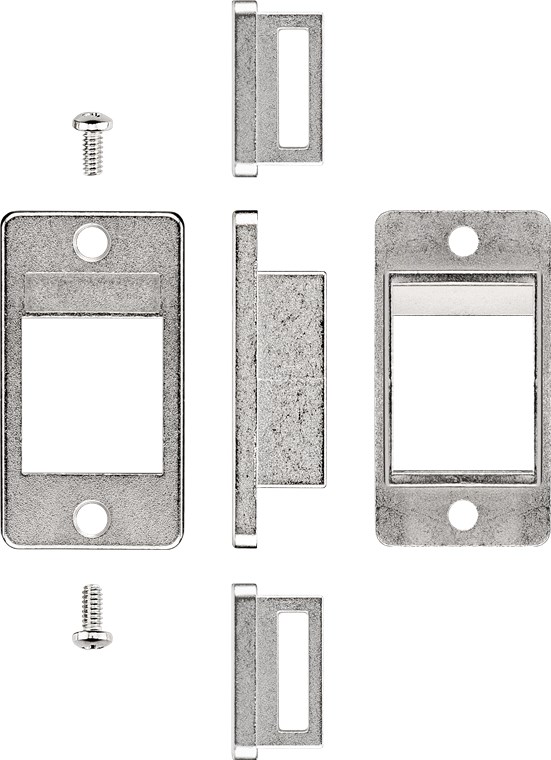

- Scope of delivery includes 2x screws for fastening
Technical specifications
Connections
construction form
Keystone grid (14,9 x 17,0 mm)
General
Material
zinc die-cast
Packaging type
Bulk

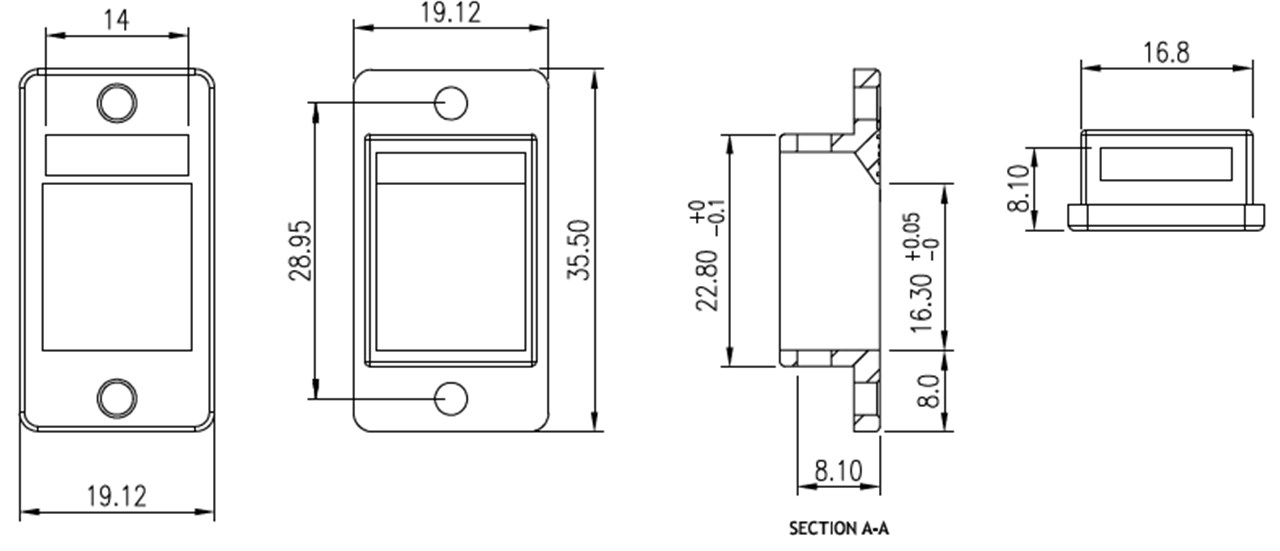

Dimensions / Weight
Length
35.5 mm
Width
19.8 mm
Height
9.1 mm
Downloads
Packing units:
1 / 50 / 500 / 1000
Item: 79883
EAN: 4040849798832
