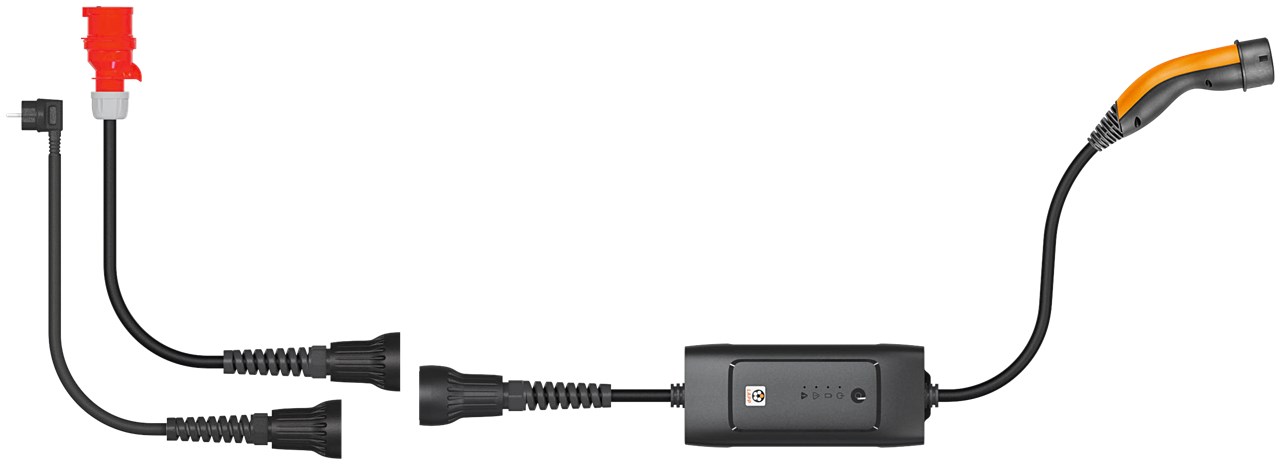

Charging Station Universal Set, Type 2, up to 22 kW, 6 m

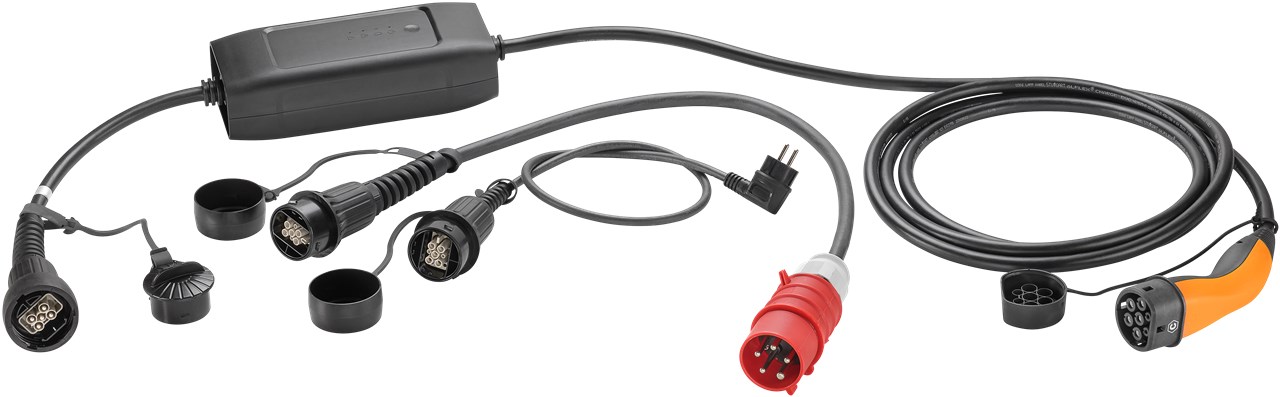

(5555924002) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection, incl. 2 adapters
Charging Station Universal Set, Type 2, up to 22 kW, 6 m
(5555924002) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection, incl. 2 adapters
Article details

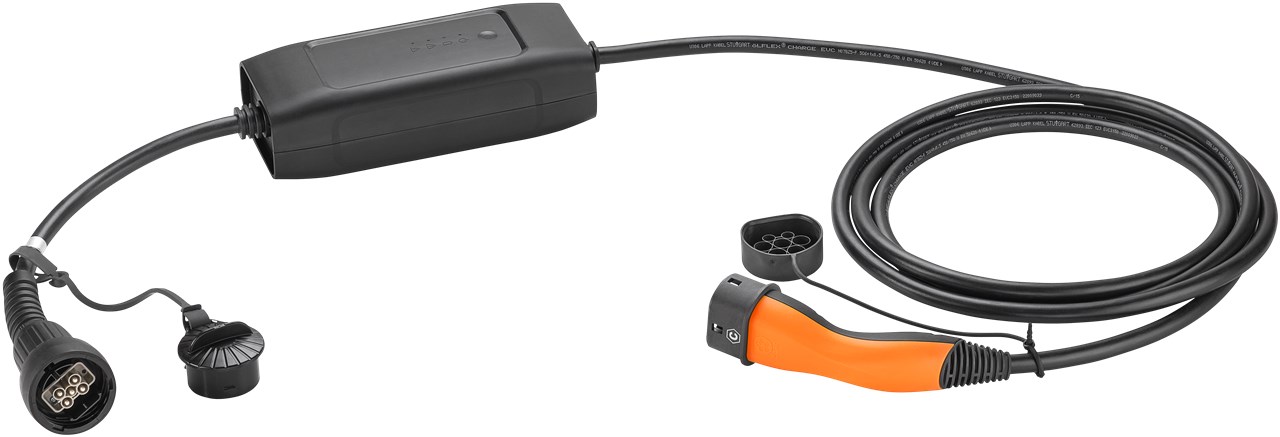

The LAPP Charging Station Universal charges your electric vehicle via a range of sockets - for easy charging at home or on the road. Simply attach the required LAPP charging adapter to the connection point on the cable. Suitable for handy use with household sockets or one-phase and three-phase CEE sockets, e.g. in hotels, workshops and in the agricultural sector.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
Matching adapters: 64703, 64704, 64706, 64707
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
Matching adapters: 64703, 64704, 64706, 64707

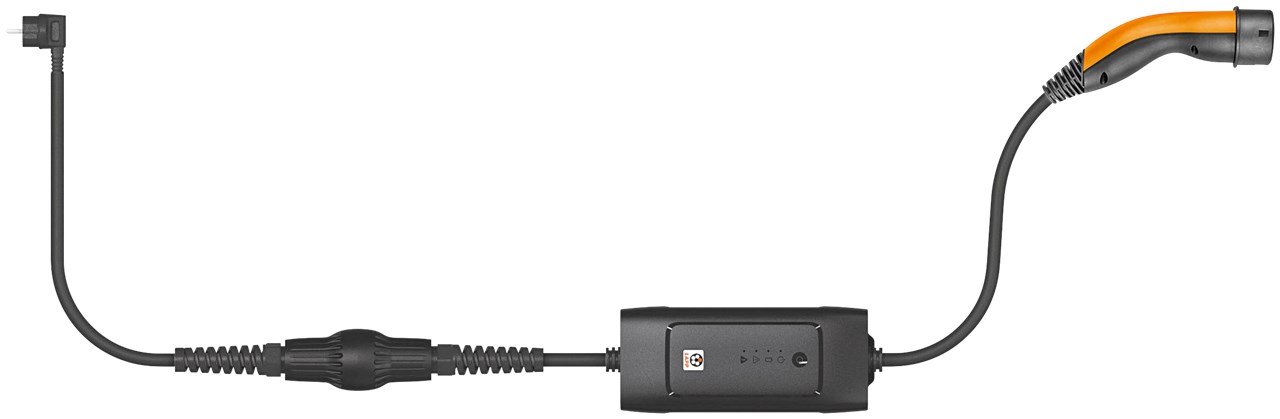

- The LAPP Mode 2 charger with vehicle-side Type 2 coupling and interchangeable mains adapters provides highly flexible mobile charging - in the garage at home and on the road
- Ideal for charging with up to 22 kW from household sockets (type E/F, CEE 7/3) or at CEE industrial sockets, e.g. in hotels, workshops and in the agricultural sector.

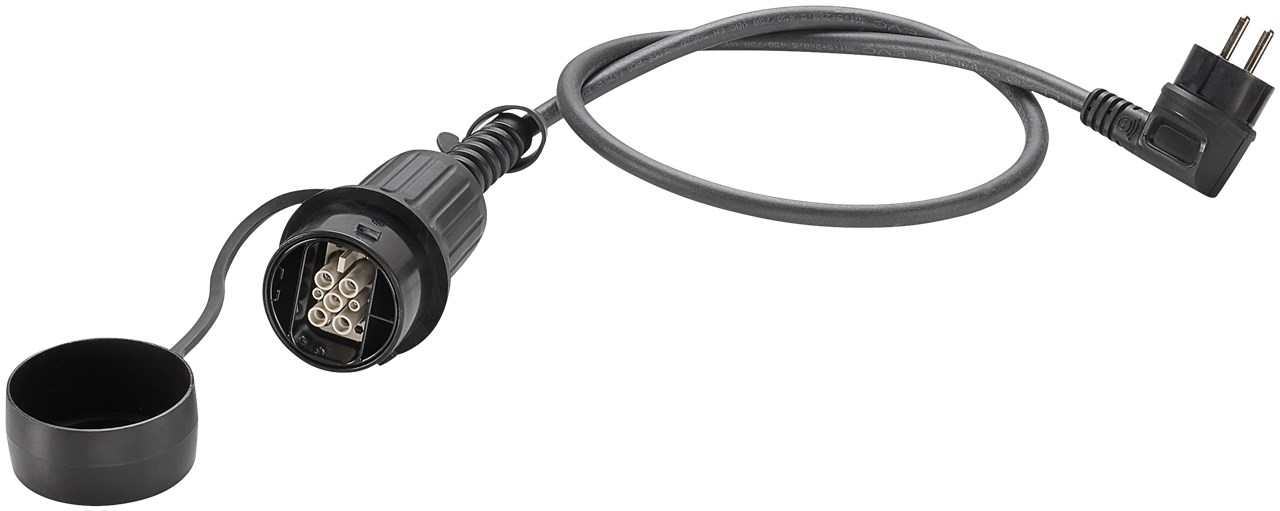

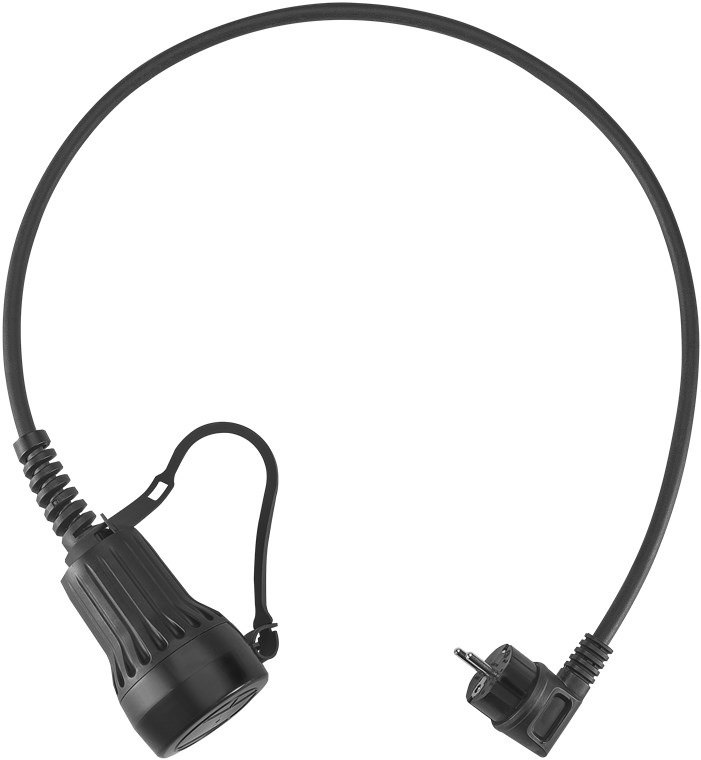

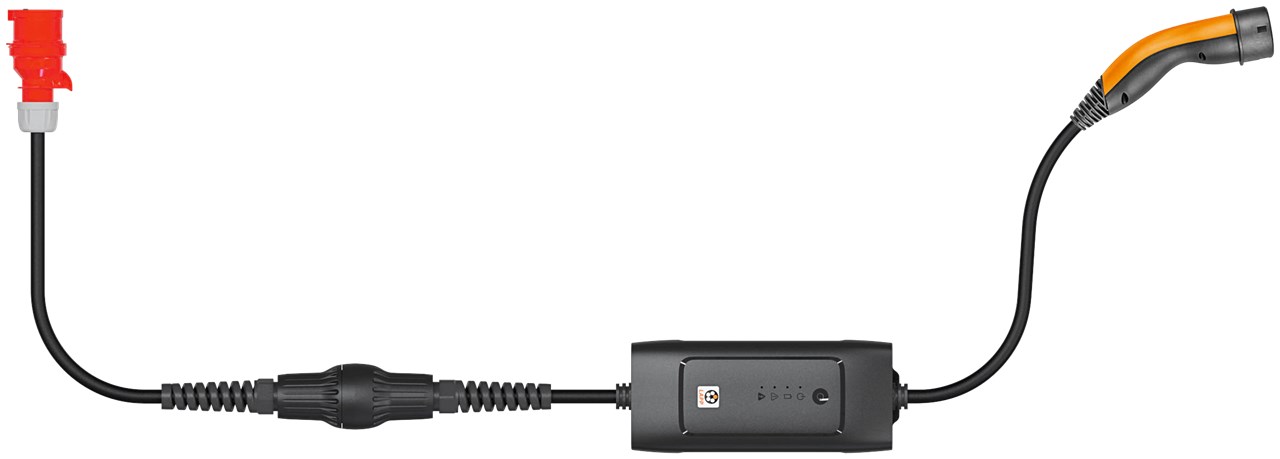

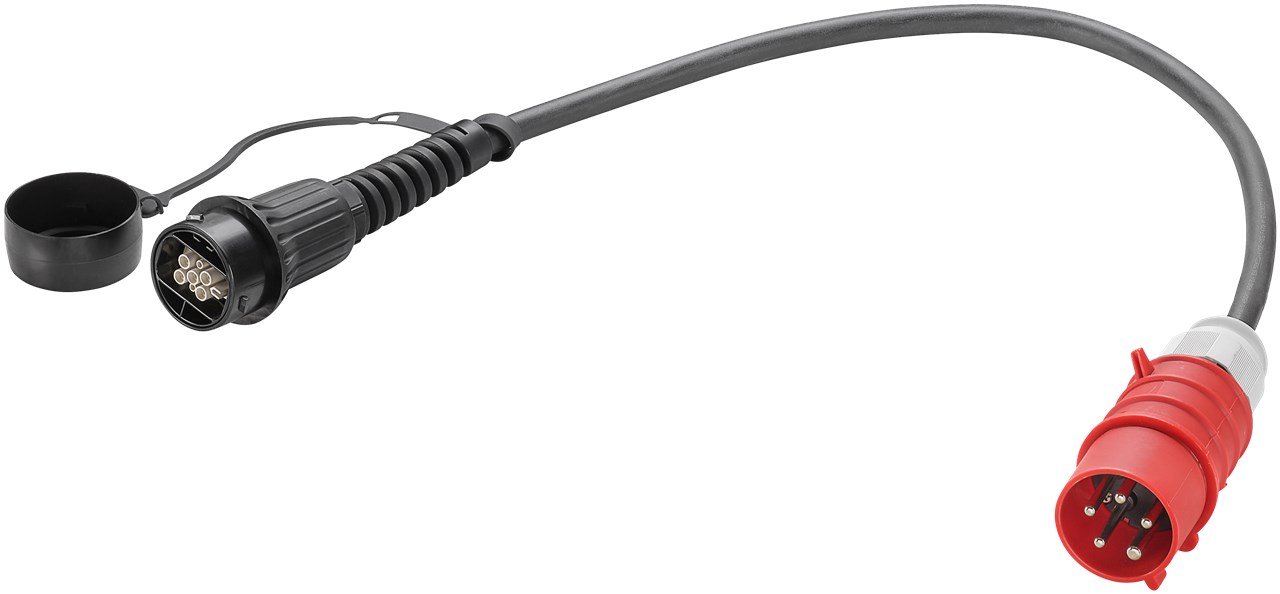

- On the mains side, the multi-function cable terminates in a CEE socket for connecting the two enclosed adapter cables with safety plug Type E/F and 3-phase CEE plug (1-phase CEE plug available separately)
- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
- Cover caps on all couplings protect against the ingress of dust, dirt and water in between charges
- EV charging cable for safe, stable charging at a nominal voltage of 110-400 V, operating temperature -25 °C to 45 °C
- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)
Dimensions control box (IC-CPD): 320 x 124 x 84 mm
The mobile LAPP Mode 2 charging stations automatically recognise which plug-in charging adapter is being used and the electronics regulate the possible maximum charging power. The interchangeable LAPP plug-in charging adapters are resistance-coded and thus the possible maximum charging power is regulated by the electronics.
Technical specifications
Connections
Connection, type

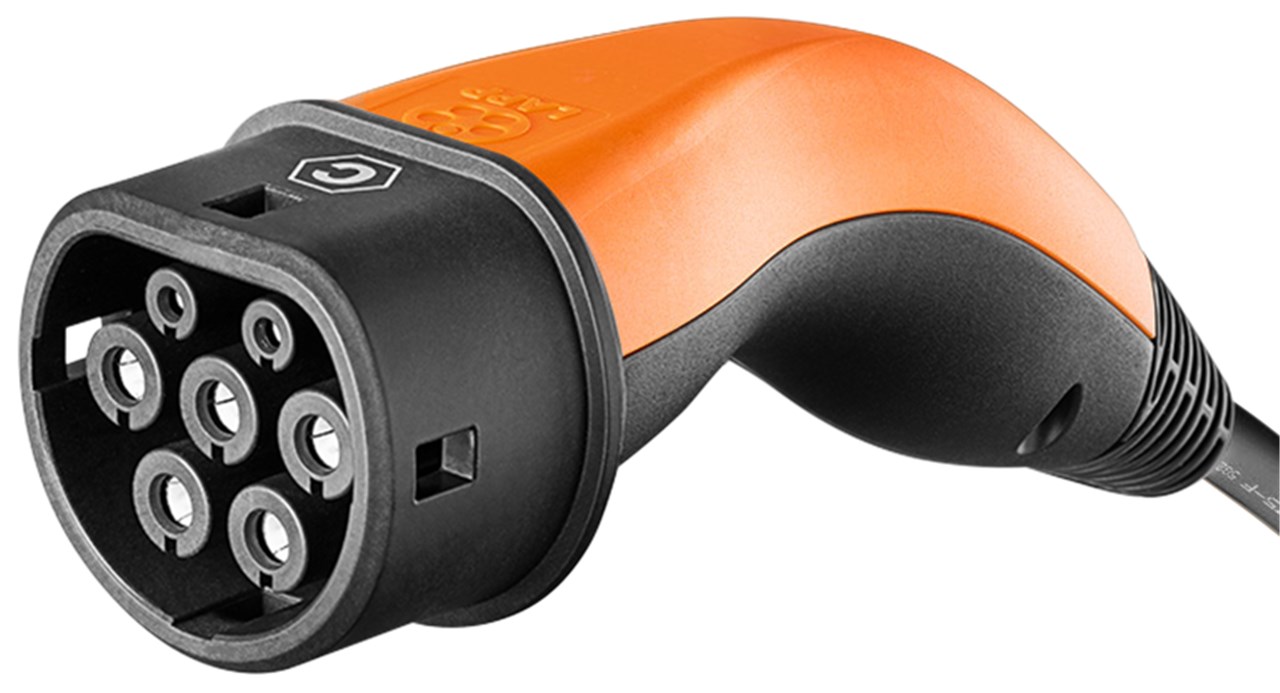

type 2 female plug
Connection 2, type
safety plug hybrid (type E/F, CEE 7/7)
Connection 3, type

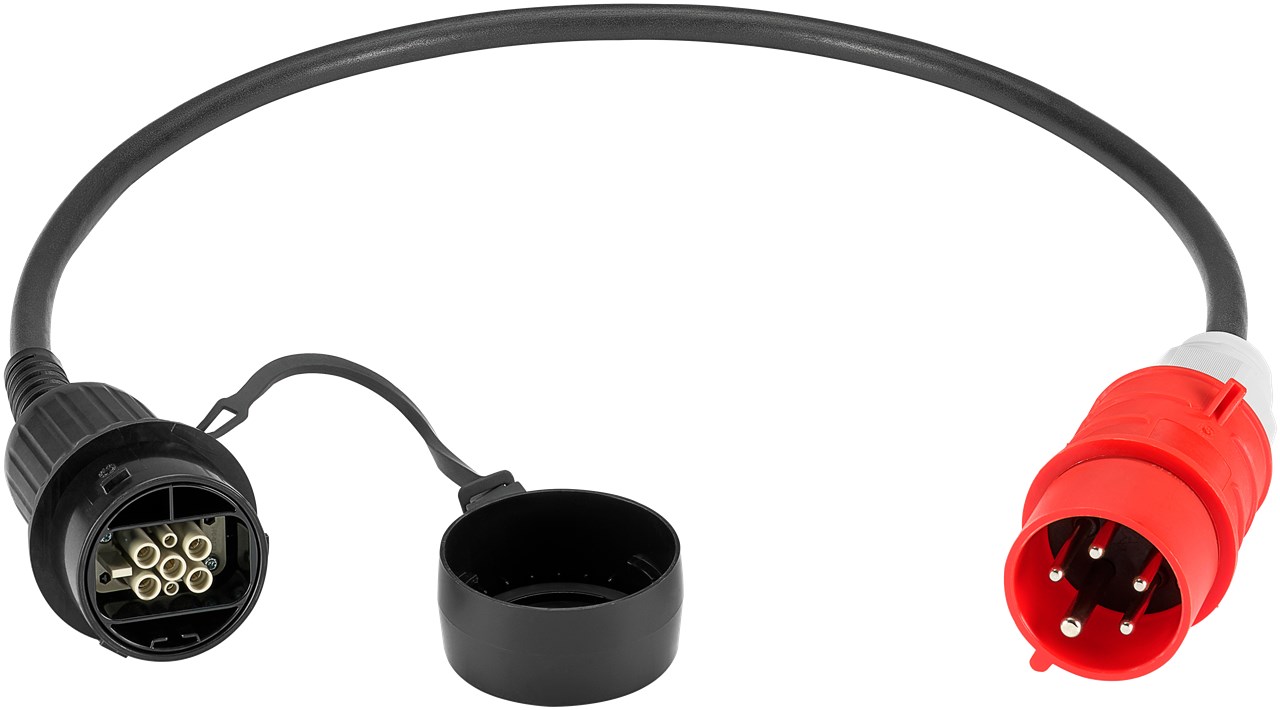

CEE plug red, 5-pole 3ph/32 A
Performance
Loading capacity up to
22 kW
Charging mode

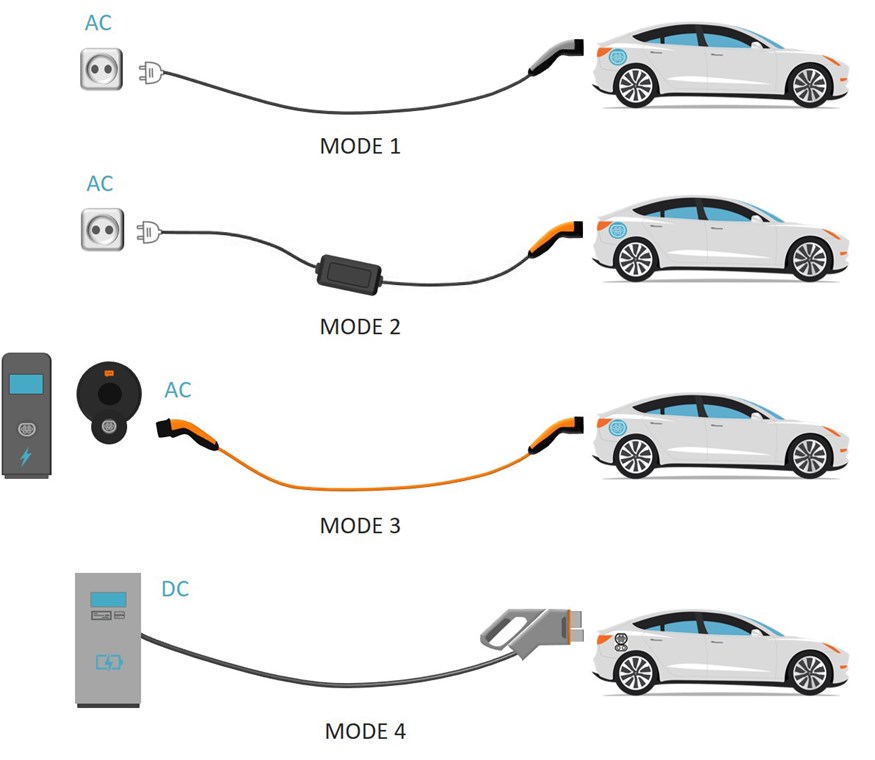

Mode 2
Rated voltage
440 V (AC)
max current capacity
32 A
Cable
Number of phases
3
Inner conductor cross-section
6 mm²
Cable length
6 m
Cable type
smooth cable
Material cable sheath
ÖLFLEX®CHARGE
General
Model designation
5555924002
Color
black
Markings
WEEE, CE
Operating temperature from
-25 °C
Operating temperature up to
45 °C
Packaging type
Retail Box
