Mobile Charging Station Basic, Type 2, CEE, up to 22 kW, 6 m
(5555921000) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
Product and packaging similar. Subject to modifications and errors.
Mobile Charging Station Basic, Type 2, CEE, up to 22 kW, 6 m
(5555921000) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
Article details
The LAPP Charging Station Basic directly connects your EV to the power source - providing full flexibility via CEE plug. Simply connect the Type 2 coupling of the cable to the car and the plug to the socket. The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
- The LAPP Mode 2 charger provides simple, mobile charging via CEE sockets and is ideal in the garage at home or on the road
- Ideal for charging with up to 22 kW from 3-phase CEE industrial sockets, e.g. in hotels, workshops and in the agricultural sector
- Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
- Cover caps on the plug and coupling protect against the ingress of dust, dirt and water in between charges
- Oil-resistant EV charging cable at a nominal voltage of 110-400 V (AC) and an operating temperature of -25 °C to 45 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)

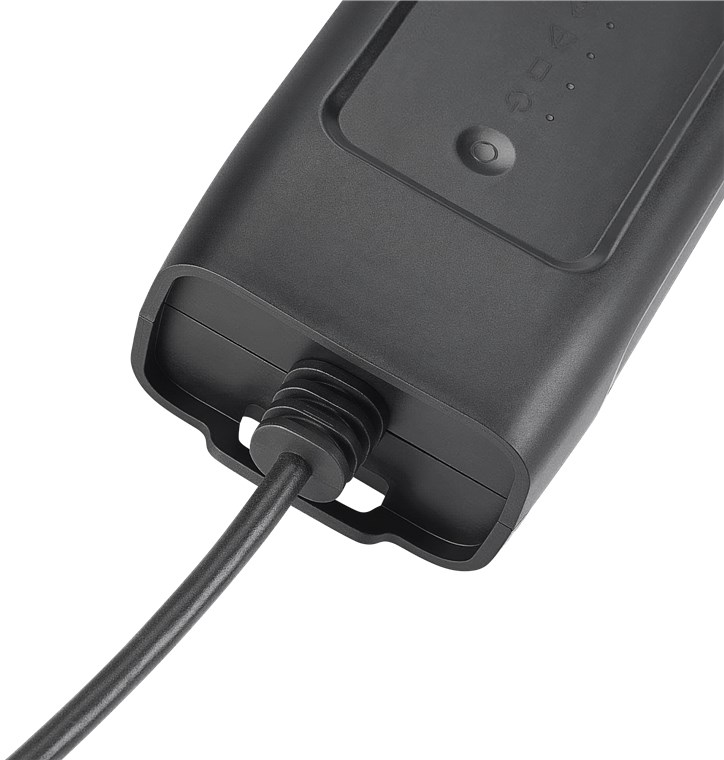

Dimensions control box (IC-CPD): 320 x 124 x 84 mm
Technical specifications
Connections
Connection, type

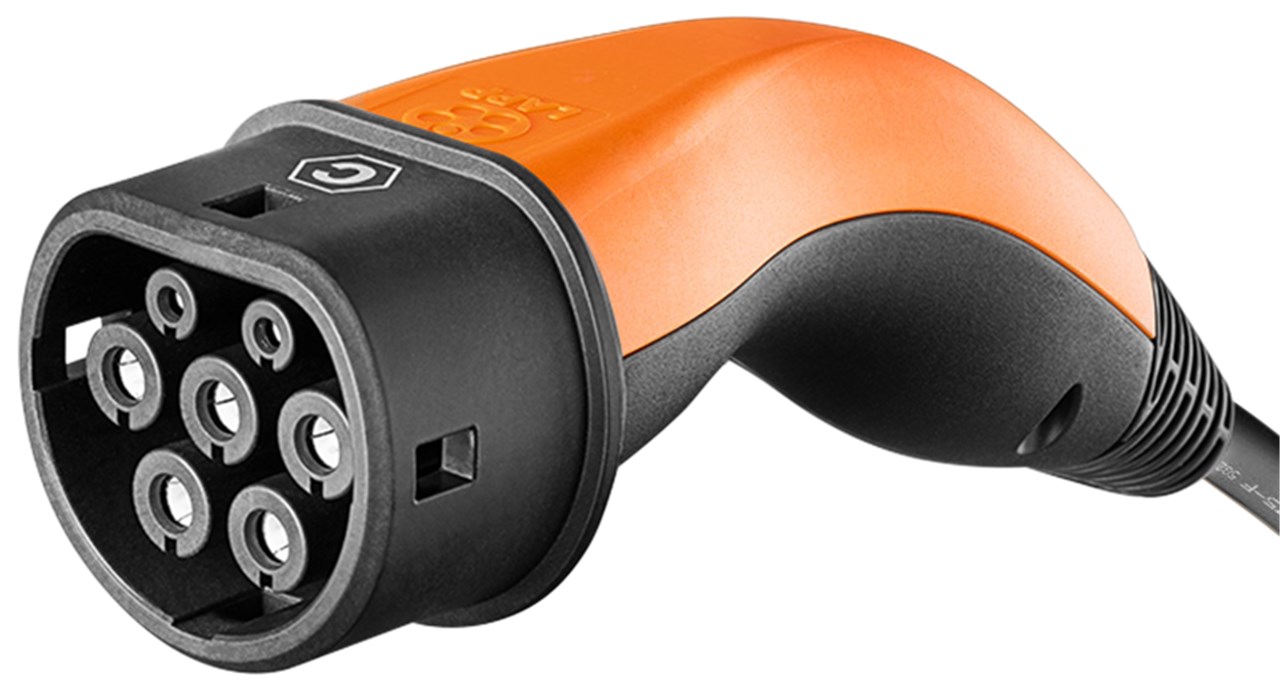

type 2 female plug
Connection 2, type
CEE plug red, 5-pole 3ph/32 A
Performance
Loading capacity up to
22 kW
Charging mode
Mode 2
Rated voltage
440 V (AC)
max current capacity
32 A
Cable
Number of phases
3
Cable type
smooth cable
Material cable sheath
ÖLFLEX®CHARGE
Cable length
6 m
Inner conductor cross-section
6 mm²
General
Model designation
5555921000
Color
black
Markings
WEEE, CE
Operating temperature from
-25 °C
Operating temperature up to
45 °C
Packaging type
Retail Box
SCIP
SCIP no.
3a4e482d-e540-4f53-809f-2c47435e56ba
chemical substance
Pb, Dechlorane Plus
CAS no.
7439-92-1 | 13560-89-9
Downloads
Packing units:
1 / 28
Item: 64696
EAN: 4056158850871
