£417.99 RRP
Item: 64693

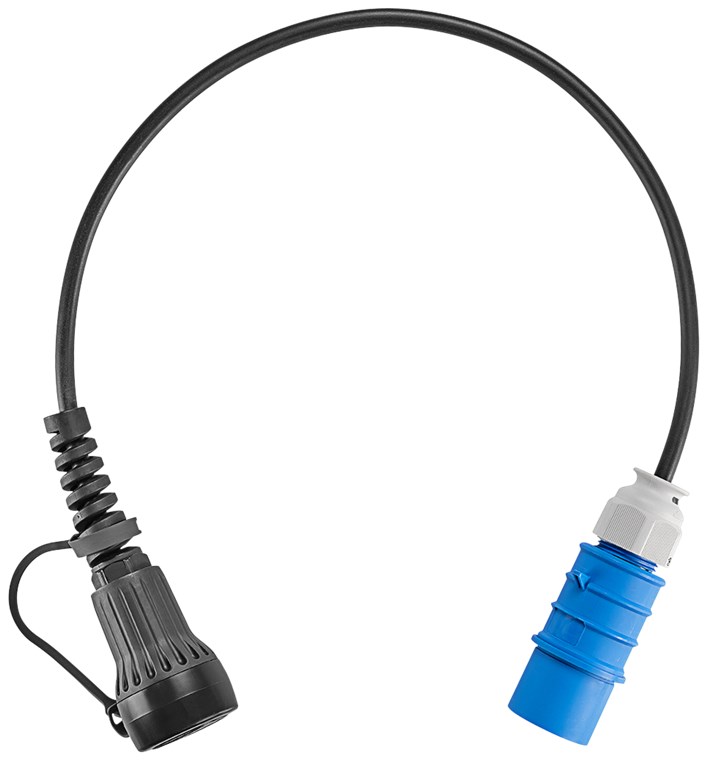

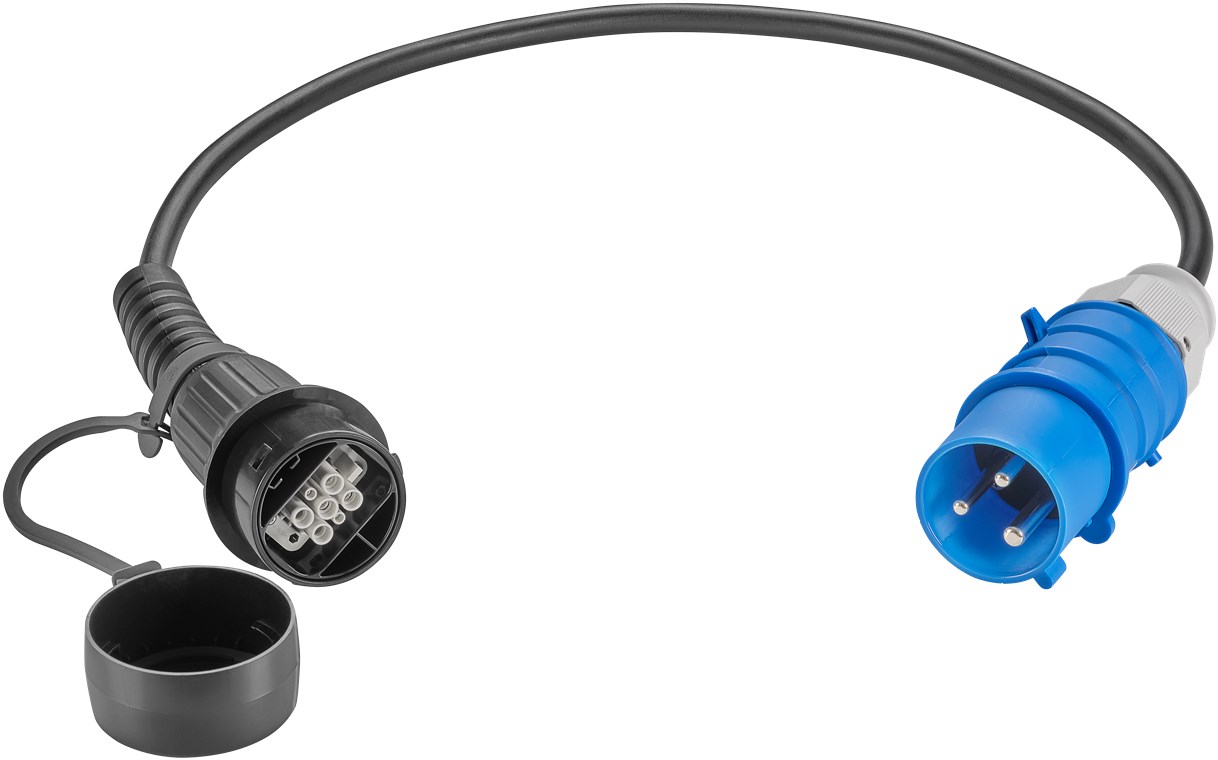

CEE Charging Adapter Universal, up to 7.4 kW, 1-phase
(5555923002) 32 A, adapter cable for the LAPP charging station Universal
CEE Charging Adapter Universal, up to 7.4 kW, 1-phase
(5555923002) 32 A, adapter cable for the LAPP charging station Universal
Article details
The mains adapter directly connects the LAPP Universal charging station for EVs to a CEE socket - for easy charging at home or on the road. Simply connect the Type 2 coupling of the cable to the car and the CEE plug to the socket. The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
- Mains adapter for use with the separately available Mode 2 charger "Charging Station Universal" for Type 2 electric cars
- Ideal for charging hybrid and electric vehicles with up to 3.7 kW from CEE industrial sockets, e.g. at the standard sockets at campsites
- As an adapter for the charging station Universal, it provides highly flexible mobile charging, eliminating the need to purchase an additional Type 2 cable
- Charging cable for safe, stable charging at a nominal voltage of 230 V (AC), operating temperature -25 °C to 45 °C
- Robust, vehicle-resistant cables and a socket with silver-plated contacts provide extra durability
- The cover cap on the female plug protects against the ingress of dust, dirt and water during storage
Technical specifications
Connections
Connection, type
CEE plug blue, 3-pole 1ph/32 A
Connection 2, type
LAPP Separation point
Performance
Loading capacity up to
7.4 kW
Rated voltage
230 V (AC)
max current capacity
32 A
Cable
Number of phases
1
Inner conductor cross-section
6 mm²
Cable length
0.96 m
Cable type
smooth cable
Material cable sheath
ÖLFLEX®CHARGE
General
protection class
IP44
Model designation
5555923002
Color
black
Markings
WEEE, CE
Operating temperature from
-25 °C
Operating temperature up to
45 °C
Packaging type
Retail Box
Downloads
Packing units:
1 / 48
Item: 64704
EAN: 4056158850949
