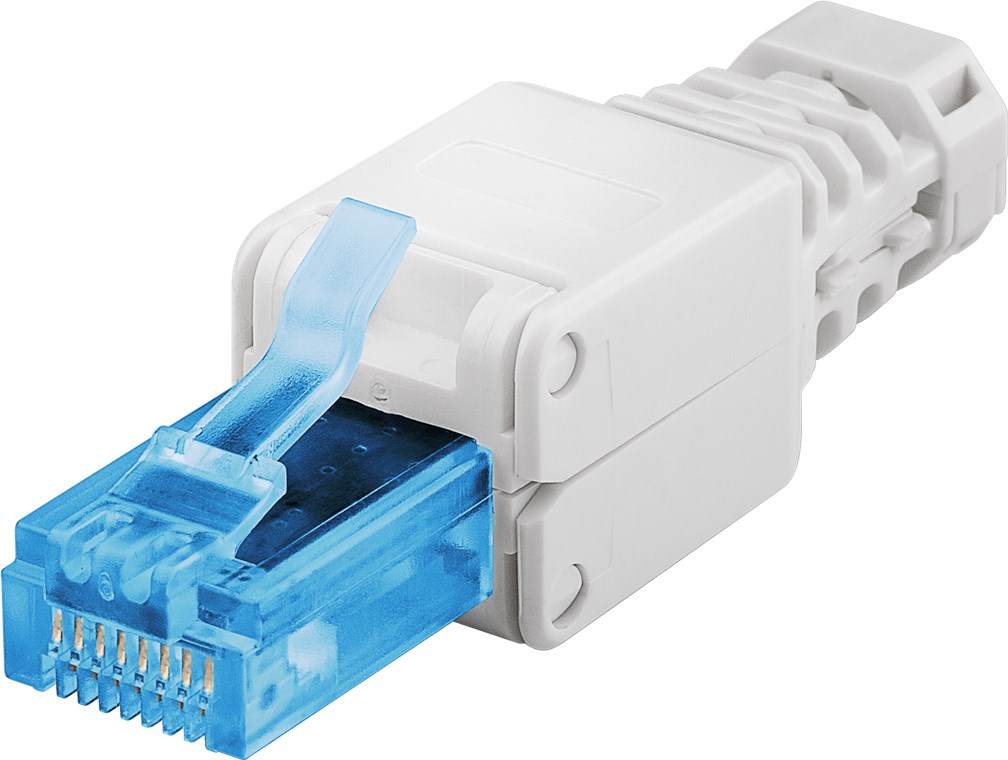

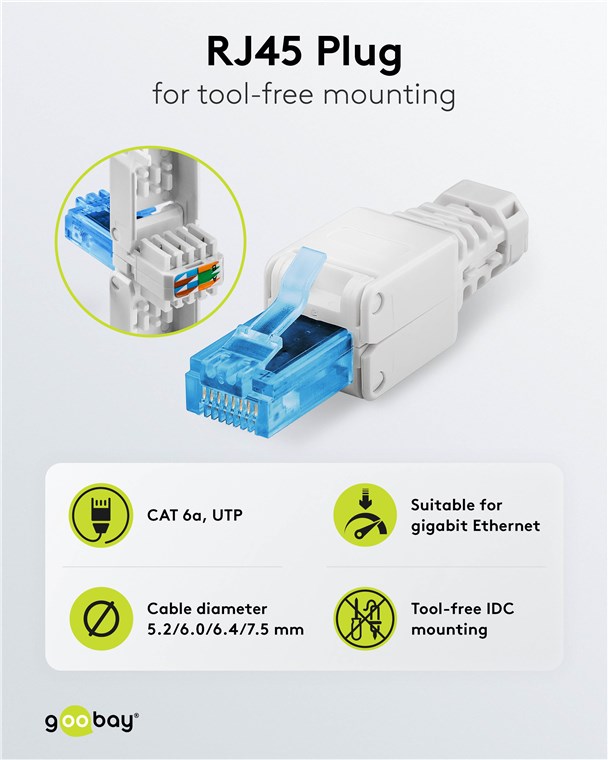

Tool-free RJ45 Network Plug CAT 6A UTP Unshielded
For 4 cable diameters (5.2 mm/6.0 mm/6.4 mm/7.5 mm), IDC connectors (tool-free)
Goobay
Tool-free RJ45 Network Plug CAT 6A UTP Unshielded
For 4 cable diameters (5.2 mm/6.0 mm/6.4 mm/7.5 mm), IDC connectors (tool-free)
Article details
Our network accessories transmit signals in top quality and speed. High-quality materials, robust housings and precisely fitting contacts distinguish our portfolio of jack sockets, plugs and couplings. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

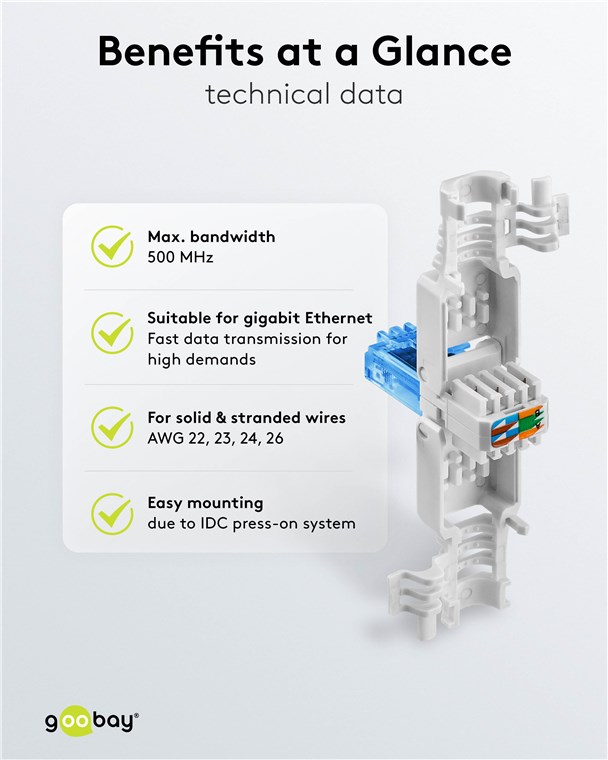

  • RJ45 plug is suitable for round cable with a flexible or rigid inner conductor (AWG 22 - AWG 26).

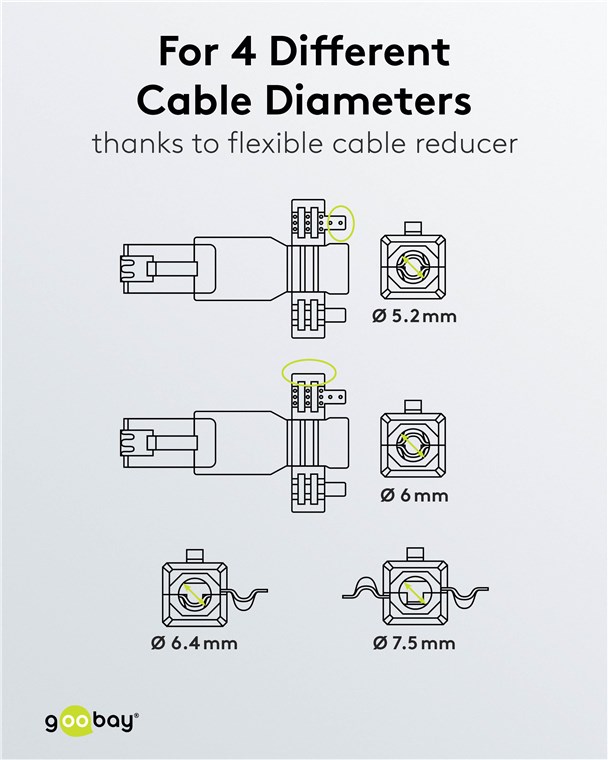

  • Cable reducer allows for connecting 4 different cable sizes (Ø 5.2 mm/6.0 mm/6.4 mm/7.5 mm) to the Ethernet connector.
  • CAT 6A plug with 3μ gold-plated contacts for a perfect transmission of electrical or optical signals

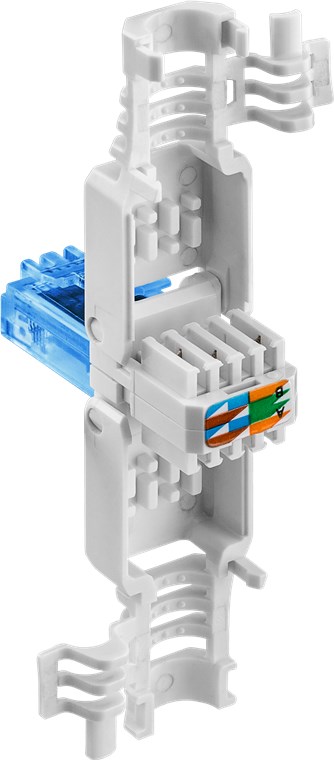

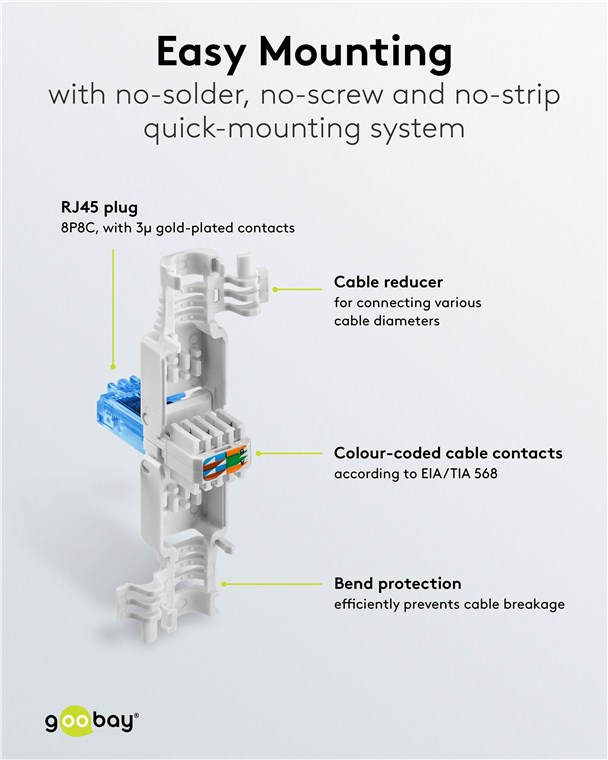

  • Tool-free assembly by simply pressing down the connector housing
  • Kink protection on the Ethernet plug perfectly protects the Ethernet cable from breakage.
  • RJ45 connector with colour-coded cable contacts according to EIA/TIA 568
  • Unshielded RJ45 connector is suitable for Gigabit Ethernet applications.
Technical specifications
Connections
Connection, type
RJ45 male (8P8C)
Connection 2, type
for IDC connection (toolless)
Connection, contact material
gold-plated 3µm
Contacting
8 Pin
Cable
Specification
CAT 6A
Shielding class
UTP
Signal transmission
max. bandwidth
500 MHz
General
Packaging type
Bulk
Dimensions / Weight

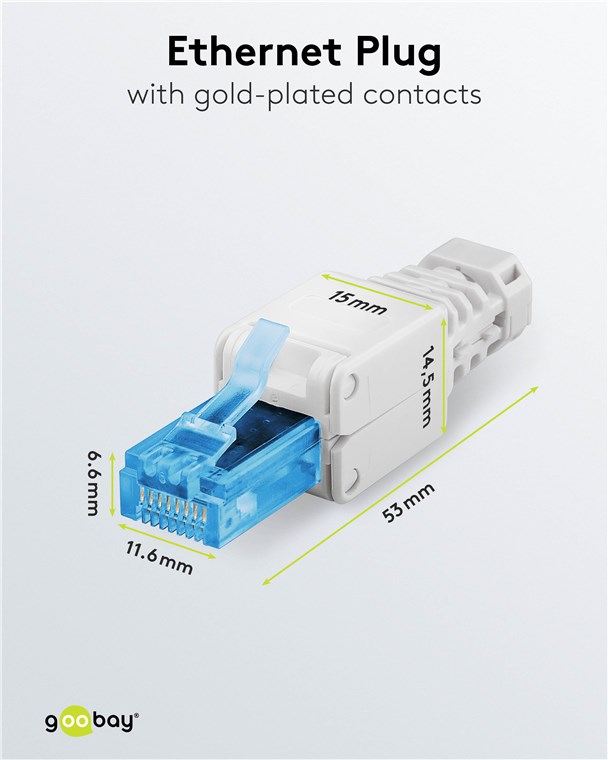

Length
53 mm
Width
15 mm
Height
14.5 mm
Consumption Unit
1 pc. in polybag
Language Scope
Operation manual
de, en
Downloads
Packing units:
1 / 10 / 100 / 1000
Item: 59227
EAN: 4040849592270
