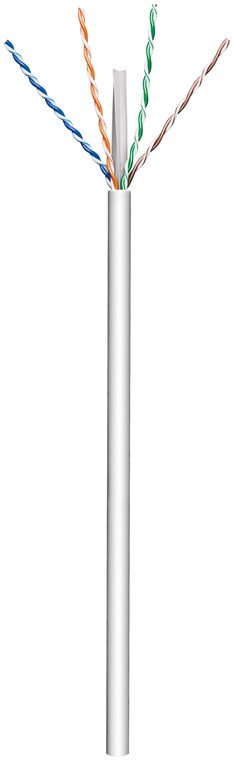

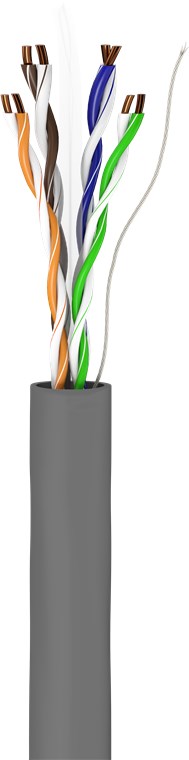

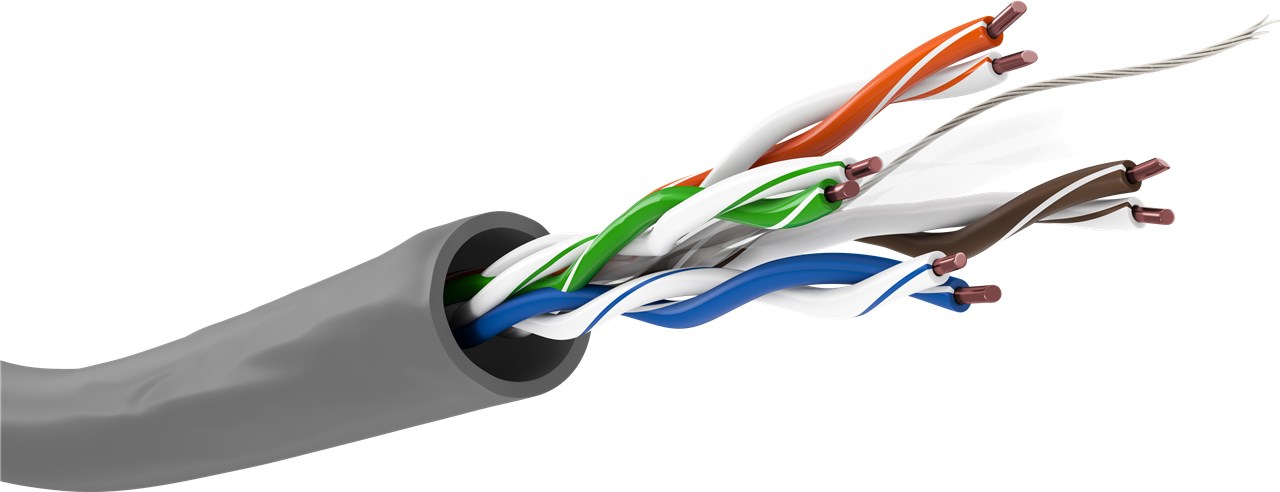

CAT 6 Network Cable, U/UTP, grey
copper conductor (CU), AWG 23/1 (solid), halogen-free cable sheath (LSZH)
Product and packaging similar. Subject to modifications and errors.
CAT 6 Network Cable, U/UTP, grey
copper conductor (CU), AWG 23/1 (solid), halogen-free cable sheath (LSZH)
Article details
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors and robust cable sheathing distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Unshielded twisted-pair LAN cable for indoor installation e.g. for the small office and working from home
- Unterminated data and installation cable for assembly and installation with LSA connection technology
- High-quality copper conductor (CU) guarantees an excellent, powerful network connection.
- Sturdy PVC jacket effectively protects the Ethernet cable from breakage.
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
Cable
Cable type
round cable
Cable length
100 m
Material cable sheath
LSZH
Cable sheath diameter (approx.)
5.8 mm
Specification
CAT 6
Diameter of insulated conductor
1 mm (+/-0.05)
Shielding class
U/UTP
Meter scaling
yes
Fire class (CPR)
Eca
Inner conductor material
CU (copper)
LSZH compliant
yes
AWG
23/1 (solid)
Signal transmission
max. bandwidth
250 MHz
Impedance
100 Ω
General
Color
grey
Markings
ECA_CPR, CE
Packaging type
Cable spool-drum
Dimensions / Weight
Consumption Unit
1 pc. cable reel
Downloads
Packing units:
1 / 4
Item: 68466
EAN: 4040849684661
