Passive SAT Multiswitch 5 Inputs / 8 Outputs
distributor for max. 8 participants from one satellite
Passive SAT Multiswitch 5 Inputs / 8 Outputs
distributor for max. 8 participants from one satellite
Article details

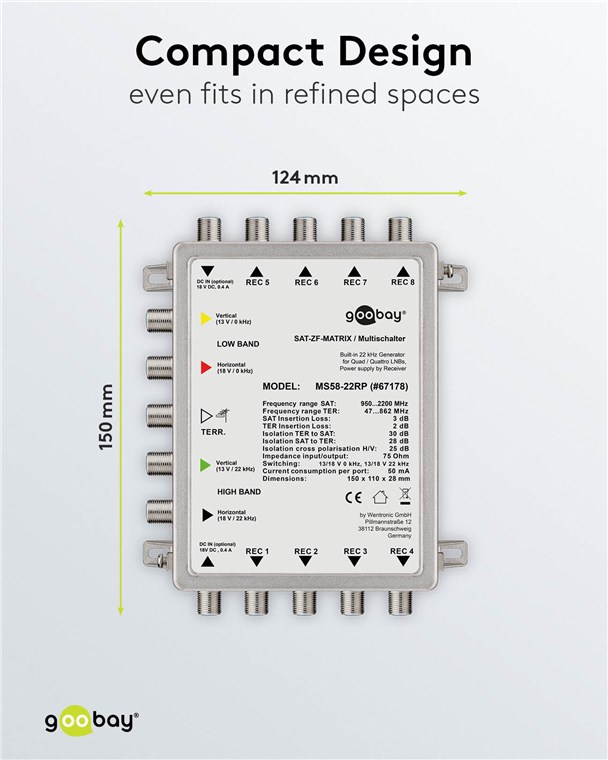

It can even fit into the smallest corner in the attic, thanks to its compact design. It doesn’t even need a power supply cord, since the multi-switch takes the power that it and the LNB require from the connected receivers.
- Works with a Quad or Quattro LNB
- Built-in 22 kHz generator
- Suitable for DVB-S and DVB-S2 (4K/HDTV/3D)
- Additional terrestrial antenna input (DVB-T/DVB-T2 HD)
- Power supply via receiver
- The multiswitch distributes digital signals from one satellite position to up to 8 participants.
- No 230 V connection (power supply unit) required
Technical specifications
Device connections
max. subscriber
8 szt.
Input, type
F female x in
Output, type
F female
switching commands
13/0; 18/0; 13/22; 18/22
power supply for LNB
400
number of inputs
5 pcs.
Number of outputs
8 ports
Signal transmission
Frequency range
950 - 2.200 MHz
Frequency range terrestrial
47 - 862 MHz
Polarization decoupling SAT
28 - 30 dB
Transmission modes
DVB-S, DVB-S2, DVB-T, DVB-T2
Return loss SAT inputs
10 dB
Return loss SAT outputs
8 dB
Impedance
75 Ω
General
Color
silver
Markings
WEEE, CE
Packaging type
Retail Box
Dimensions / Weight
Length
149.9 mm
Width
124 mm
Height
28.7 mm
Consumption Unit
1 pc. in cardboard box
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
en, de, fr, it
Downloads
Packing units:
1 / 20
Item: 67178
EAN: 4040849671784
