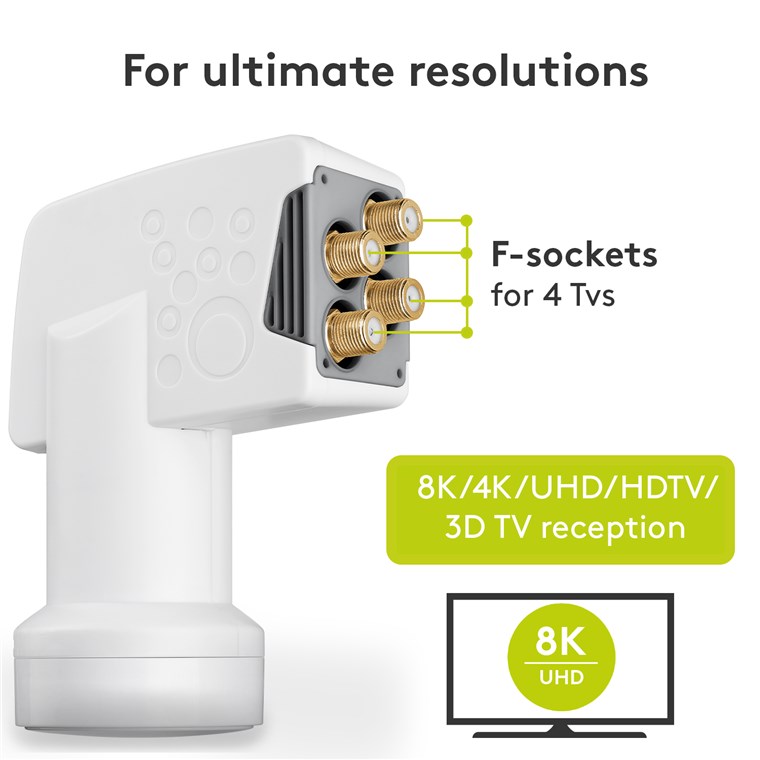

Universal Quad LNB
digital SAT LNB (DVB-S2) for 4 participants (8K, 4K, UHD, HDTV, 3D)
Universal Quad LNB
digital SAT LNB (DVB-S2) for 4 participants (8K, 4K, UHD, HDTV, 3D)
Article details
- reception system for connecting satellite systems to 4 independent receivers/TVs
- suitable for direct connection without multiswitch
- equipped with fully encapsulated, weatherproof housing
- additional protection of the gold-plated F-connectors through pull-out wetness protection
- higher signal strength thanks to 0.1 dB noise figure
Technical specifications
Device connections
max. subscriber
4 szt.
Output, contact material
gold-plated
Output, type
F female
Number of outputs
4 ports
Signal transmission
noise figure
0.1
Input frequency low band
10,70 - 11,70 GHz
Input frequency high band
11,70 - 12,75 GHz
Output frequency low band
950 - 1.950 MHz
Output frequency high band
1.100 - 2.150 MHz
Signal amplification Legacy
52 - 62 (typ. 57) dB
LOW frequency Low
9.75
LOW frequency High
10.6
Transmission modes
DVB-S, DVB-S2
General
Diameter Feedhorn
40
Color
white, grey
Markings
CE, WEEE
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
de, en, fr, it
Downloads
Packing units:
1 / 30
Item: 67272
EAN: 4040849672729
