Goobay

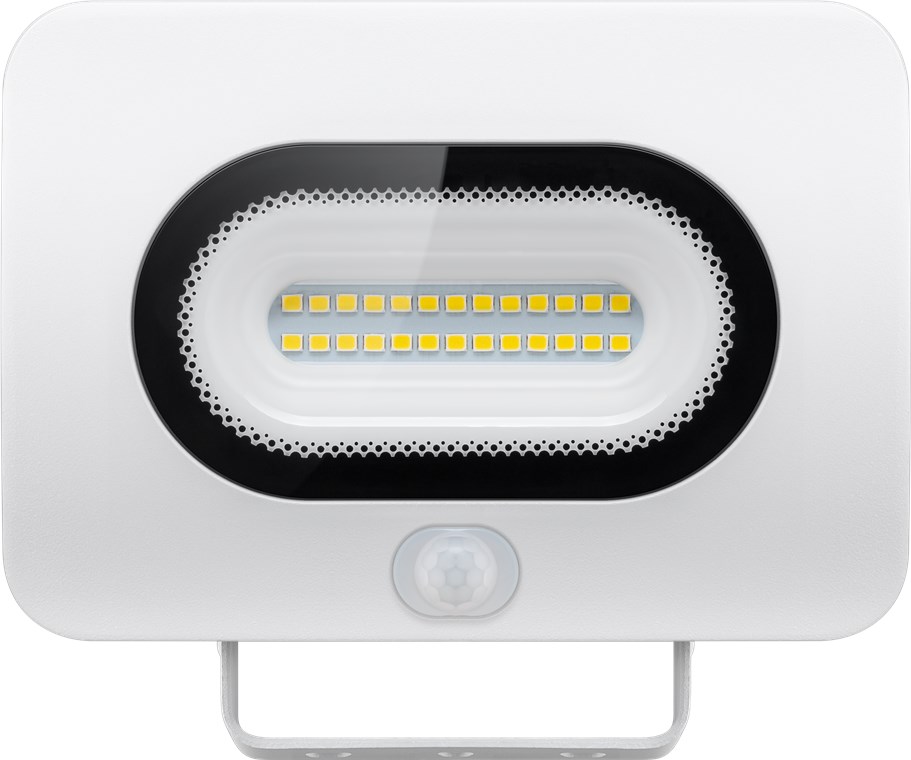

LED floodlight, 10 W, Slim Design, with motion sensor
modern lighting solution with PIR sensor for building entrances, garages, carports and access paths
/5
Product and packaging similar. Subject to modifications and errors.
Goobay
LED floodlight, 10 W, Slim Design, with motion sensor
modern lighting solution with PIR sensor for building entrances, garages, carports and access paths
Article details
  • extremely flat shape, ultramodern design and high energy efficiency
  • very long service life, thanks to integrated, non-removable LED light source
  • characterised by very bright, neutral white light with large beam angle of 110°
  • IP64 – dustproof and splash-proof (-40–50°C)
  • shock-resistant aluminium die-cast housing and safety glass protect against the weather
  • very stable, adjustable mounting bracket for wall mounting and approx. 30 cm connection cable with end splices
  • PIR detection range: max. 6 m at 110° angle, adjustable off-delay (20–420 sec.) and light sensitivity (20–2000 lx)
Technical specifications
Battery
rechargeable
no
Performance
luminous source
light emitting diode (LED)
Luminous color
classic white
color temperature
4000 K
Power consumption
10 W
corresponds light bulb
64 W
Dimmability
not dimmable
sensor type
passive infrared (PIR)
Luminous flux
800 lm
Rated luminous flux
800 lm
Illuminate-Type
SMD LED
operating voltage
230 V (AC)
Light yield
80 lm/W
Startup time
0.1 s
startup time to 60% light
0.1 s
color rendering index
70 Ra
electric power factor
0.5
weighted energy consumption
10 kWh/1.000 h
Max. light range
3 m
Number of LEDs
26
max view angle
110 °
switch-off delay from
20 s
switch-off delay to
420 s
Installation height from
1 m
Installation Height up to
3 m
max. detection range
6 m
recommended installation height
1 - 3 m
Light sensitivity from
20 lx
light sensitivity up to
2000 lx
No-load power consumption
0.3 W
Cable
Cable length
0.3 m
Build
Beam Angle
110 °
General
protection class
IP64
Appliance Class
I
Energy efficiency rating
A 874/2012/EU
General service life
30000 hrs.
Number of switching cycles
30000 pcs.
Model designation
Goobay
Color
white
Material
aluminum
Markings
WEEE, CE
Operating temperature from
-40 °C
Operating temperature up to
50 °C
Packaging type
Retail Box
Dimensions / Weight
Length
141.5 mm
Width
48 mm
Height
101.5 mm
Weight
359 g
Consumption Unit
1 pc. in cardboard box
accessory - Power supply
Power frequency
50 Hz
Language Scope
Operation manual
en, de, fr, it, es, nl, da, se, pl, cz, fi, ro, el, ru, tr
packaging
de, en, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr
Downloads
Product data sheet pdf Declaration of conformity pdf Instruction Manual pdf
Packing units:
1 / 30
Item: 38706
EAN: 4040849387067
