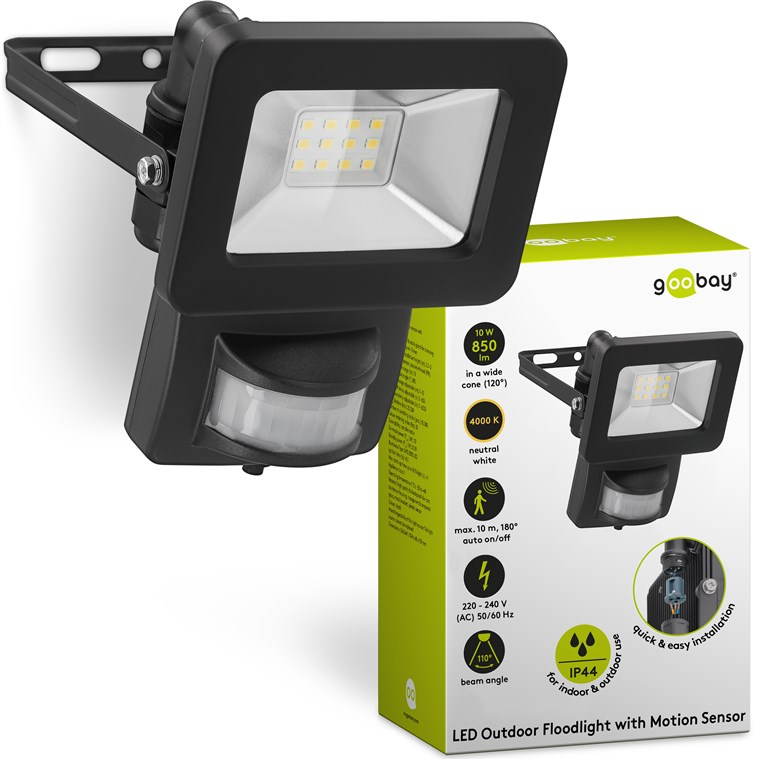

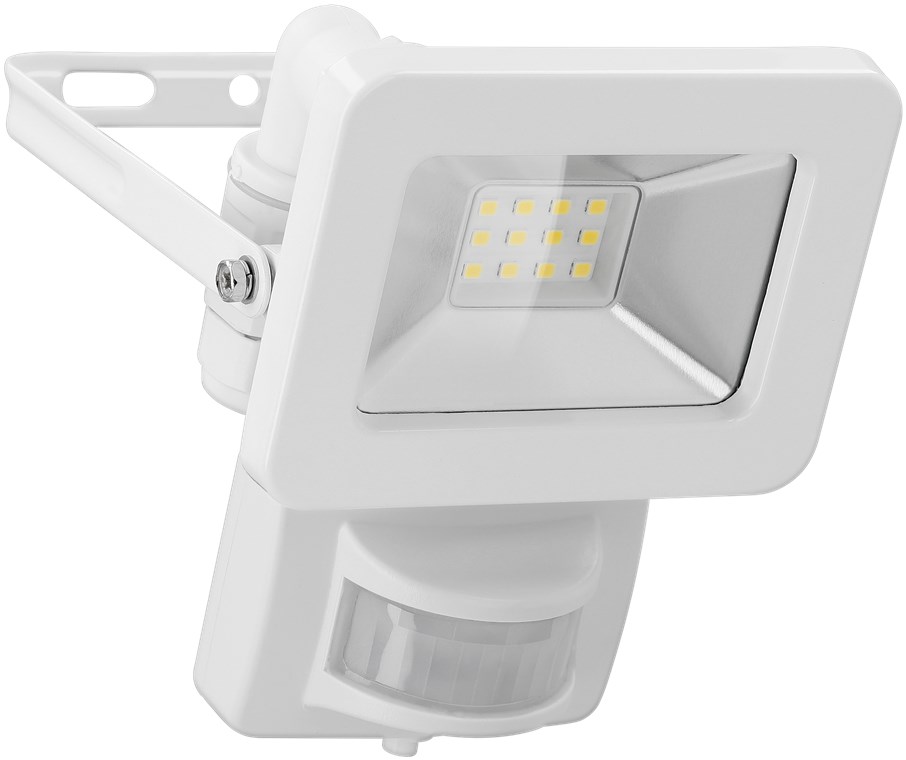

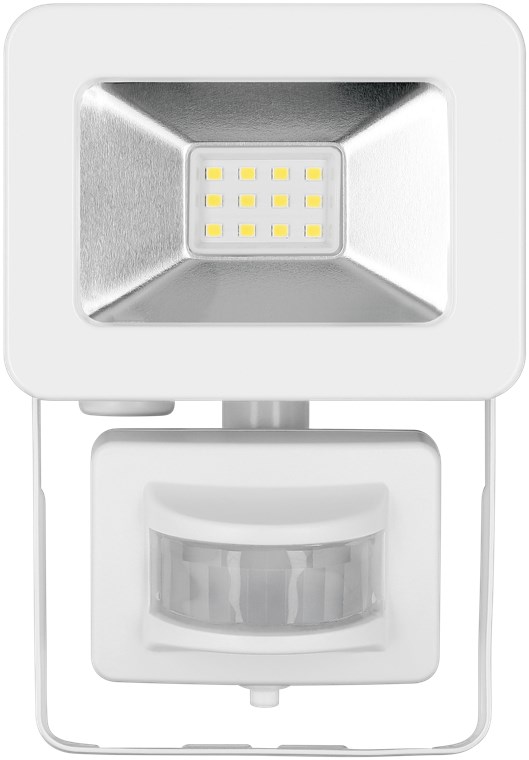

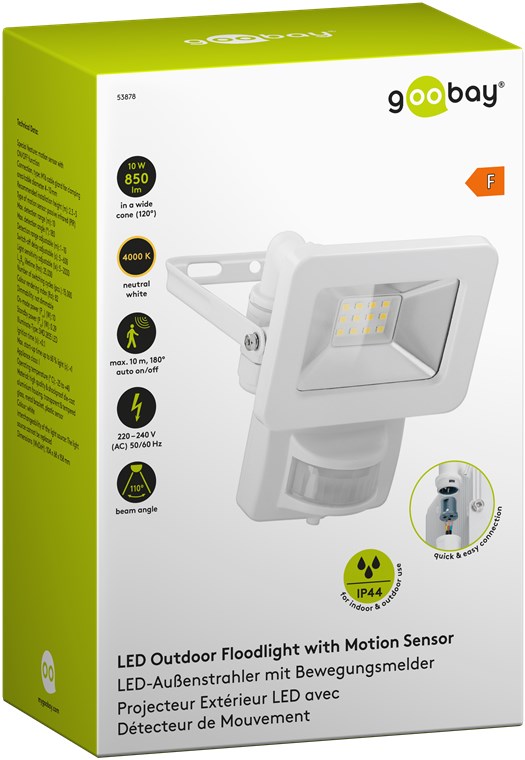

LED Outdoor Floodlight, 10 W, with Motion Sensor
with 850 lm, neutral white light (4000 K), PIR sensor with ON/OFF function and M16 cable gland, suitable for outdoor use (IP44)
LED Outdoor Floodlight, 10 W, with Motion Sensor
with 850 lm, neutral white light (4000 K), PIR sensor with ON/OFF function and M16 cable gland, suitable for outdoor use (IP44)
Article details
- Very bright and functional LED outdoor lights in a compact size for lighting garages, carports, facades and access paths. Ideal for use as garden lights.

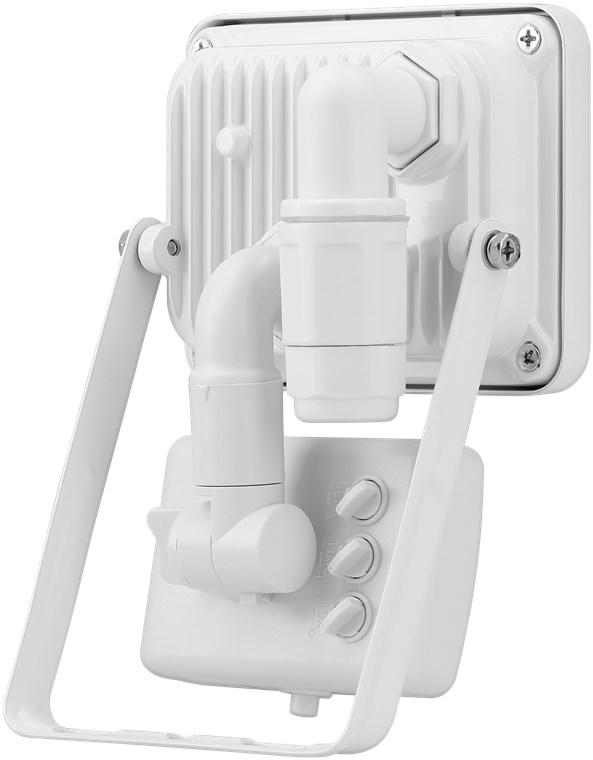

- Quick and easy mounting thanks to the practical M16 cable gland with plug-in function for a clamping range or cable diameter of 4-10 mm

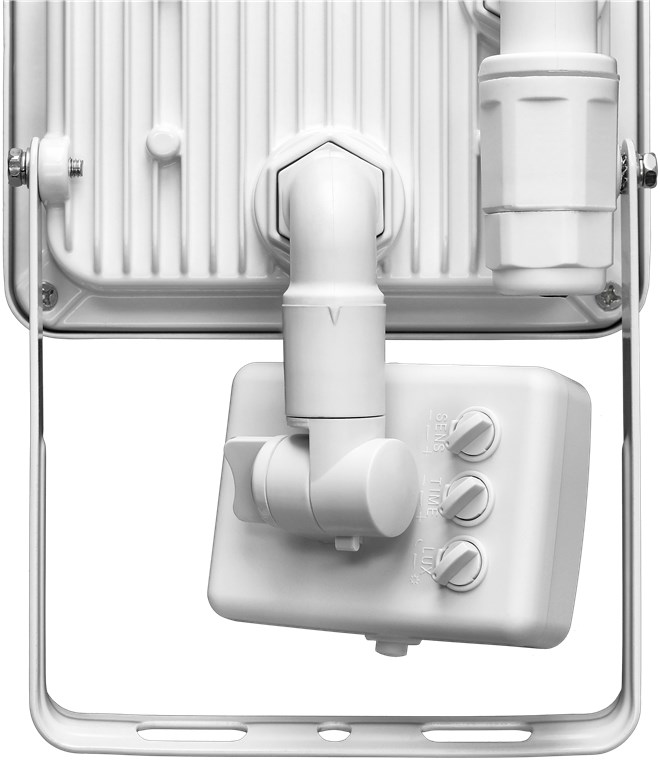

- Detection range PIR motion sensor: max. 10 m at a 180° angle, adjustable switch-off delay (5-600 s), light sensitivity (5-2000 lx) and range (1-10 m)

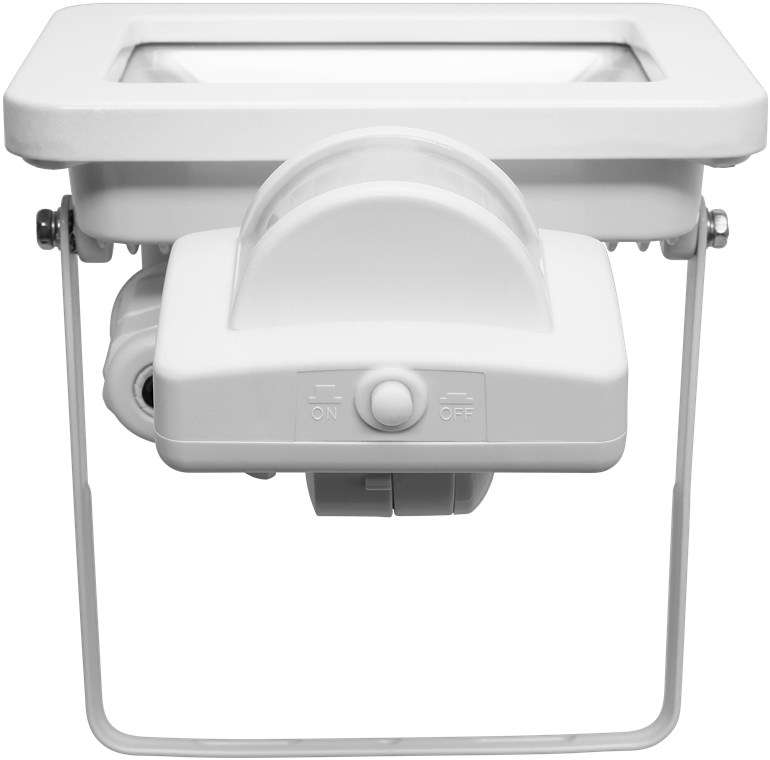

- Highlight: Use as a regular LED flood light outdoors by simply switching the motion sensor on or off.

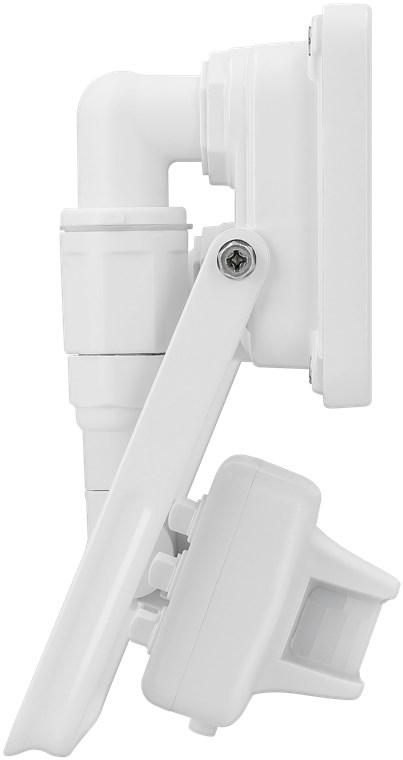

- Stable, angled mounting bracket for wall mounting or attachment to a tripod with a rotation range of up to 180°
- LED spotlight made of impact-resistant, die-cast aluminium housing and tempered glass for a long service life outdoors
- Energy savings of up to 80 % compared to halogen lamp floodlights.
Technical specifications
Battery
rechargeable
no
Connections
Connection, type
M16 cable gland
Performance
luminous source
light emitting diode (LED)
Luminous color
classic white
Illuminate-Type
SMD 2835 LED
color temperature
4000 K
Power consumption
10 W
Dimmability
not dimmable
sensor type
passive infrared (PIR)
Luminous flux
853 lm
Rated luminous flux
850 lm
Light yield
85 lm/W
Startup time
0.1 s
startup time to 60% light
1 s
color rendering index
82 Ra
electric power factor
0.9
Lamp service life factor
1
light sensitivity adjustable
5 - 2000 lx
weighted energy consumption
10 kWh/1.000 h
operating voltage
230 V (AC)
Number of LEDs
12
max view angle
180 °
switch-off delay from
5 s
switch-off delay to
600 s
Installation height from
2.3 m
Installation Height up to
3 m
switch-off delay adjustable
5 - 600 s
max. detection range
10 m
recommended installation height
2.3 - 3 m
Light sensitivity from
5 lx
light sensitivity up to
2000 lx
No-load power consumption
0.29 W
Build
Beam Angle
110 °
cover type
crystal clear
General
protection class
IP44
Appliance Class
I
Energy efficiency rating
F
General service life
25000 hrs.
rated lamp lifetime
25000 hrs.
Number of switching cycles
15000 pcs.
mercury content
0
Color
white
Material
Aluminium, glass, metal, plastic
Markings
WEEE, CE
Applications
Outdoor, Outdoor/Garden, workshop
Special feature
Sensor function
Operating temperature from
-25 °C
Operating temperature up to
40 °C
Packaging type
Retail Box
Dimensions / Weight
Width
104 mm
Height
158 mm
depth
68 mm
Weight
286 g
Consumption Unit
1 pc. in cardboard box
accessory - Power supply
Power frequency
50 Hz
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
cs, da, de, en, es, fr, it, nl, pl, sv
Downloads
Packing units:
1 / 30
Item: 53878
EAN: 4040849538780
Similar products
Article:
39013,
|
,
Retail Box
Single product
Article:
38902,
|
,
Retail Box
Single product
Article:

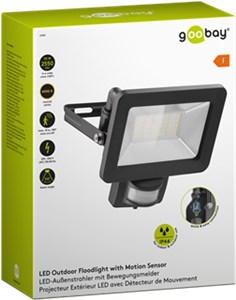

53881,
|
,
