Goobay

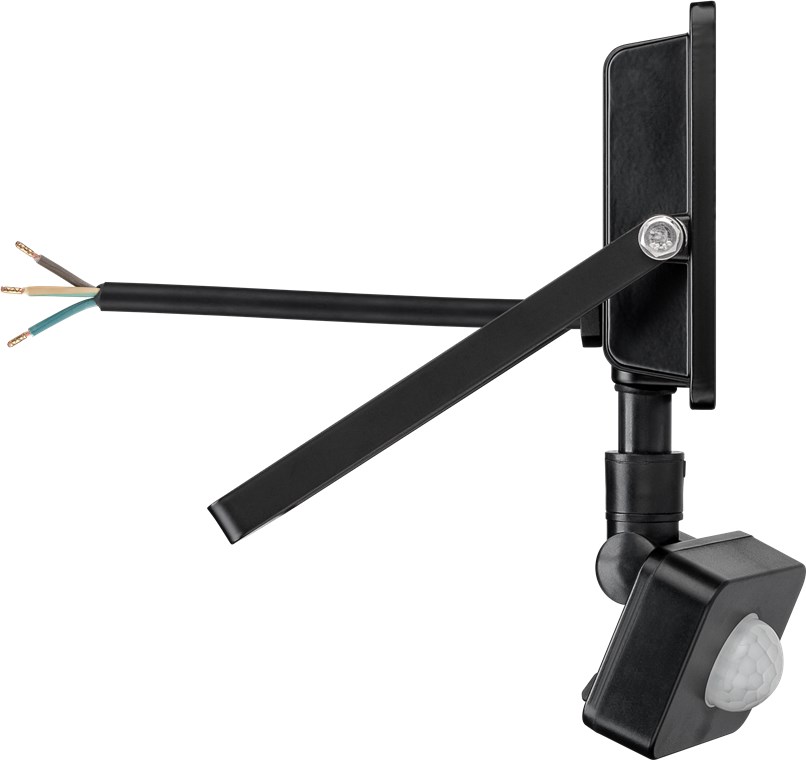

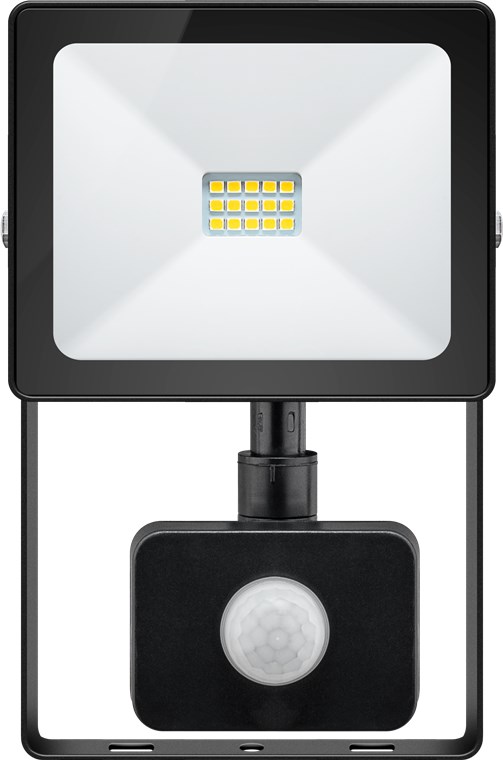

LED floodlight, 10 W, Slim Classic, with motion sensor
lighting solution with PIR sensor for building entrances, garages, carports and access paths
/5
Product and packaging similar. Subject to modifications and errors.
Goobay
LED floodlight, 10 W, Slim Classic, with motion sensor
lighting solution with PIR sensor for building entrances, garages, carports and access paths
Article details
  • extremely flat shape and high energy efficiency
  • very long service life, thanks to integrated, non-removable LED light source
  • characterised by bright, neutral white light with large beam angle of 120°
  • IP44 – splashproof
  • robust aluminium housing protects against weather (-25–40°C)
  • adjustable mounting bracket for wall mounting and approx. 15 cm connection cable with end splices
  • PIR detection range: max. 8 m at 100° angle, adjustable off-delay (10–300 sec.), light sensitivity (3–2000 lx) and range
Technical specifications
Battery
rechargeable
no
Performance
luminous source
light emitting diode (LED)
Luminous color
classic white
color temperature
4000 K
Power consumption
10 W
corresponds light bulb
64 W
Dimmability
not dimmable
sensor type
passive infrared (PIR)
Luminous flux
800 lm
Illuminate-Type
SMD 2835 LED
Rated luminous flux
800 lm
operating voltage
230 V (AC)
Light yield
80 lm/W
Startup time
0.5 s
startup time to 60% light
0.5 s
color rendering index
80 Ra
electric power factor
0.5
light sensitivity adjustable
3 - 2000 lx
weighted energy consumption
11.45 kWh/1.000 h
Max. light range
5 m
Number of LEDs
15
max view angle
100 °
switch-off delay from
10 s
switch-off delay to
300 s
Installation height from
1.8 m
Installation Height up to
2.5 m
switch-off delay adjustable
10 - 300 s
max. detection range
8 m
recommended installation height
1.8 - 2.5 m
Light sensitivity from
3 lx
light sensitivity up to
2000 lx
No-load power consumption
0.5 W
Cable
Cable length
0.15 m
Build
Beam Angle
120 °
General
protection class
IP44
Appliance Class
I
Energy efficiency rating
A+ 874/2012/EU
General service life
30000 hrs.
Number of switching cycles
30000 pcs.
Model designation
Goobay
Color
black
Material
aluminum
Markings
WEEE, CE
Operating temperature from
-25 °C
Operating temperature up to
40 °C

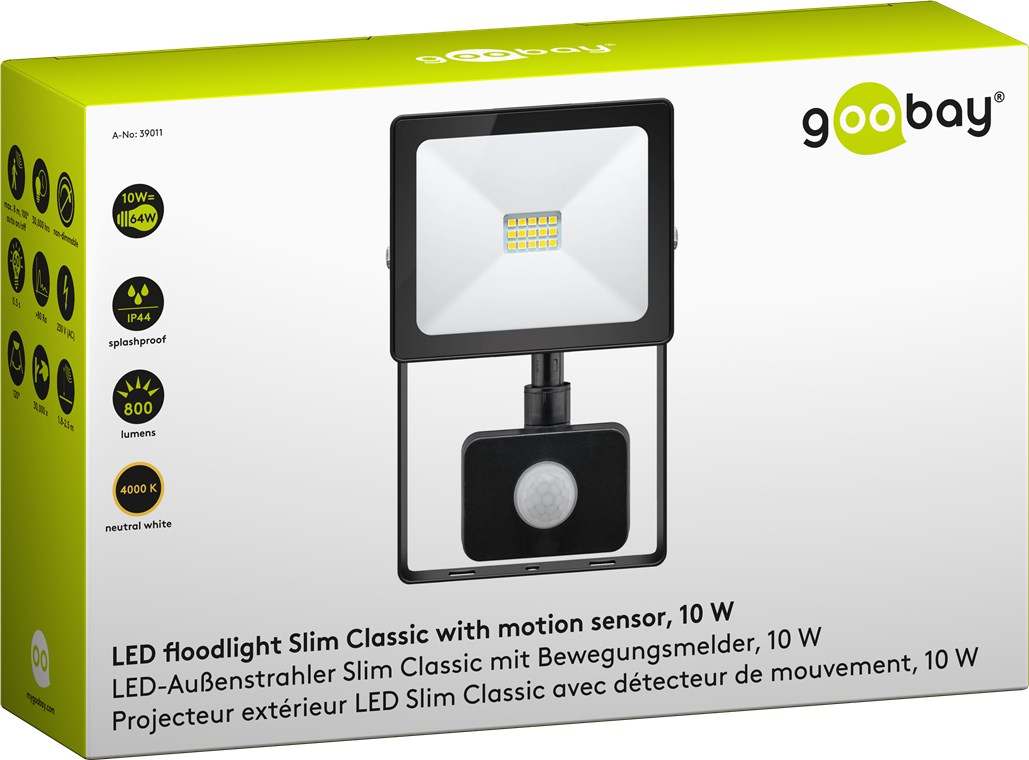

Packaging type
Retail Box
Dimensions / Weight
Width
110 mm
Height
164 mm
depth
25 mm
Weight
275 g
Consumption Unit
1 pc. in cardboard box
accessory - Power supply
Power frequency
50 Hz
Language Scope
Operation manual
en, de, fr, it, es, nl, da, se, pl, cz, fi, ro, el, ru, tr
packaging
de, en, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr
Downloads
Product data sheet pdf Instruction Manual pdf
Packing units:
1 / 24
Item: 39011
EAN: 4040849390111
