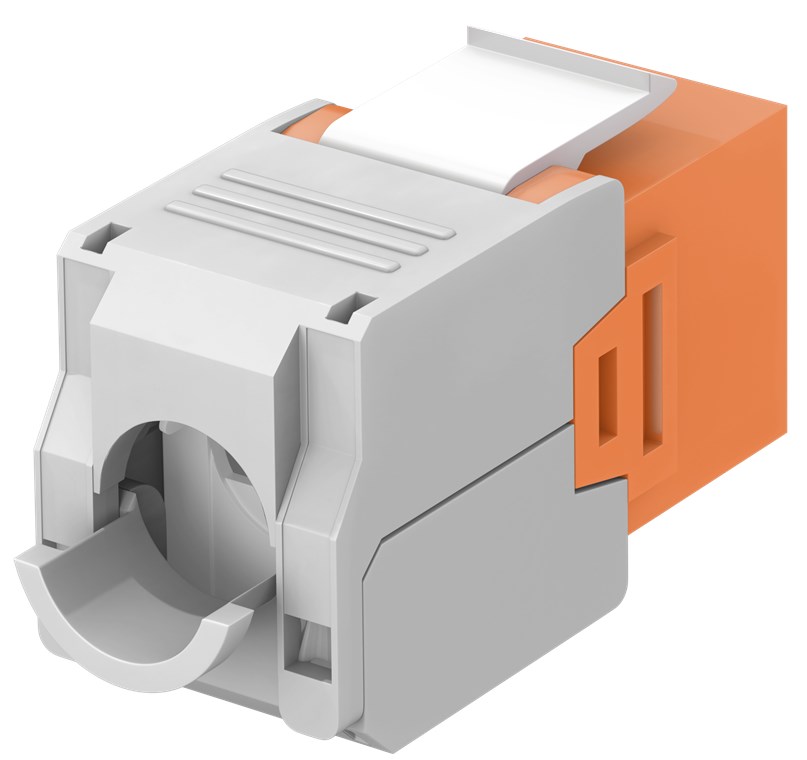

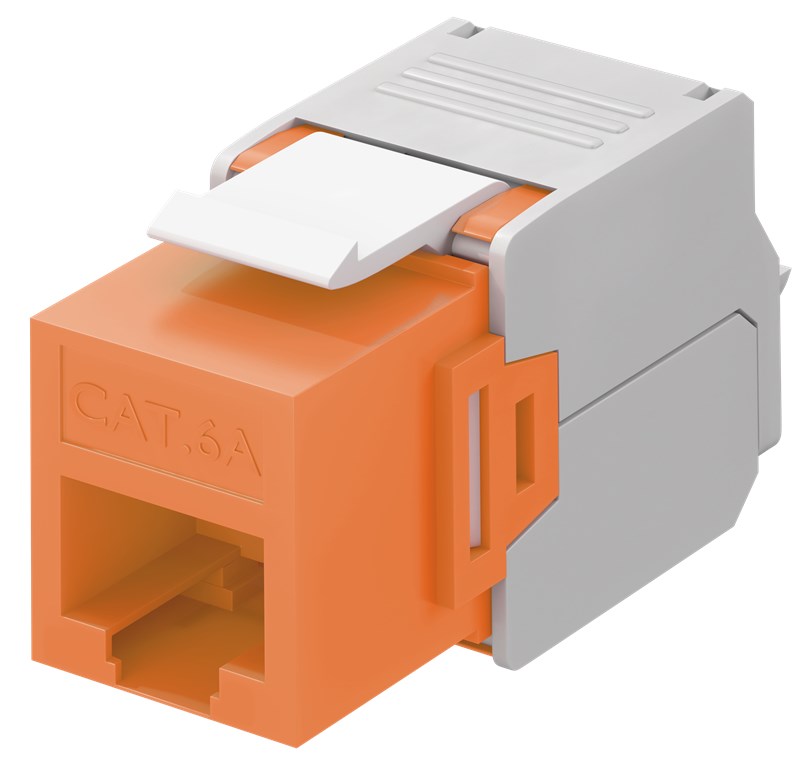

Keystone Module RJ45 CAT 6A, UTP

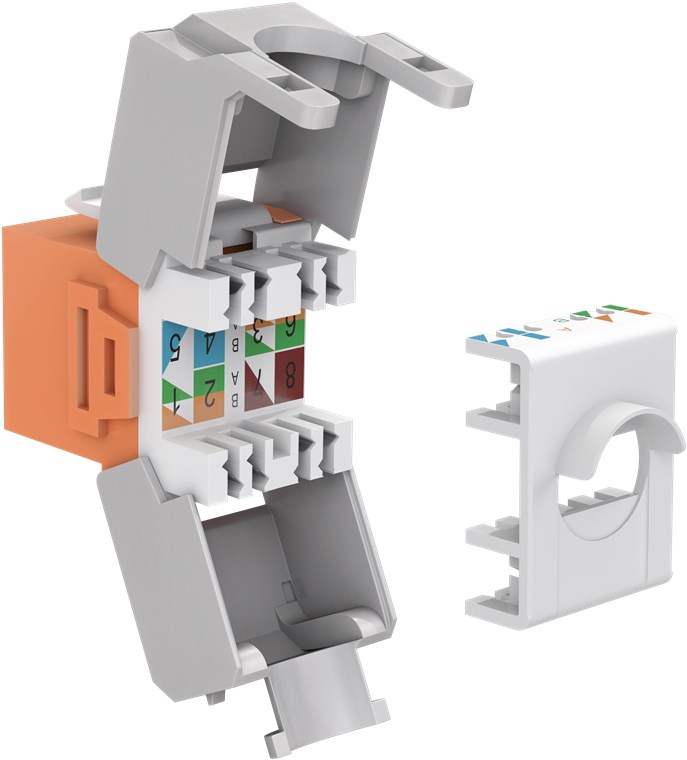

16.5 mm wide, crocodile type, terminal strip for tool-free IDC mounting
Keystone Module RJ45 CAT 6A, UTP
16.5 mm wide, crocodile type, terminal strip for tool-free IDC mounting
Article details
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- RJ45 jack socket with robust plastic housing for a perfect transmission of electrical or optical signals
- CAT 6A jack socket for Ethernet cables with an outer diameter of 5.0 - 9.0 mm
- Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
- Commonly used in laboratories, workshops, home entertainment and network installations
- Ethernet connector for termination of solid wires of 0.48 - 0.65 mm (AWG 22 - 26)
- RJ45 connections are TIA 568A/B colour-coded
| AWG | solid wire 22 - 26AWG |
| For cable diameter from | 5.00 -9.00 mm |
| TIA-568 A/B pinout | TIA-568 A/B |
| PoE and PoE Plus according to IEEE802.3af/at | Yes |
Technical specifications
Connections
Connection, type
RJ45 female (8P8C)
Connection 2, type
for IDC connection (toolless)
construction form
180° cable outlet, crocodile type
Cable
Specification
CAT 6A
Shielding class
UTP
Signal transmission
max. bandwidth
500 MHz
General
Color
orange
Packaging type
Bulk
Dimensions / Weight
Width
16.5 mm
Consumption Unit
1 pc. in polybag
Language Scope
Operation manual
de, en
Downloads
Packing units:
1 / 10 / 100 / 500
Item: 90690
EAN: 4040849906909
