Goobay

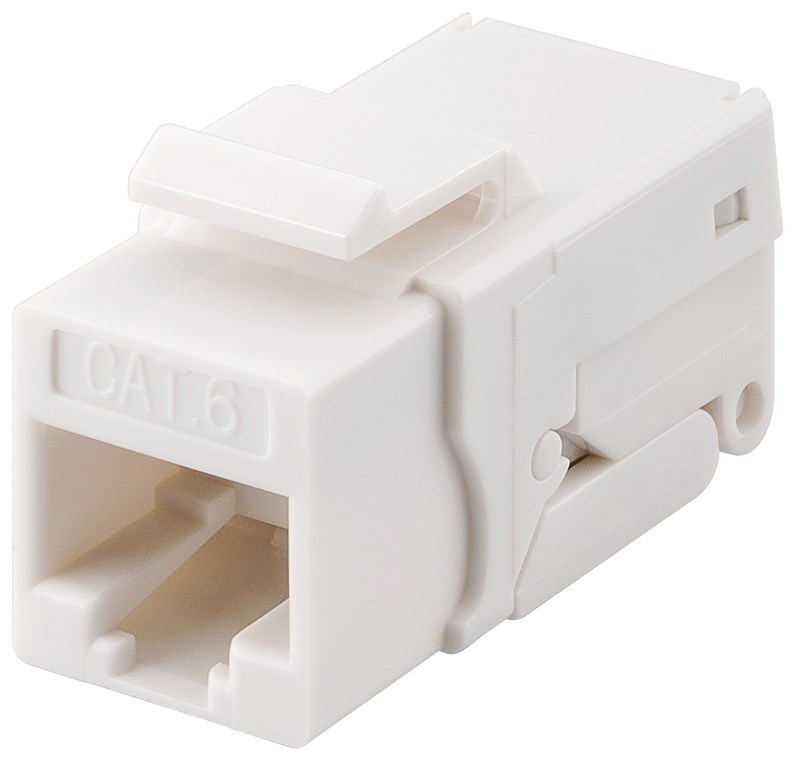

Keystone Module RJ45 CAT 6, UTP, 250 MHz
16.2 mm wide, for IDC connection (toolless), snap-in system
Goobay
Keystone Module RJ45 CAT 6, UTP, 250 MHz
16.2 mm wide, for IDC connection (toolless), snap-in system
Article details
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
  • RJ45 female connector with robust plastic housing (ABS) for a perfect transmission of electrical signals
  • Suitable for Power over Ethernet (PoE+) according to IEEE 802.3at
  • RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
  • Commonly used in network installations and for the assembly of permanently installed network cables
  • RJ45 socket can be terminated with CAT 6 cables

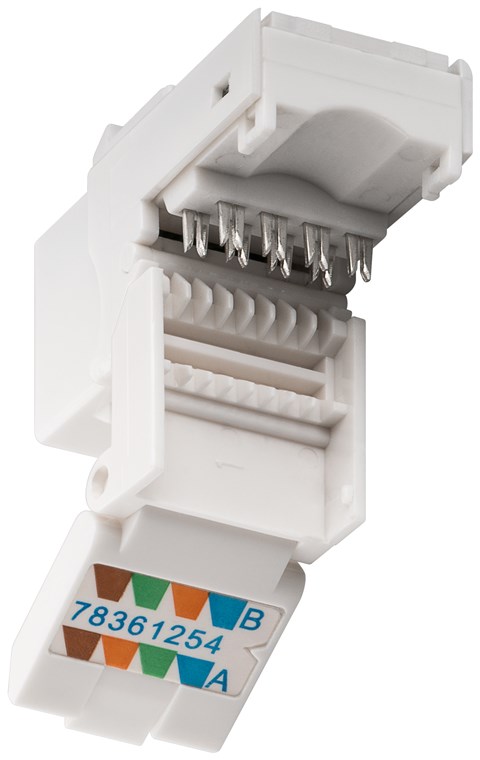

  • RJ45 connections are TIA 568A/B colour-coded.
AWG solid wire 22-26AWG
For cable diameter from  5.00 -9.00 mm
TIA-568 A/B pinout  TIA-568 A/B
PoE and PoE Plus according to IEEE802.3af/at  Yes
Technical specifications
Connections
Connection, type
RJ45 female (8P8C)
Connection 2, type

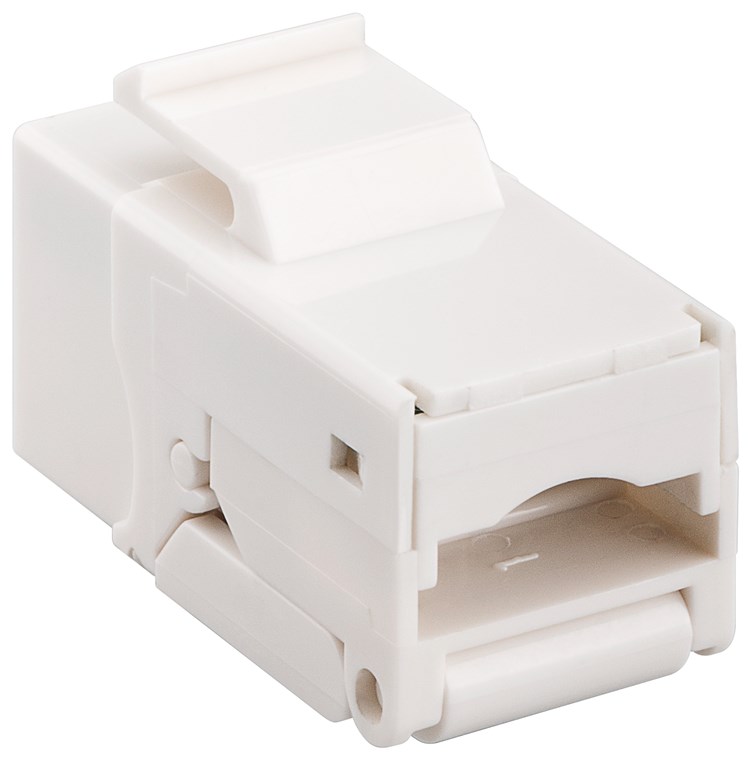

for IDC connection (toolless)
construction form
180° cable outlet, crocodile type
Cable
Specification
CAT 6
Shielding class
UTP
Signal transmission
max. bandwidth
250 MHz
General
Packaging type
Bulk
Dimensions / Weight
Width
16.2 mm
Consumption Unit
1 pc. in polybag
Downloads
£4.99 RRP
Packing units:
1 / 100 / 1600
Item: 95742
EAN: 4040849957420
