£417.99 RRP
Item: 64693

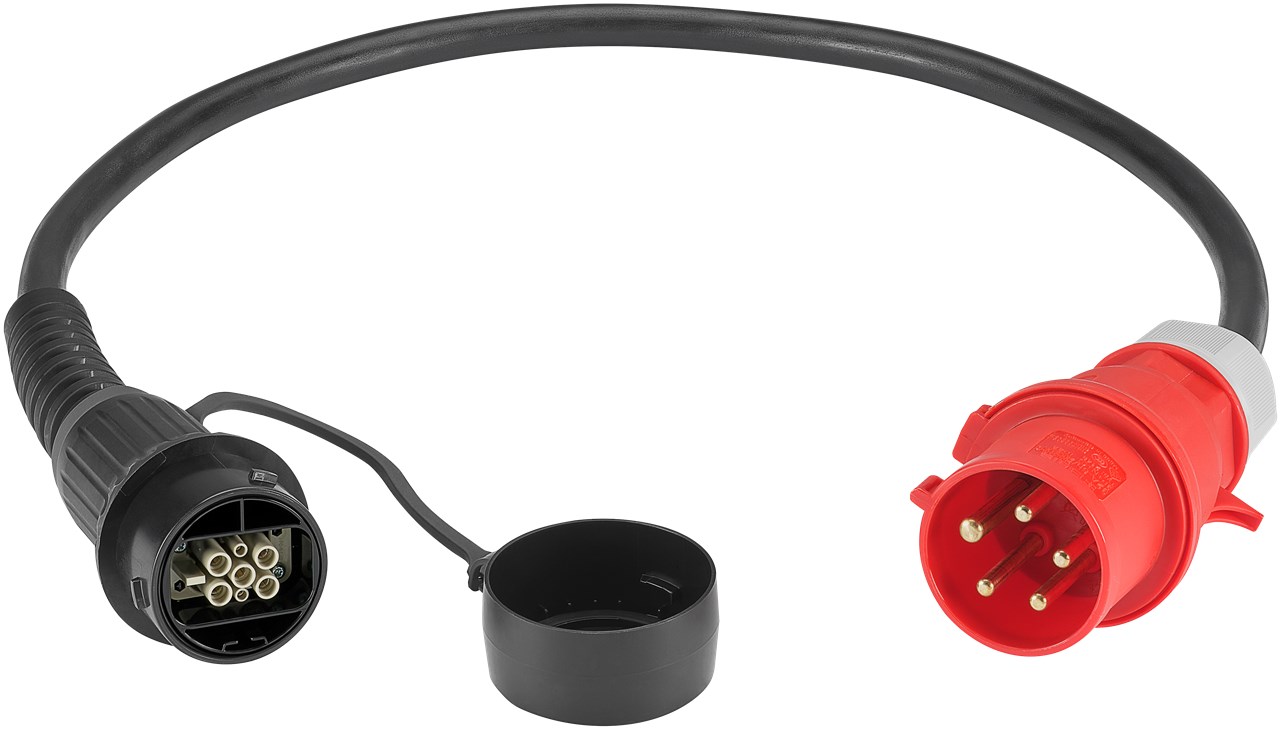

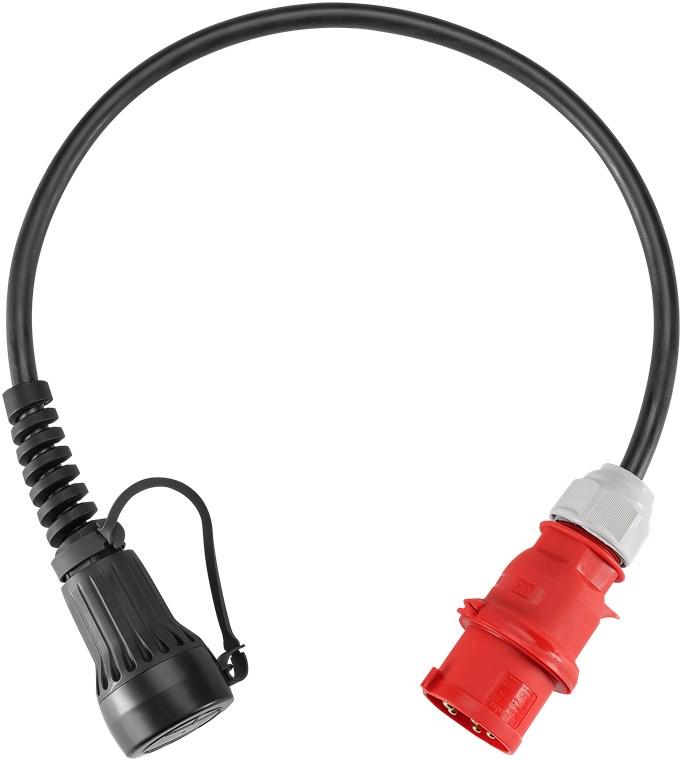

CEE Charging Adapter Universal, up to 22 kW, 3-phase
(5555923001) 32 A, Adapter cable for the LAPP charging station Universal
CEE Charging Adapter Universal, up to 22 kW, 3-phase
(5555923001) 32 A, Adapter cable for the LAPP charging station Universal
Article details
The mains adapter directly connects the LAPP Universal charging station for EVs to a CEE socket - for easy charging at home or on the road. Simply connect the Type 2 coupling of the cable to the car and the CEE plug to the socket. The on-board electronics automatically starts and finishes the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
- Mains adapter for use with the separately available Mode 2 charger "Charging Station Universal" for Type 2 electric cars
- Ideal for charging hybrid and electric vehicles with up to 22 kW from CEE industrial sockets, e.g. in hotels, workshops and in the agricultural sector
- As an adapter for the charging station Universal, it provides highly flexible mobile charging, eliminating the need to purchase an additional Type 2 cable
- Charging cable for safe, stable charging at a nominal voltage of 400 V (AC), operating temperature -25 °C to 45 °C
- Robust, vehicle-resistant cables and a socket with silver-plated contacts provide extra durability
- The cover cap on the female plug protects against the ingress of dust, dirt and water during storage
Technical specifications
Connections
Connection 2, type
LAPP Separation point
Connection, type
CEE plug red, 5-pole 3ph/32 A
Performance
Loading capacity up to
22 kW
Rated voltage
440 V (AC)
max current capacity
32 A
Cable
Number of phases
3
Cable type
smooth cable
Material cable sheath
ÖLFLEX®CHARGE
Inner conductor cross-section
6 mm²
Cable length
0.96 m
General
protection class
IP44
Model designation
5555923001
Color
black
Markings
WEEE, CE
Operating temperature from
-25 °C
Operating temperature up to
45 °C
Packaging type
Retail Box
Downloads
Packing units:
1 / 48
Item: 64706
EAN: 4056158850932
