Goobay

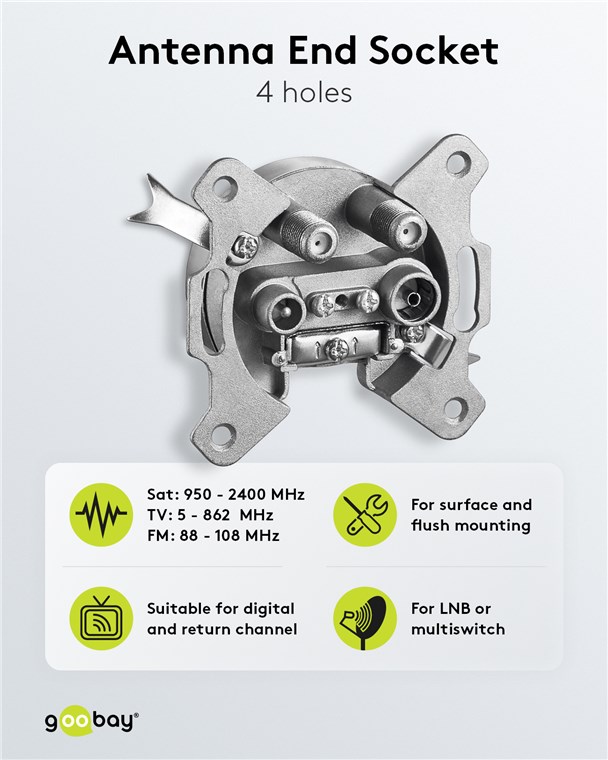

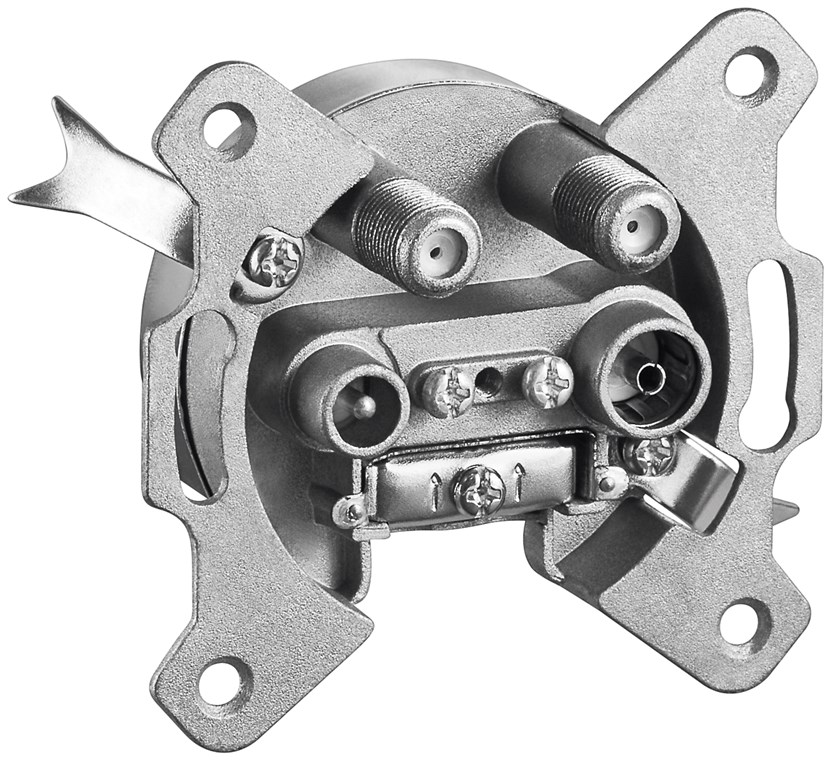

4-Hole Antenna Stub/End Socket

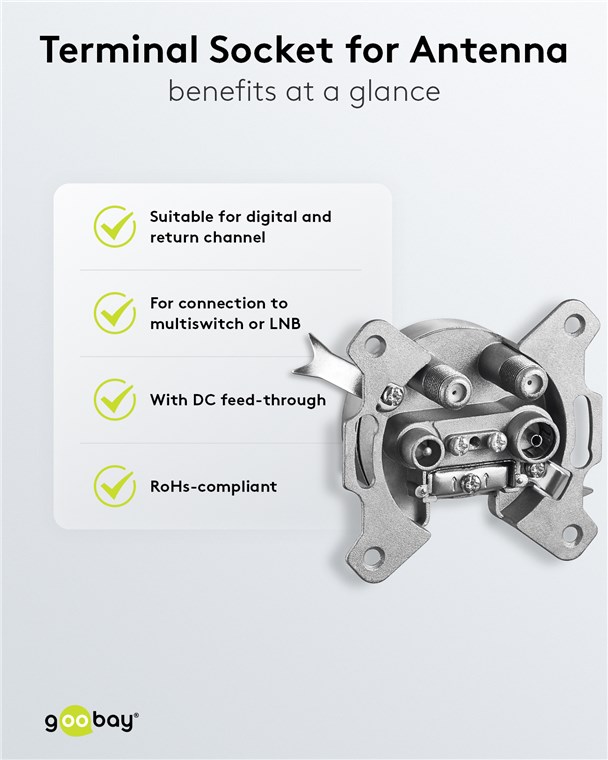

with direct voltage (DC) feed-through
/8
Product and packaging similar. Subject to modifications and errors.
Goobay
4-Hole Antenna Stub/End Socket
with direct voltage (DC) feed-through
Article details

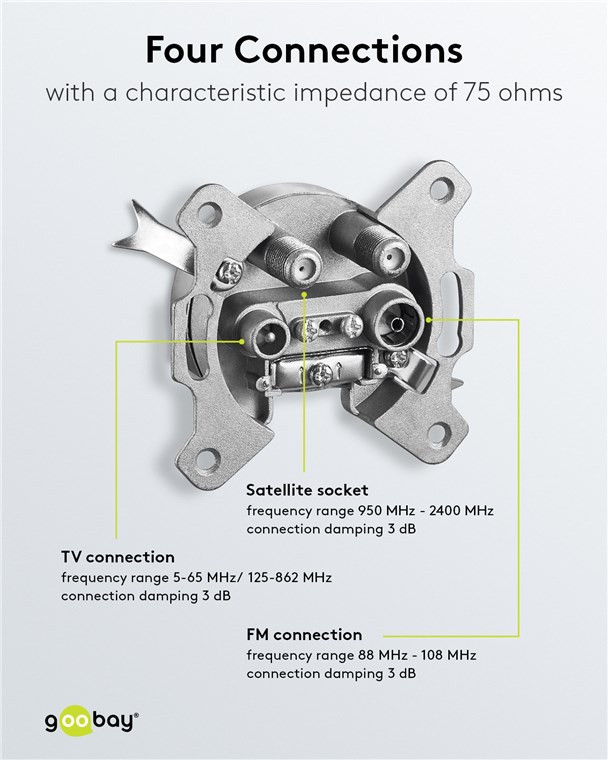

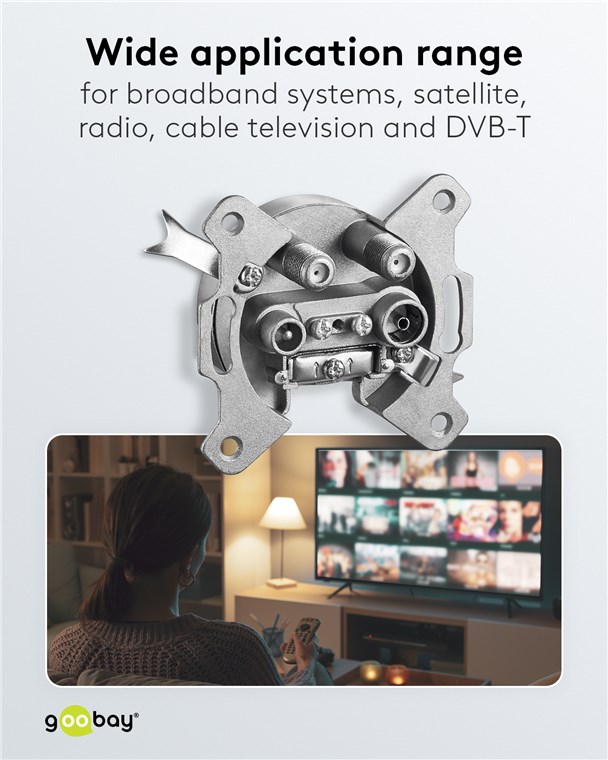

  • Antenna socket for DVB-C systems, broadcasting, SAT, cable TV and DVB-T
  • Aerial wall socket is suitable for special channels and return channels.

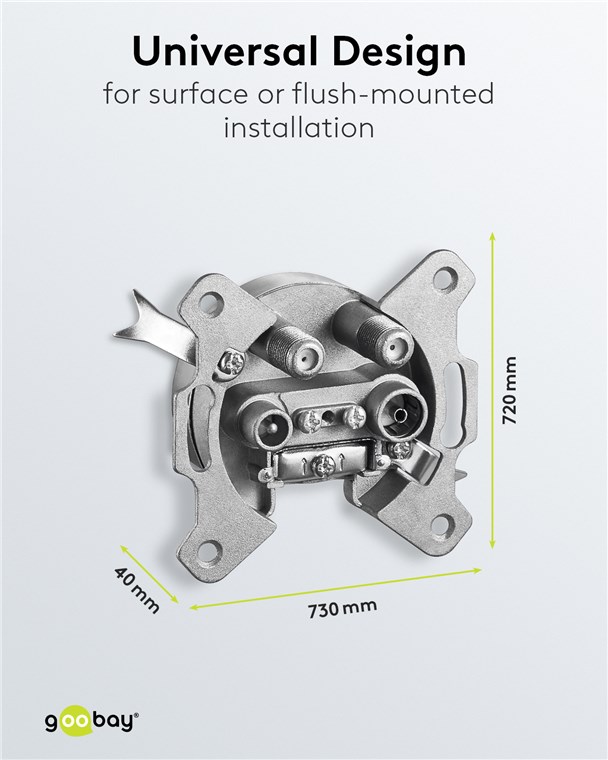

  • Coax wall socket for connecting a multiswitch or LNB, suitable for surface and flush mounting
  • 950 MHz - 2400 MHz (SAT)
  • 5 MHz - 65 MHz/125 MHz - 862 MHz (TV)
  • 88 MHz - 120 MHz (radio)
  • Characteristic impedance: 75 ohm
Technical specifications
Signal transmission
Connection loss radio connection
3 dB
Connection damping SAT connection
3 dB
Connection damping TV connection
3 dB
Frequency range radio connection
88–108 MHz
Frequency range SAT connection
950–2,400 MHz
Frequency range TV connection Forward path
125–862 MHz
Frequency range TV connector rear channel up
5–65 MHz
General
Markings
WEEE, CE
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Downloads
Product data sheet pdf
£9.99 RRP
Packing units:
1 / 50 / 100
Item: 67049
EAN: 4040849670497
Similar products
View all

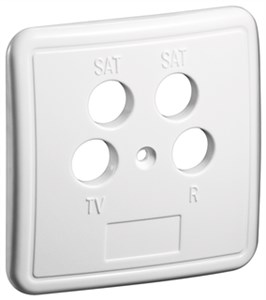

4-hole Cover Plate for Antenna Wall Sockets
