Goobay
2-Hole Aerial Through Socket
10 dB transmission loss
/8
Product and packaging similar. Subject to modifications and errors.
Goobay
2-Hole Aerial Through Socket
10 dB transmission loss
Article details
  • Antenna socket for DVB-C systems, broadcasting, cable TV and DVB-T
  • Antenna socket is suitable for special channels and return channels.
  • Coax wall socket for connecting a multiswitch or LNB, suitable for surface and flush mounting

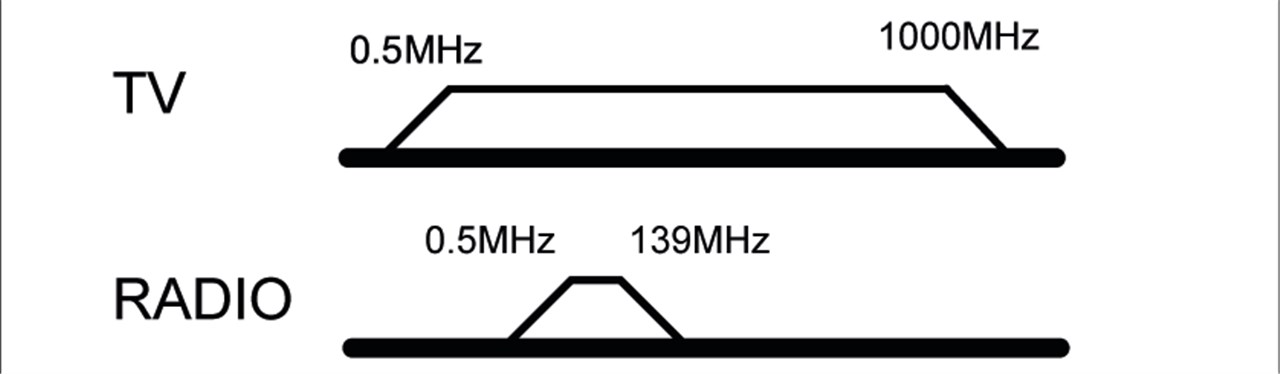

  • 0,5 MHz-1000 MHz (TV)
  • 0.5 MHz - 139 MHz (radio)

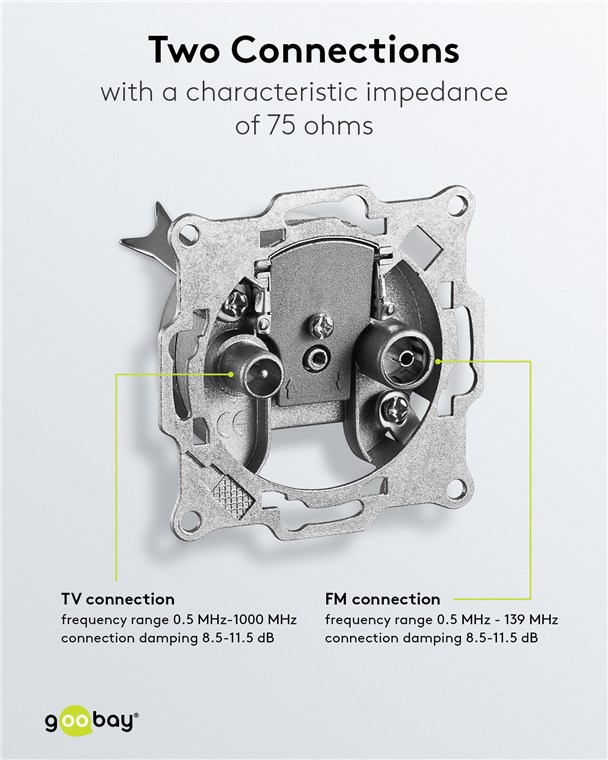

  • Characteristic impedance: 75 ohm
  • Without DC passage
Technical specifications
Signal transmission
through loss
3.5 dB
Connection loss radio connection
8.5–11.5 dB
Connection damping TV connection
8.5–11.5 dB
Frequency range radio connection
87.5–139 MHz
Frequency range TV connection Forward path
5–1,000 MHz
General
Markings
WEEE, CE
Packaging type
Bulk

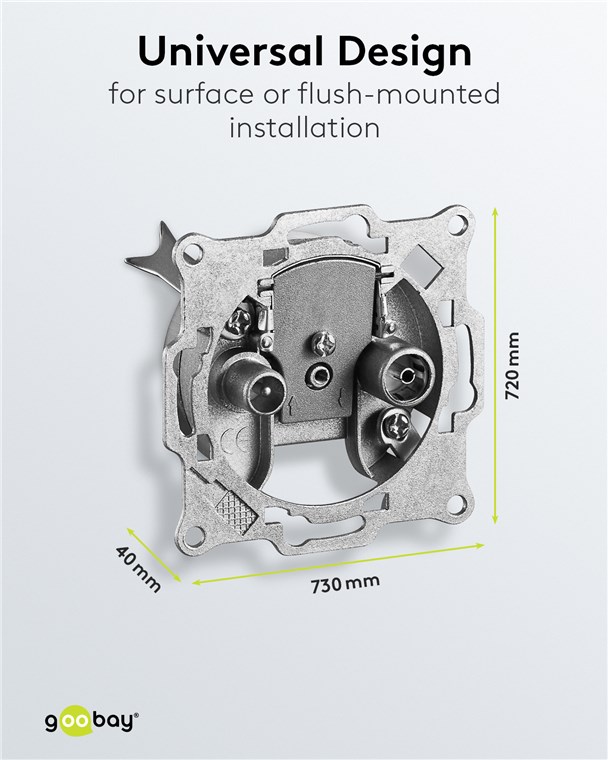

Dimensions / Weight
Length
720 mm
Width
40 mm
Height
730 mm
Consumption Unit
1 pc. in cardboard box
Downloads
Product data sheet pdf
£8.99 RRP
Packing units:
1 / 25 / 200
Item: 67044
EAN: 4040849670442
