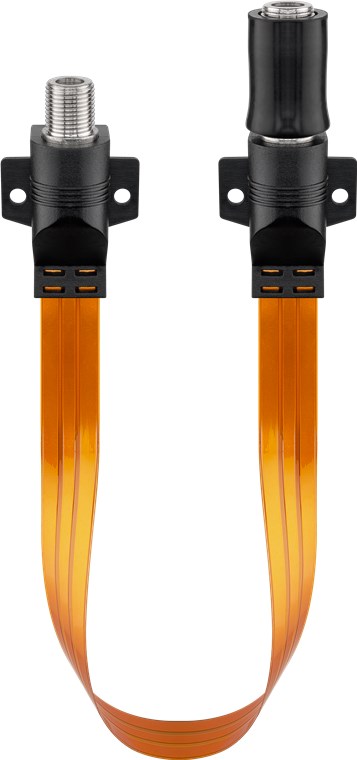

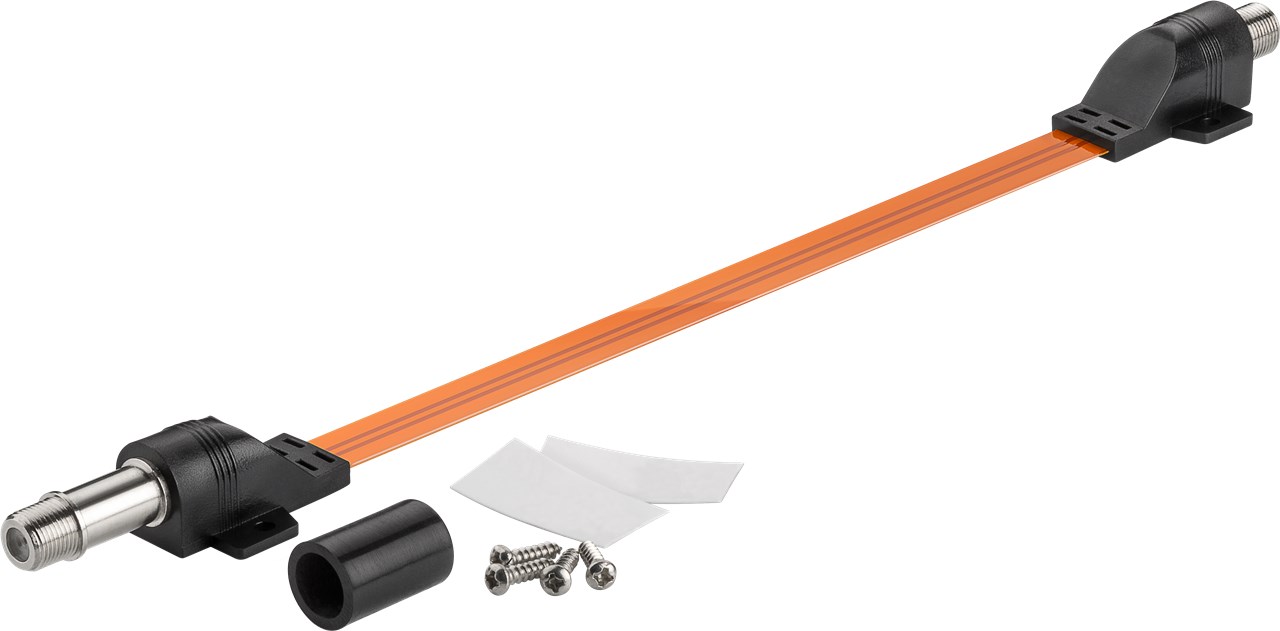

Waterproof SAT window feed-through, extremely flat (0.3 mm)
F socket > F socket
Waterproof SAT window feed-through, extremely flat (0.3 mm)
F socket > F socket
Article details
- Transparent SAT extension cable with PCB foil

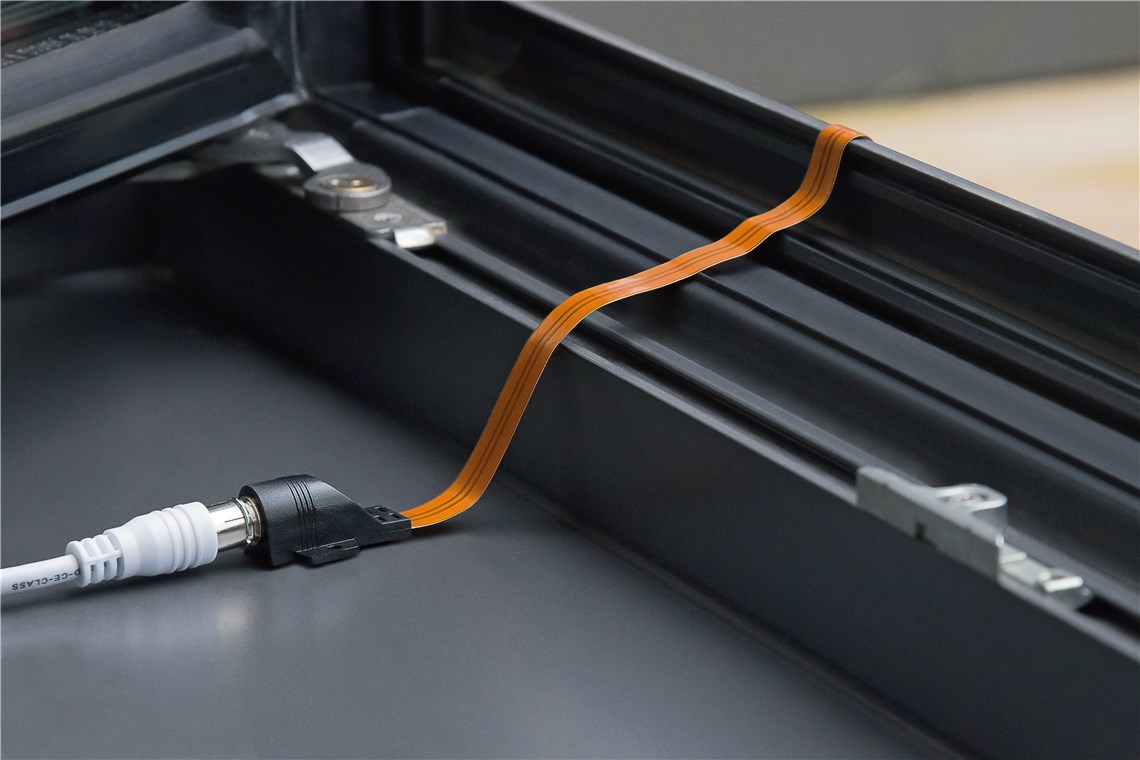

- For easy routing of coaxial cables through window and door frames with a small clearance without impairing the closing function
- Extremely flexible and flat with a thickness of only 0.3 mm
- Can be used with all commercially available SAT cables and antenna cables with F plugs
- Rubber grommet ensures waterproof F-connection.

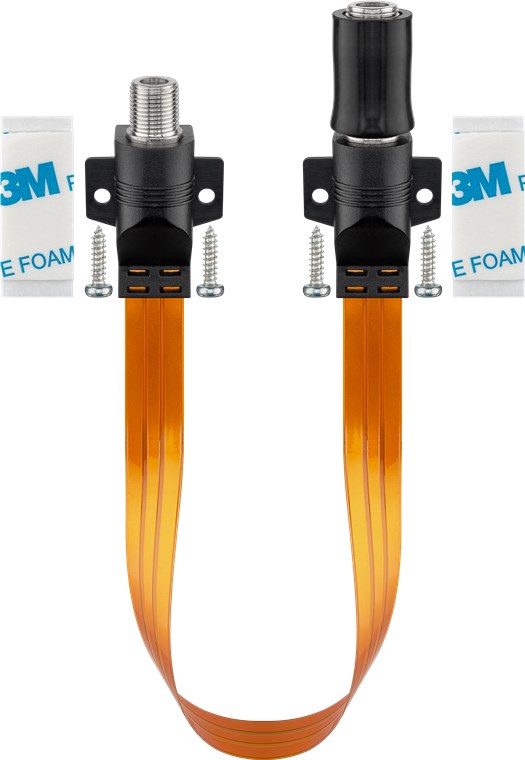

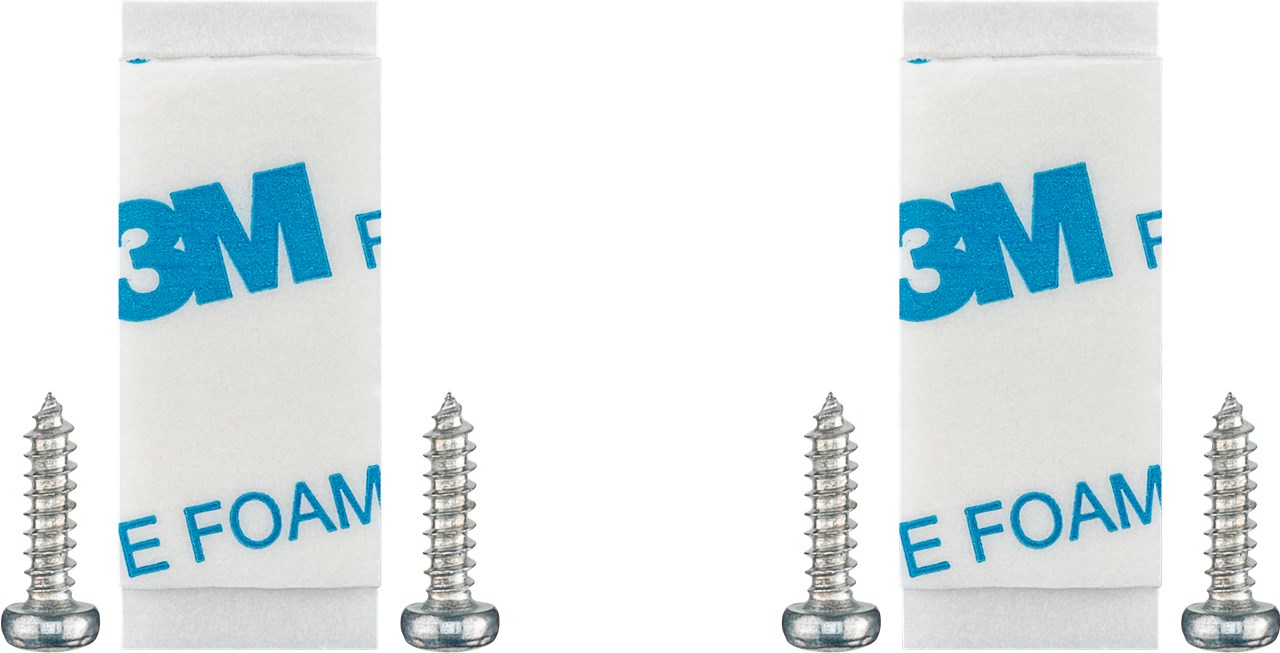

- Can be permanently attached due to screw fastening option
Technical specifications
Connections
Connection, type
F female
Connection 2, type
F female
Connection, length
42.5 mm
Cable
Cable length
0.2 m
Cable type
flat cable
Inner conductor material
CU (copper)
Cable sheath diameter (approx.)
0.3 mm
height of cable sheath
0.3 mm
width of cable sheath
12 mm
Signal transmission
Impedance
75 Ω
General
Markings
WEEE, CE
Packaging type
Bulk
Dimensions / Weight
Consumption Unit
1 pc. in polybag
Length
260 mm
Downloads
Packing units:
1 / 10 / 250 / 500
Item: 71408
EAN: 4040849714085
