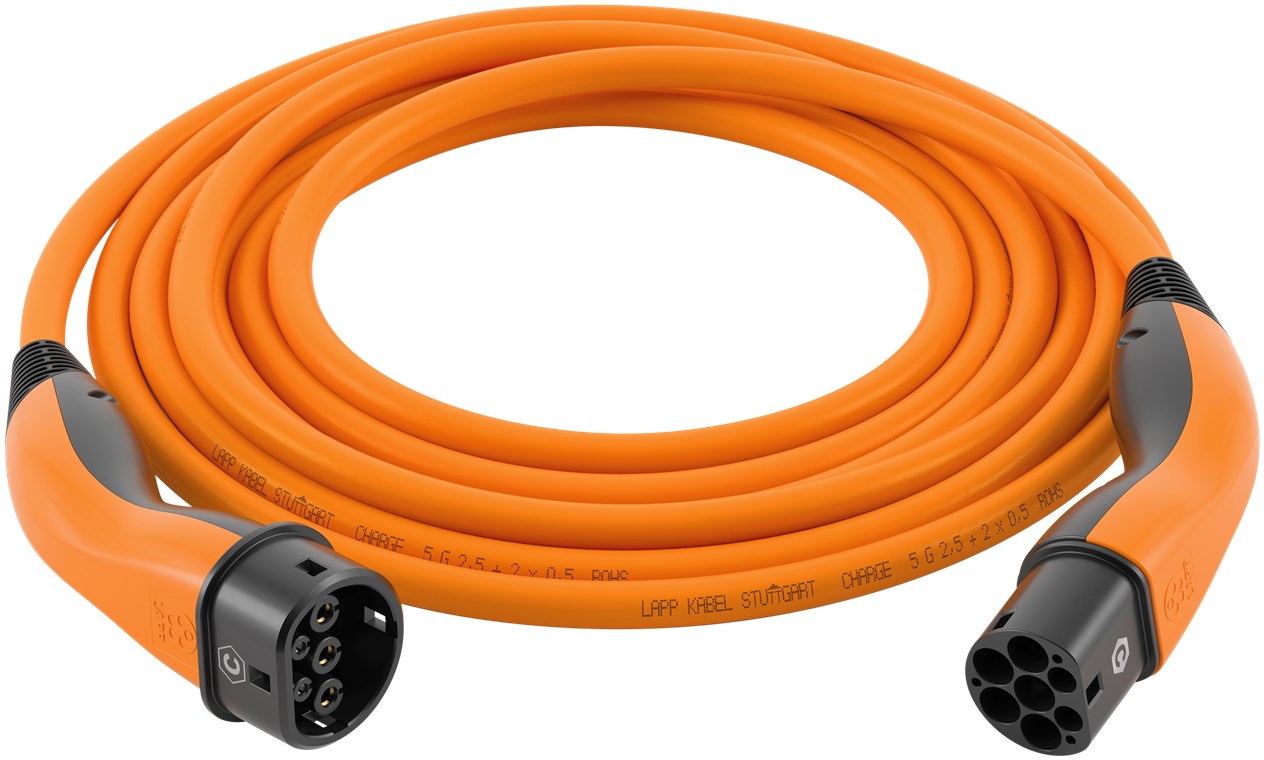

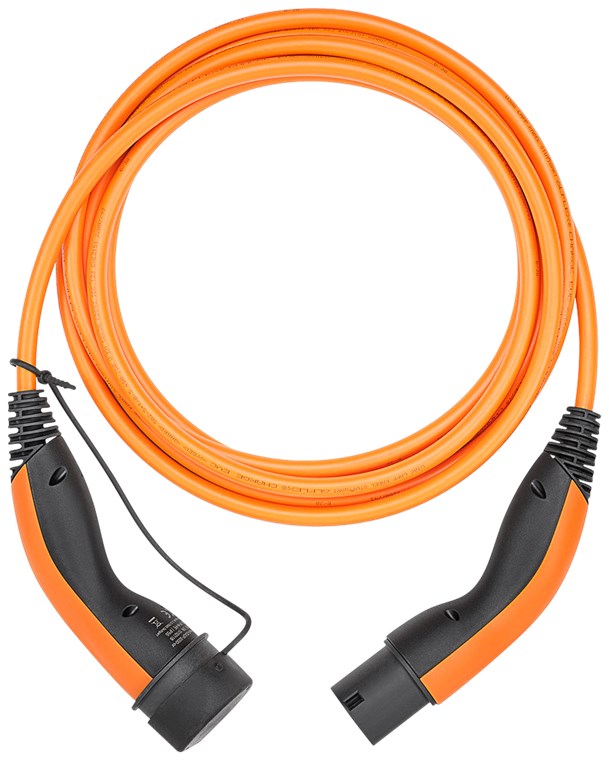

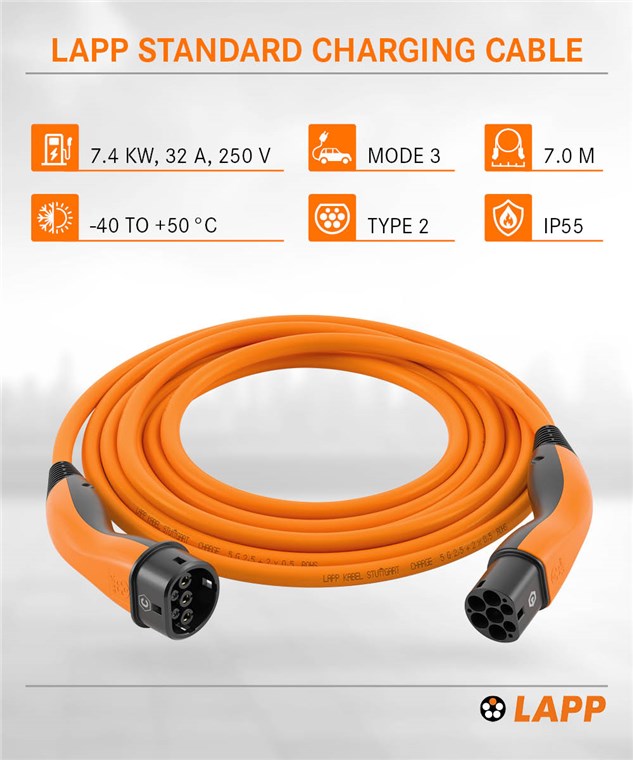

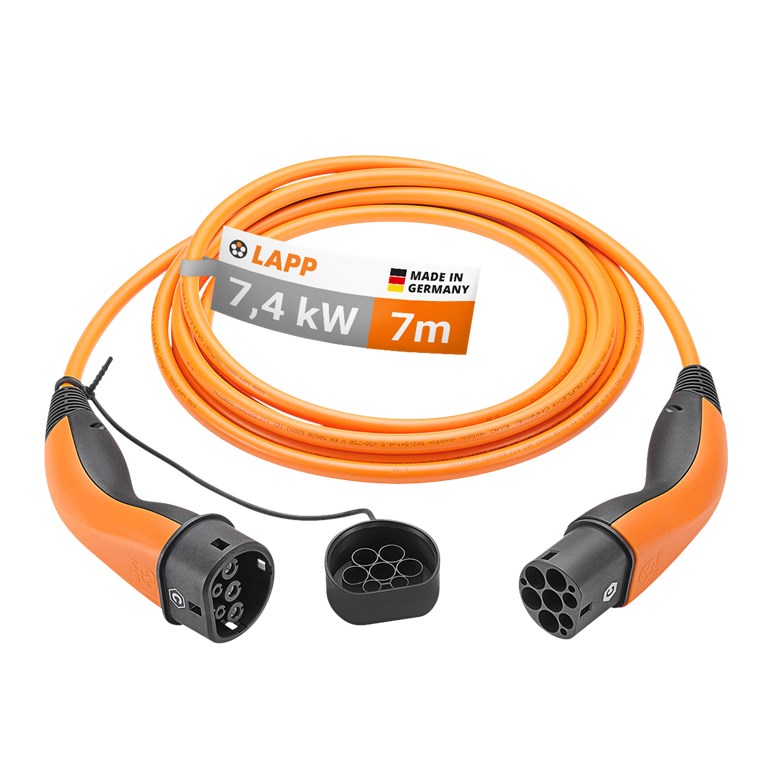

Type 2 Charging Cable, up to 7.4 kW, 7 m, orange
(5555934030) 32 A, 1 phase, for charging hybrid and electric cars with Type 2 connection
Type 2 Charging Cable, up to 7.4 kW, 7 m, orange
(5555934030) 32 A, 1 phase, for charging hybrid and electric cars with Type 2 connection
Article details

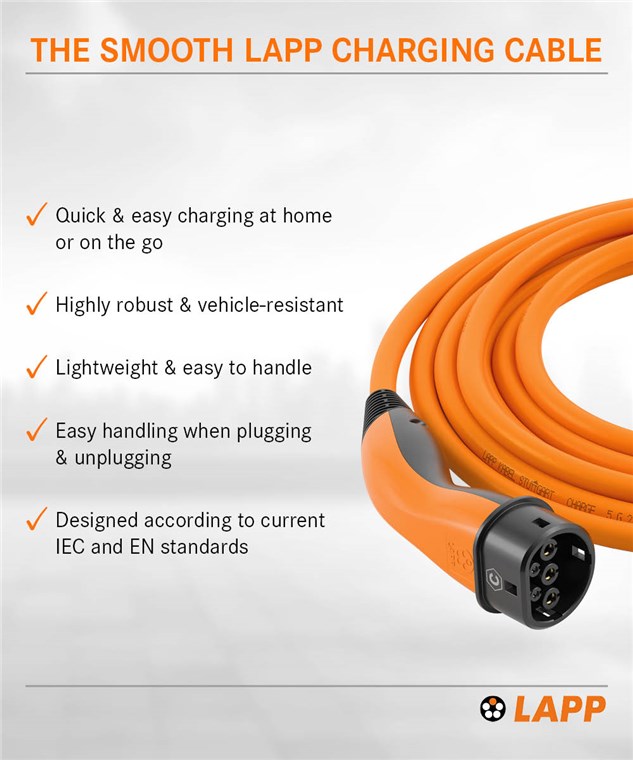

LAPP Type 2 standard charging cables connect your EV to the charging station, charging pole or wallbox - for easy charging at home or on the road. Simply connect the coupling of the cable to the car and the plug to the power source. The charging process is automatically started and finished by the on-board electronics. LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
- Ideal solution for safe, stable charging at a nominal voltage of 250 V (AC) without an intermediate in-cable control box

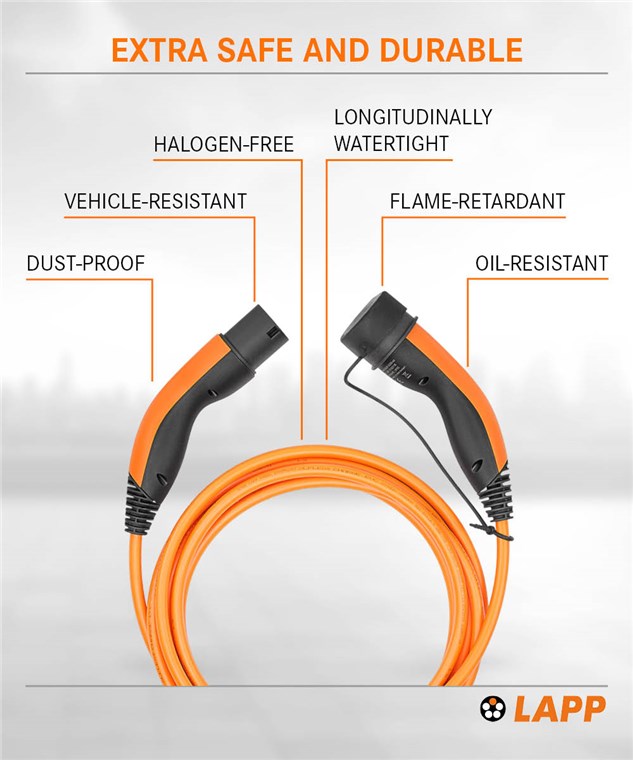

- Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability

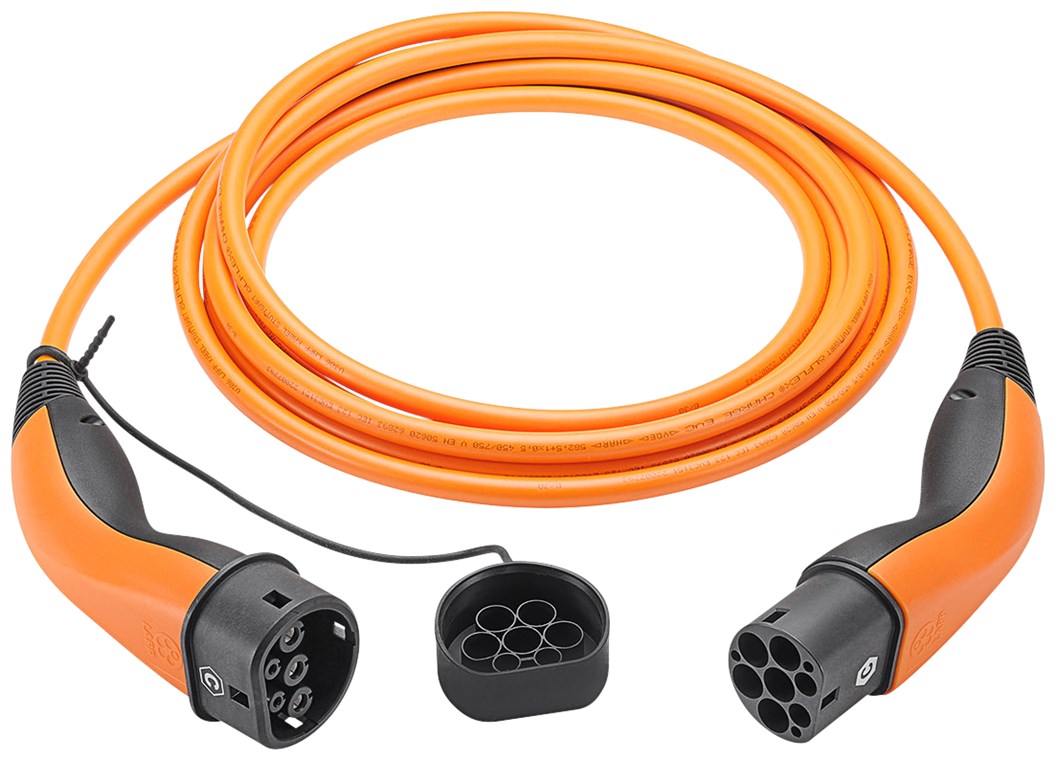

- The cover cap on the vehicle-side coupling protects against ingress of dust, dirt and water in between charges.
- Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)
- The Type 2 charging cable from LAPP allows easy and fast charging with up to 7.4 kW at a public or private charging station or wallbox.
Language scope of the instruction manual (online):
Albanian, Arabic, Bosnian, Czech, Danish, Dutch, English, Finnish, French, German, Hebrew, Icelandic, Italian, Norwegian, Polish, Romanian, Russian, Spanish, Swedish, Turkish, Ukrainian.
Technical specifications

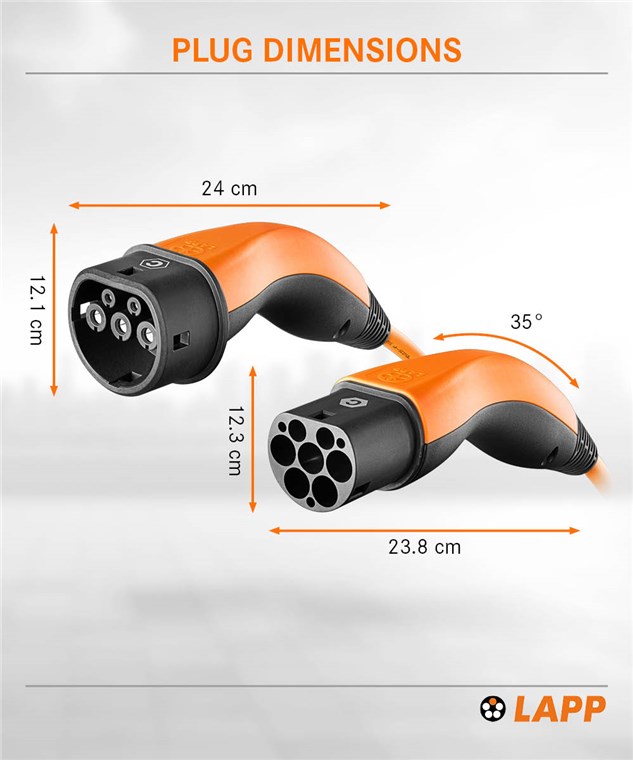

Connections

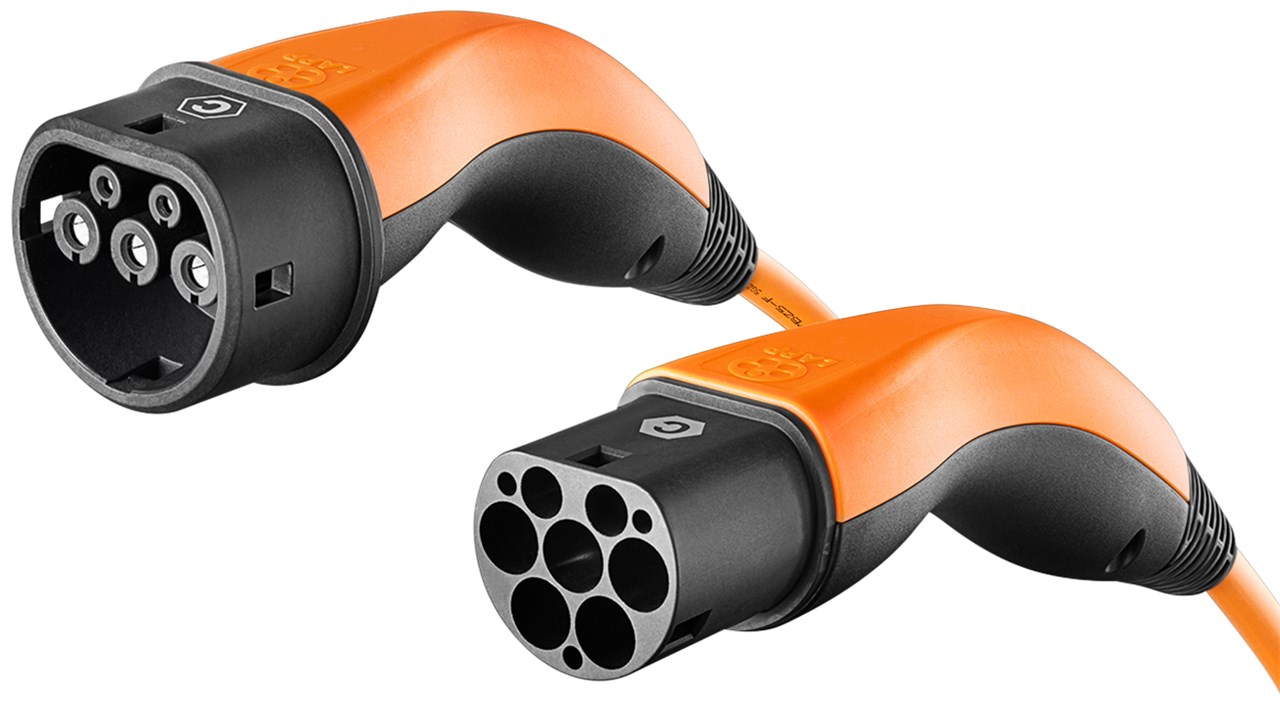

Connection, type

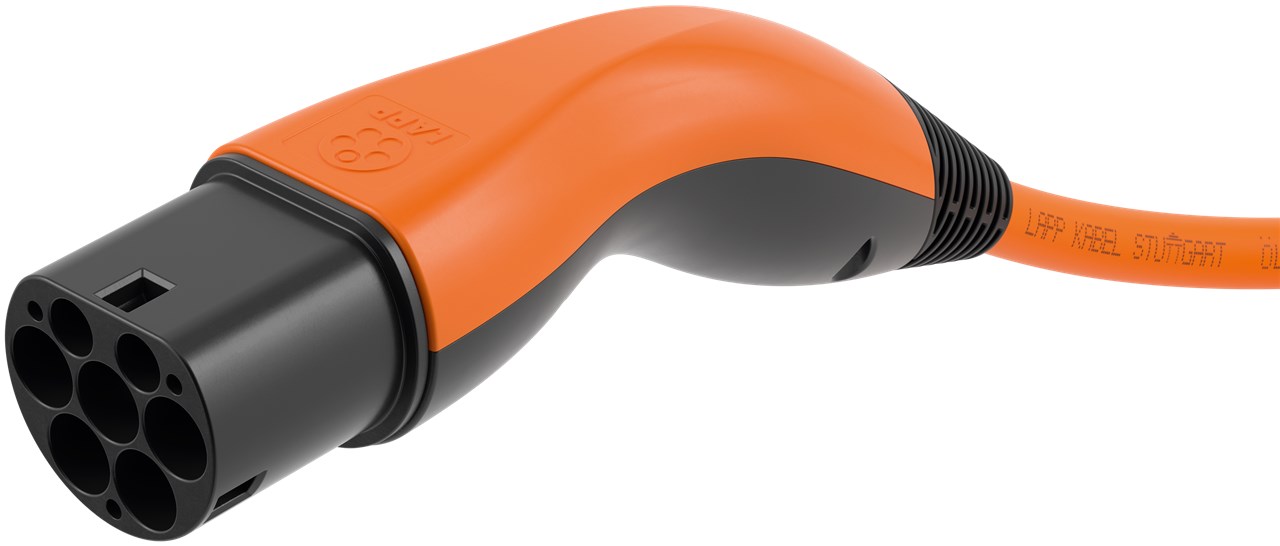

type 2 female plug
Connection 2, type
type 2 male plug
Performance
Loading capacity up to
7.4 kW
Charging mode
Mode 3
Rated voltage
250 V (AC)
max current capacity
32 A
Cable
Number of phases
1
Inner conductor cross-section
6 mm²
Cable type
smooth cable
Material cable sheath
ÖLFLEX®CHARGE
Cable length
7 m
General
Markings
WEEE, CE
Operating temperature up to
50 °C
Operating temperature from
-40 °C
protection class
IP55
Color
orange
Special feature
Silver-plated, corrosion-resistant contacts, solid rubberized ergonomic grip design, VDE certified, VDE certified
Model designation
5555934030

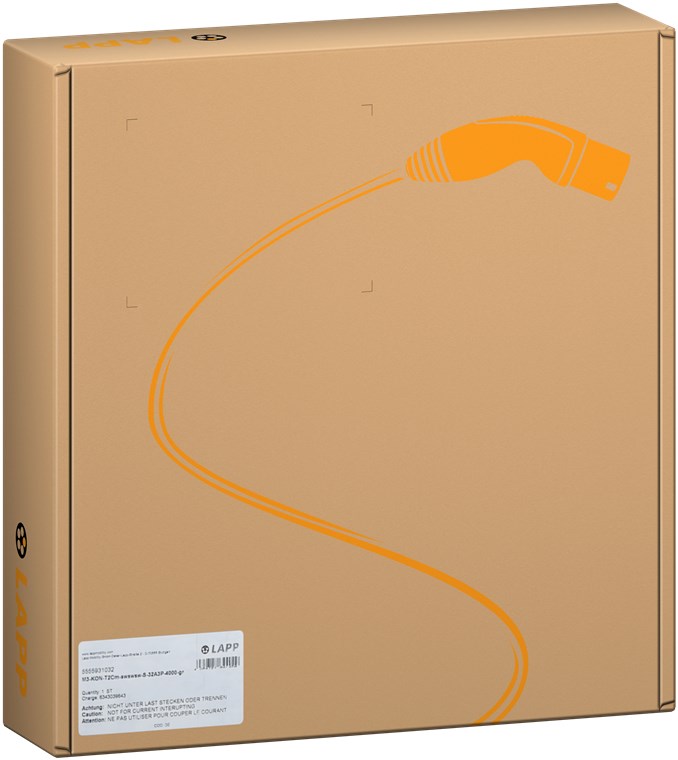

Packaging type
Retail Box
Dimensions / Weight
Weight
2630 g
SCIP
CAS no.
7439-92-1
chemical substance
Pb
SCIP no.
92ac866b-d201-4c6e-ac0a-f5f1b01570c7
Downloads
Packing units:
1 / 48
Item: 61791
EAN: 4064727469751
