Goobay

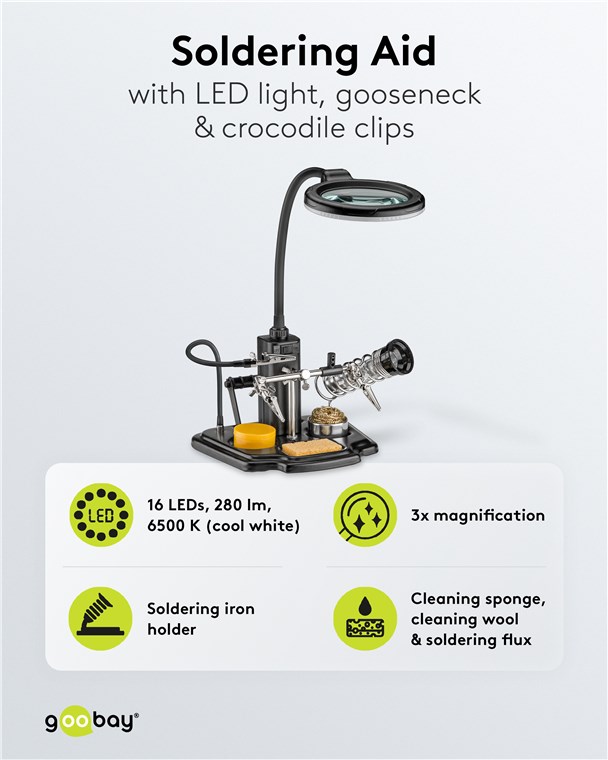

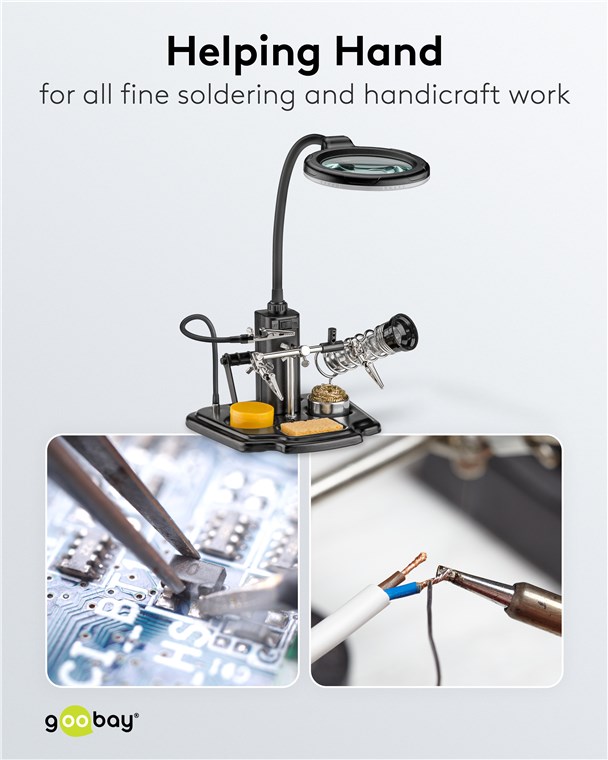

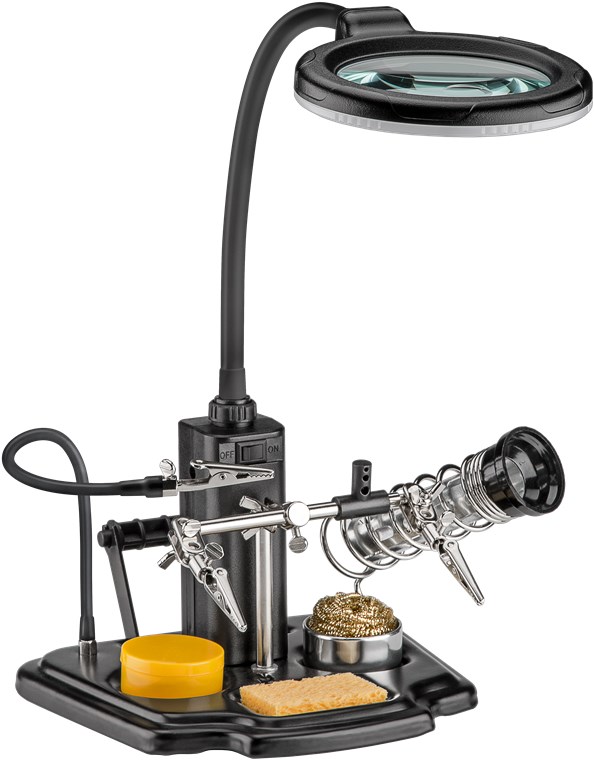

Soldering Aid with LED Light & Gooseneck Crocodile Clip
helping hand for all fine soldering and handicraft work
/22
Product and packaging similar. Subject to modifications and errors.
Goobay
Soldering Aid with LED Light & Gooseneck Crocodile Clip
helping hand for all fine soldering and handicraft work
Article details

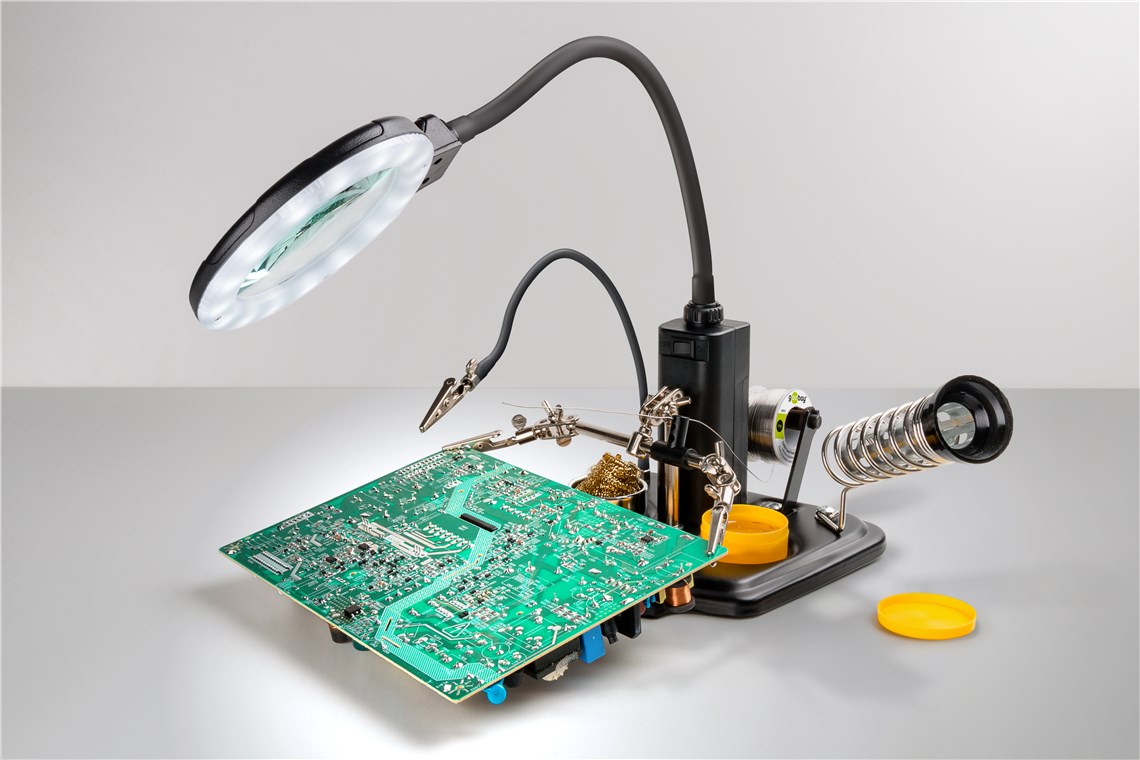

Craftsmanship meets precision. The magnifying lamp brings out every detail, no matter how fine. The crocodile clamps fix the workpiece securely and keep your hands free for precise working, making precise handiwork even easier and error-free.

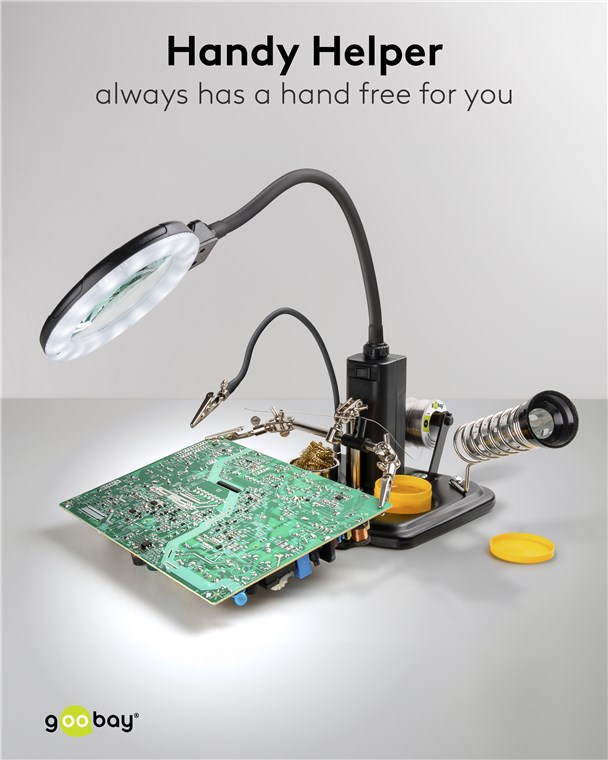

  • Holder for precision work on electronic parts such as circuit boards, also ideal in model making, arts and crafts and jewellery repair

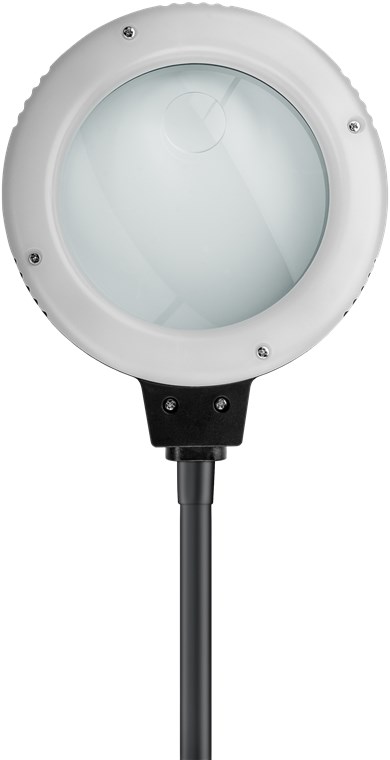

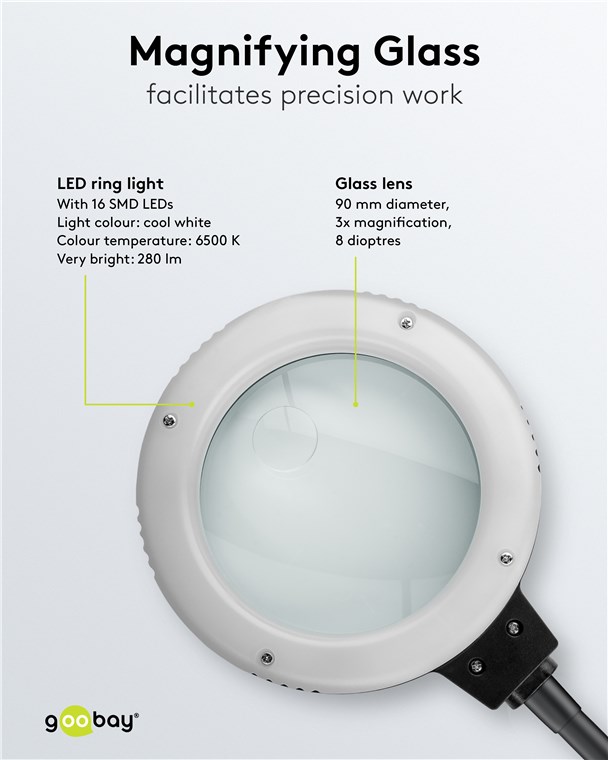

  • 3x magnifying glass with 90 mm diameter and illumination with 16 LEDs makes even fine detail work possible
  • Flexibly adjustable goosenecks on magnifying glass and crocodile clip enable work from any angle

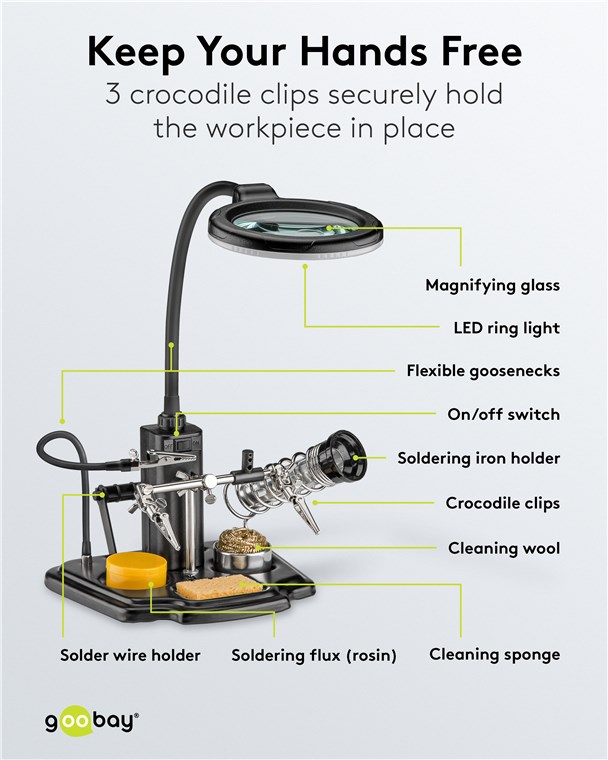

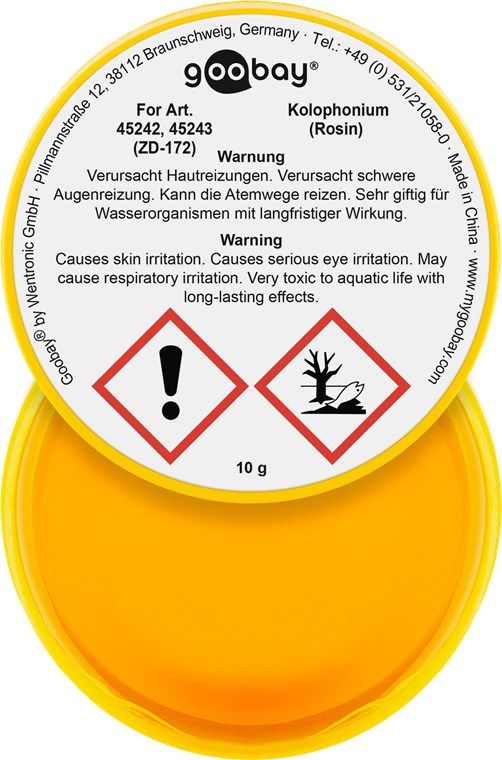

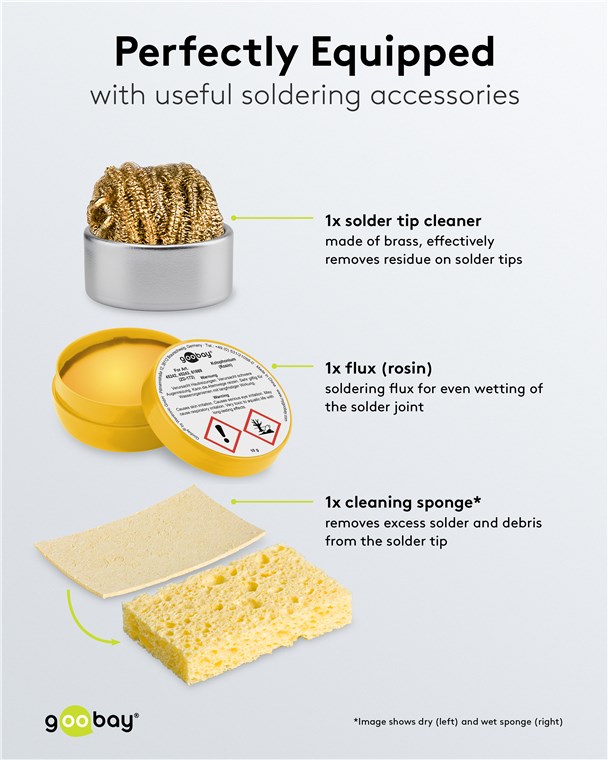

  • The perfect addition to your soldering iron, equipped with an integrated solder wire holder, soldering iron holder, 3x crocodile clips, cleaning sponge, cleaning wool and soldering flux (rosin)
  • Brass soldering tip cleaner effectively removes residue on solder tips and prevents rust buildup by dry-cleaning the tip
  • Cleaning sponge removes excess solder and debris that accumulates during work (supplied in dry condition, expands on contact with water)

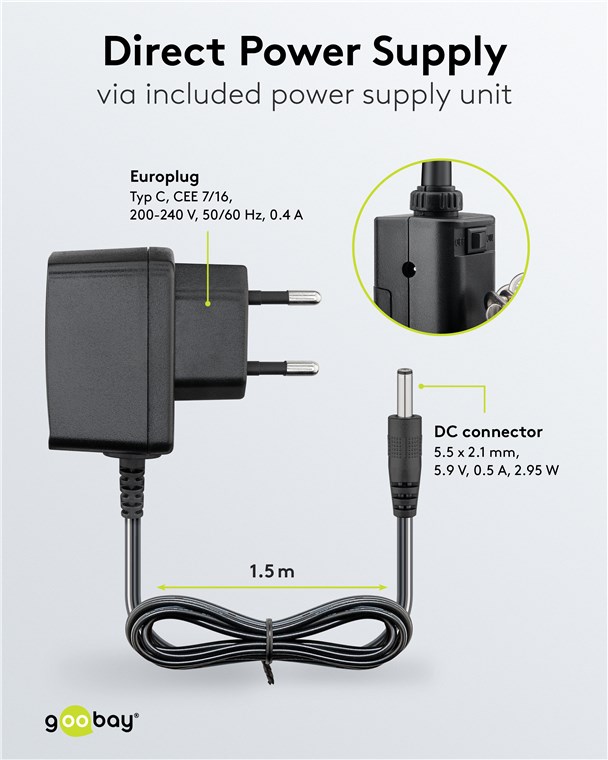

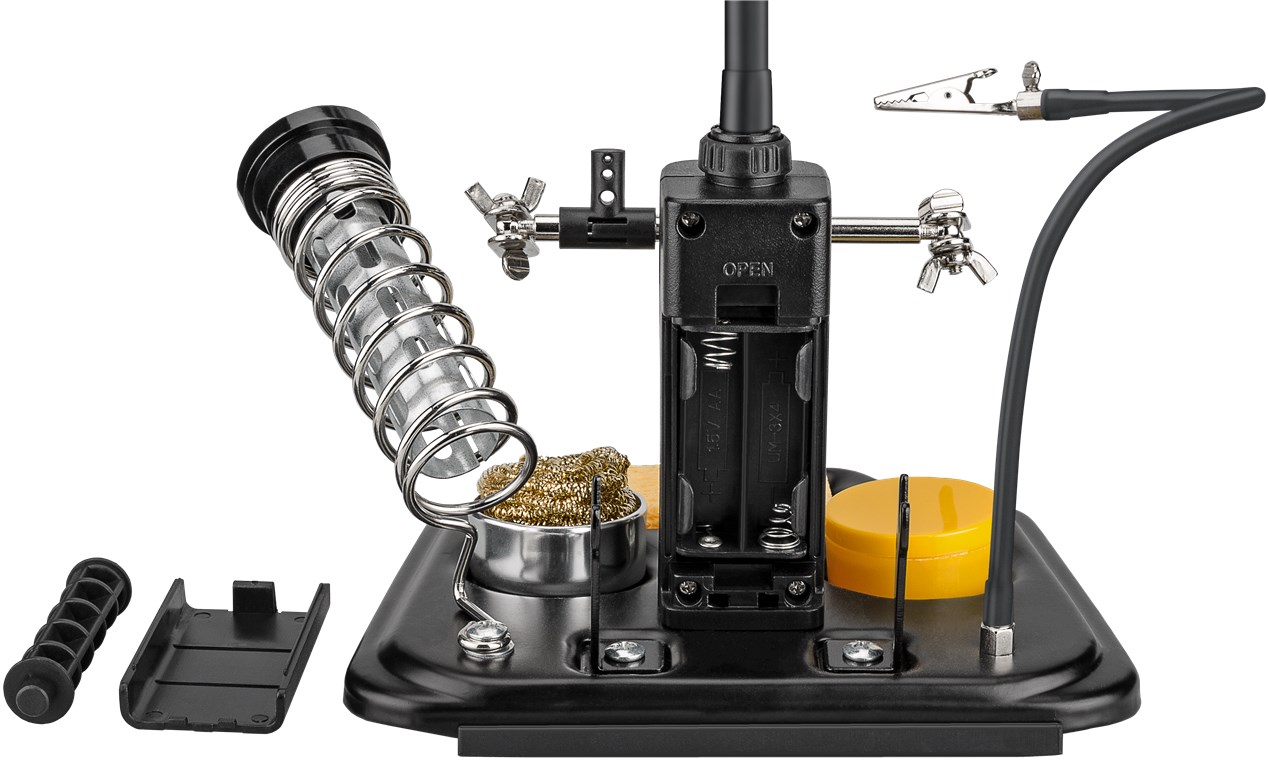

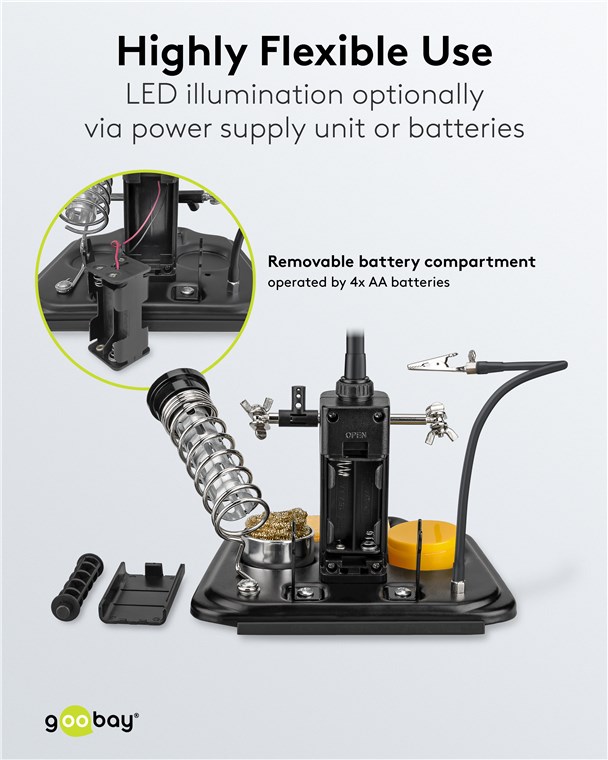

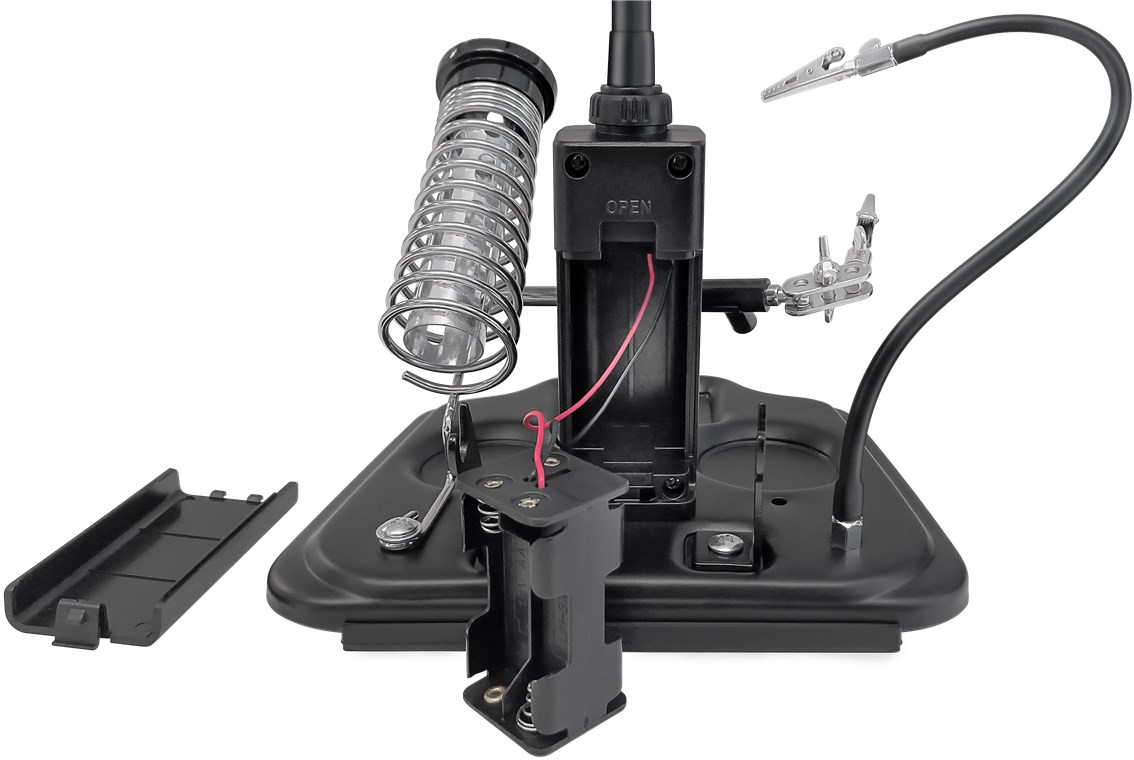

  • Operated either via mains adapter (Europlug) or 4x AA batteries (batteries not included)
Technical specifications
Connections
Connection, type
Europlug (type C, CEE 7/16)
ErP
Average active efficiency
79.14 %
No-load power consumption
3.1 W
Performance
luminous source
light emitting diode (LED)
Luminous color
cool white
Illuminate-Type
SMD LED
Power consumption
1.4 W
Colour temperature from
6500 K
Dimmability
not dimmable
Colour temperature to
6500 K
Useful luminous flux (Φuse)
Useful luminous flux (Φuse) in a wide cone (120°)
Non-directional or directional light source
NDLS
color rendering index
80 Ra
Lamp service life factor
0
weighted energy consumption
3 kWh/1.000 h
operating voltage
6 V (DC)
Number of LEDs
16
Device connections
Input, Voltage Range
100 - 240 (AC) V
Output, min. amperage
0.5 A
Output, min. amperage
0.5 A
Cable
Cable length
1.5 m
Build
cover type
lens
General
protection class
IP20
Appliance Class
III
Energy efficiency rating
F
rated lamp lifetime
30000 hrs.
Color
black
Material
plastic, metal, glass
Markings
WEEE, CE
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Width
59 mm
Height
64 mm
depth
39 mm
Weight
1300 g

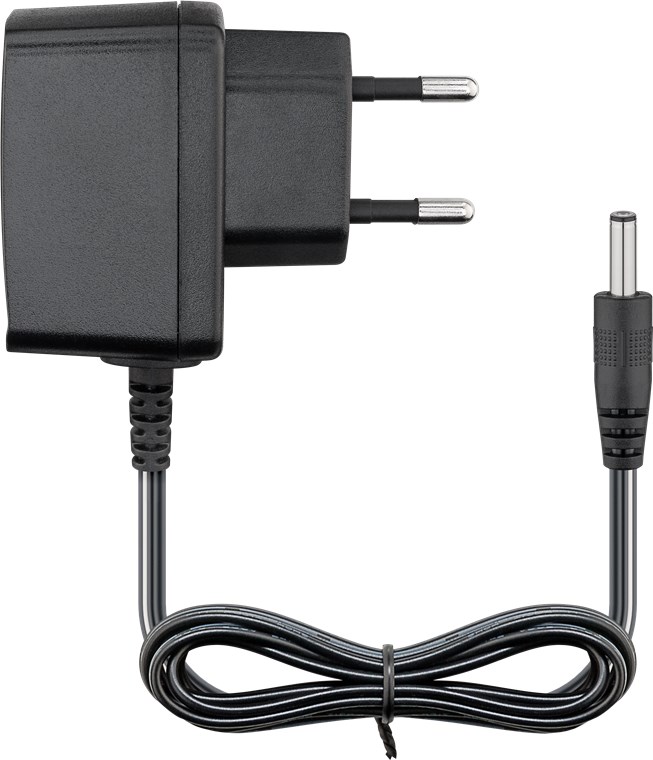

accessory - Power supply
Output current
0.5 A
Input AC frequency
50/60 Hz
Input voltage
200-240 V
Input current
0.4 A
Output voltage
5.9 V
Output power
3.0 W
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
en, de, fr, it, es, nl, da, sv, pl, cs, fi, ro, el, ru, tr
Downloads
Instruction Manual pdf MDS / MSDS pdf Product data sheet pdf Product data sheet pdf Declaration of conformity pdf
Packing units:
1 / 4
Item: 45241
EAN: 4040849452413
