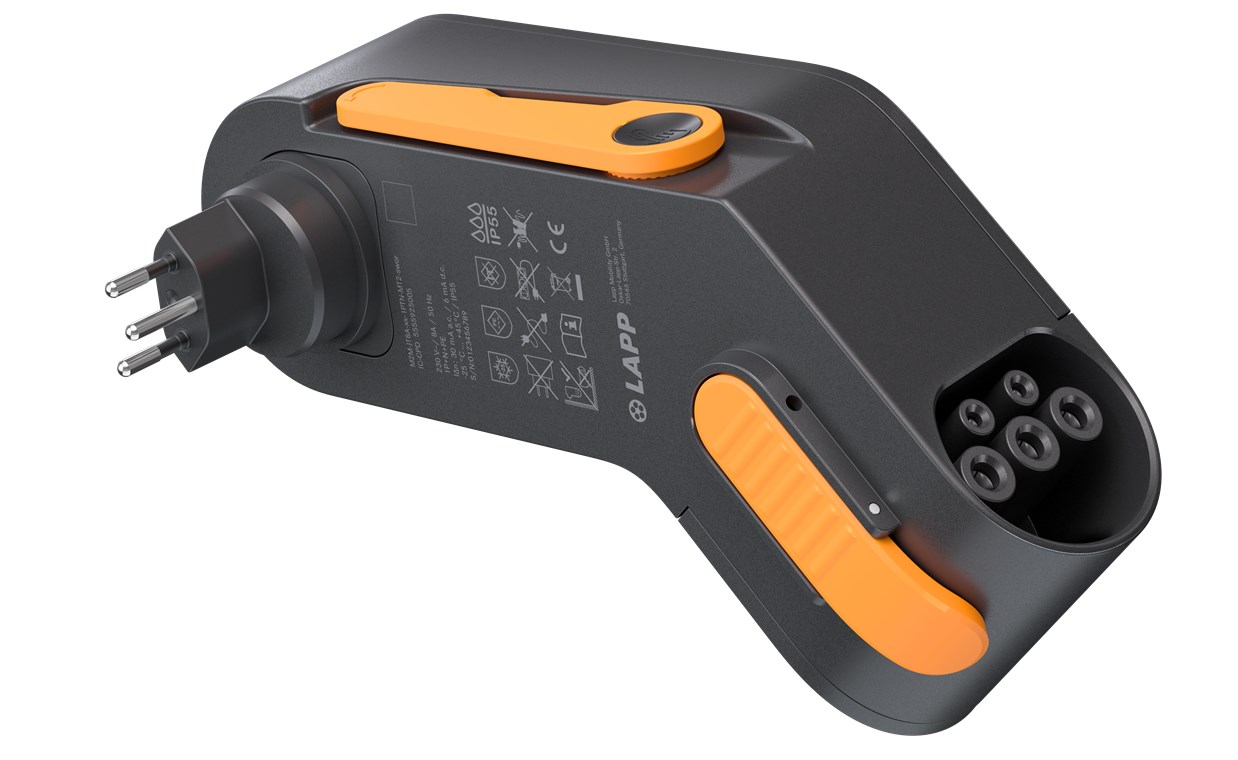

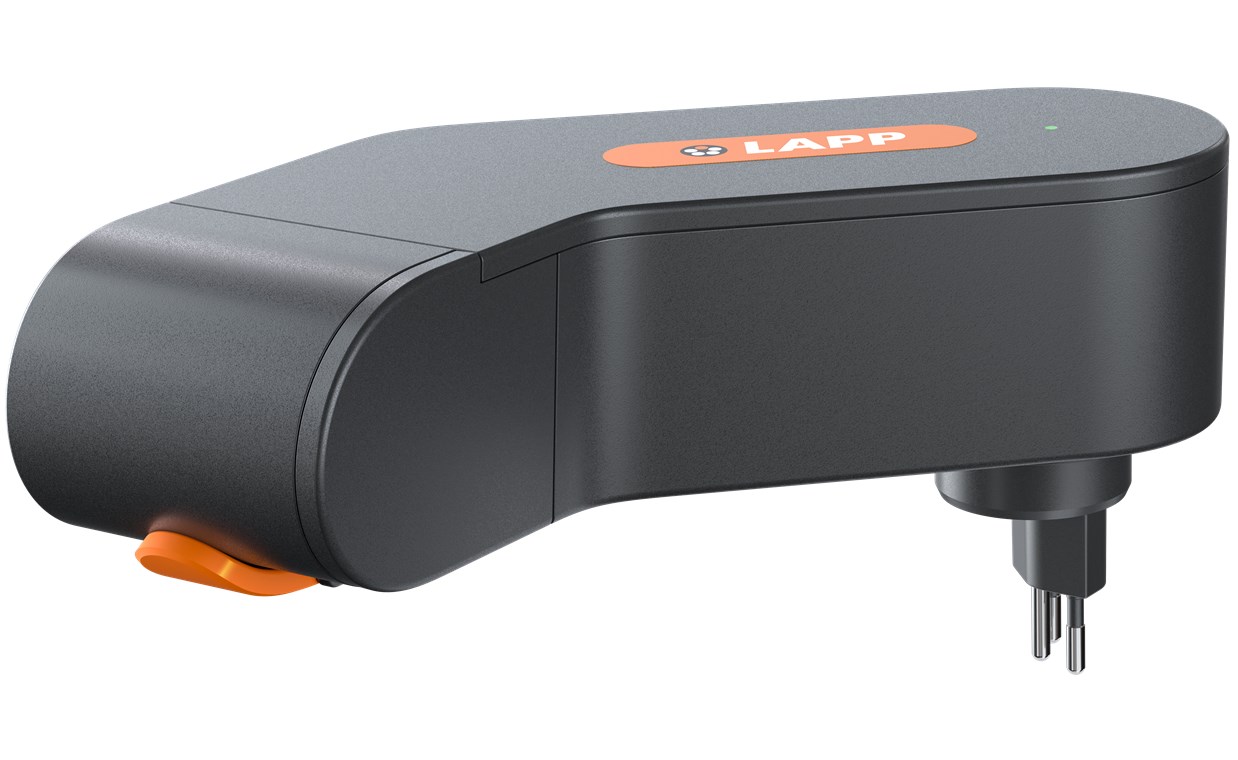

Mobility Dock Switzerland, EV Charger
(5555925005) up to 1.8 kW, 8 A, 1 phase, for mobile charging of hybrid and electric cars with Type 2 connection
Mobility Dock Switzerland, EV Charger
(5555925005) up to 1.8 kW, 8 A, 1 phase, for mobile charging of hybrid and electric cars with Type 2 connection
Article details

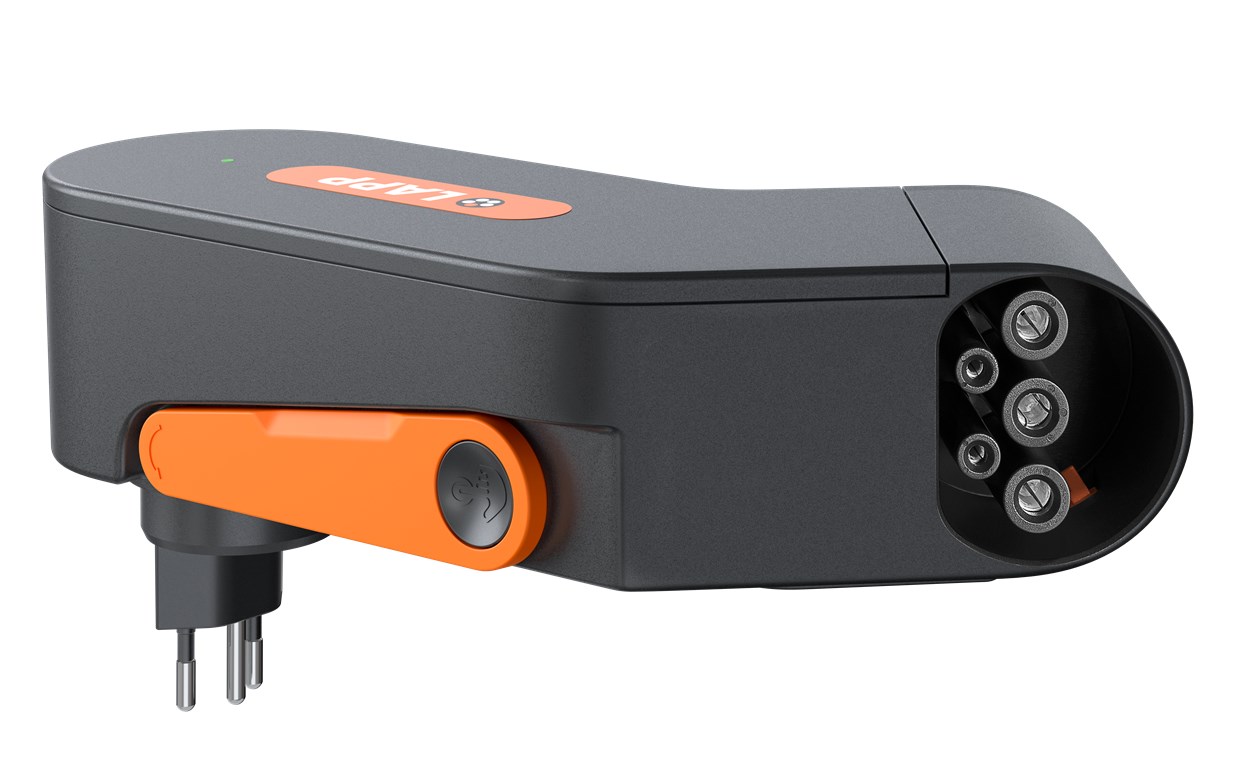

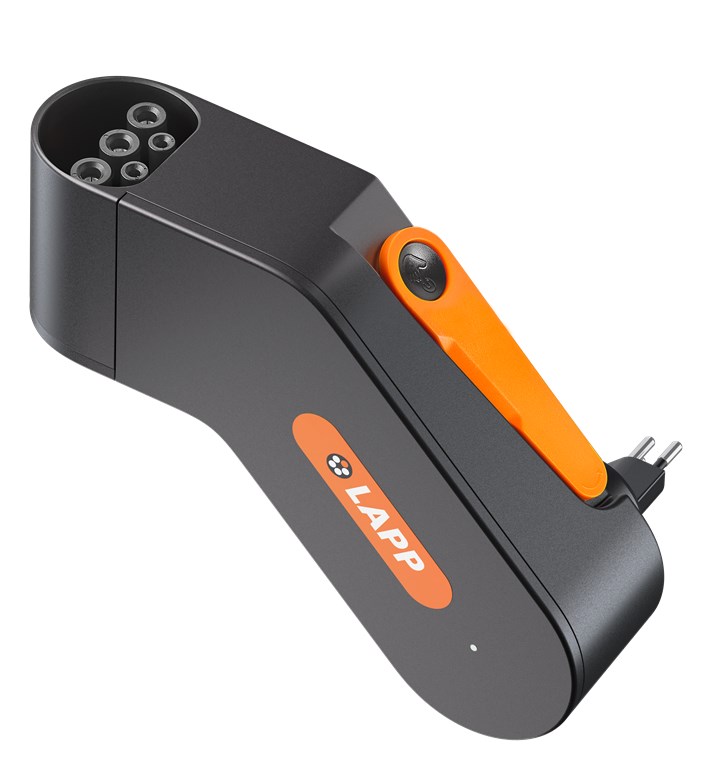

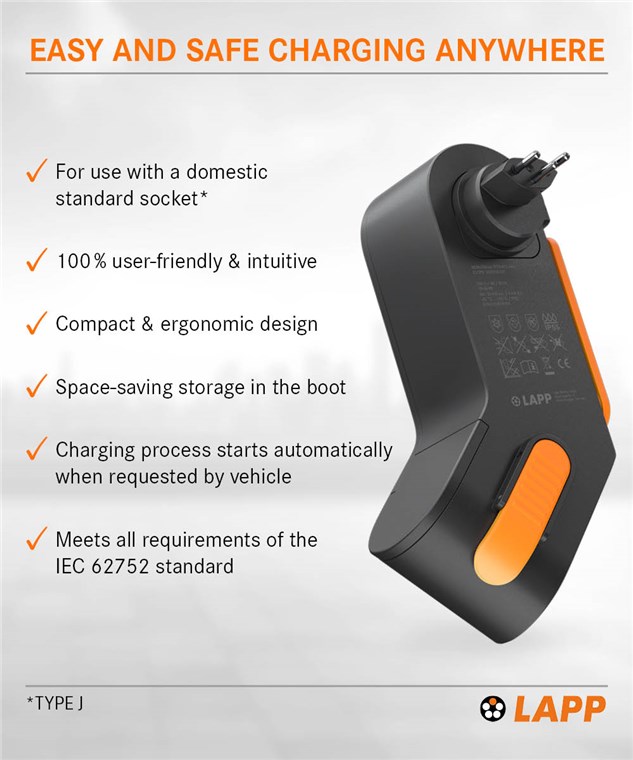

The LAPP Mobility Dock is a handy solution for supplying electric vehicles in Switzerland with power even without a charging station, charging pole or wallbox. As an emergency charger, it is the perfect companion on the road to charge plug-in hybrids (PHEV) and battery electric vehicles (BEV).

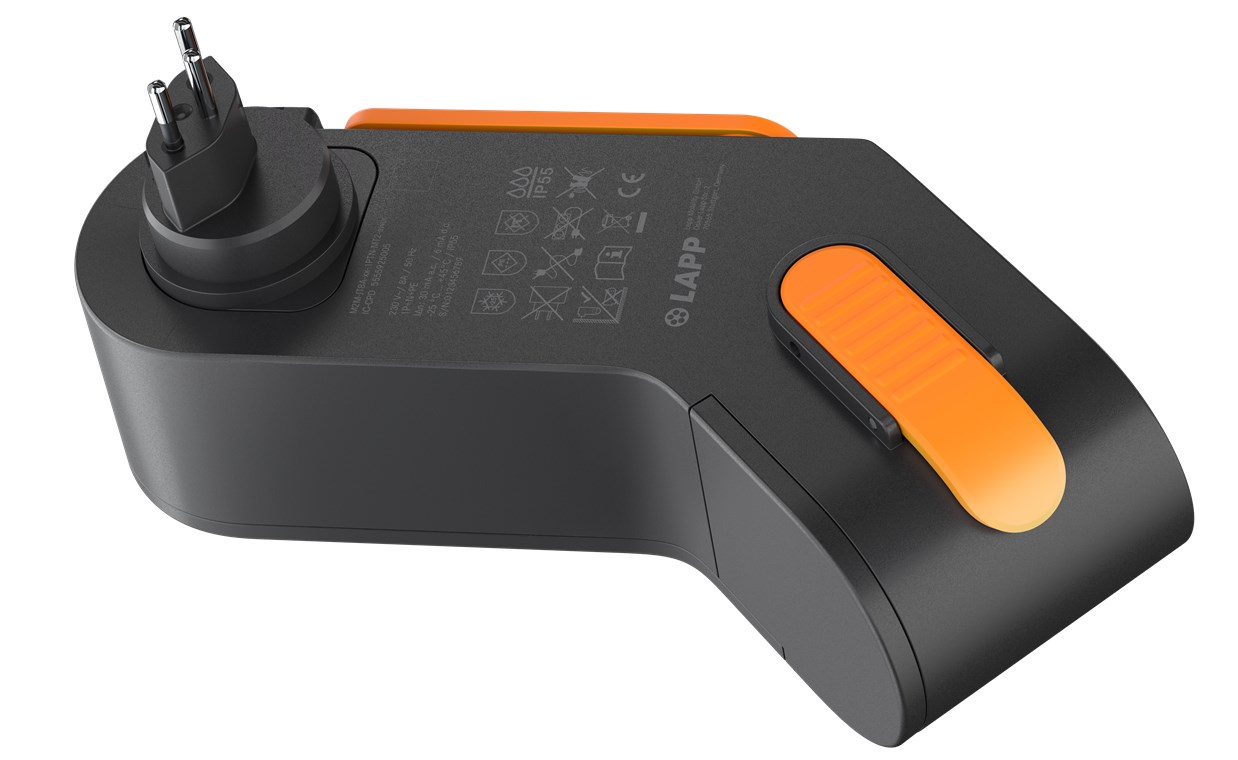

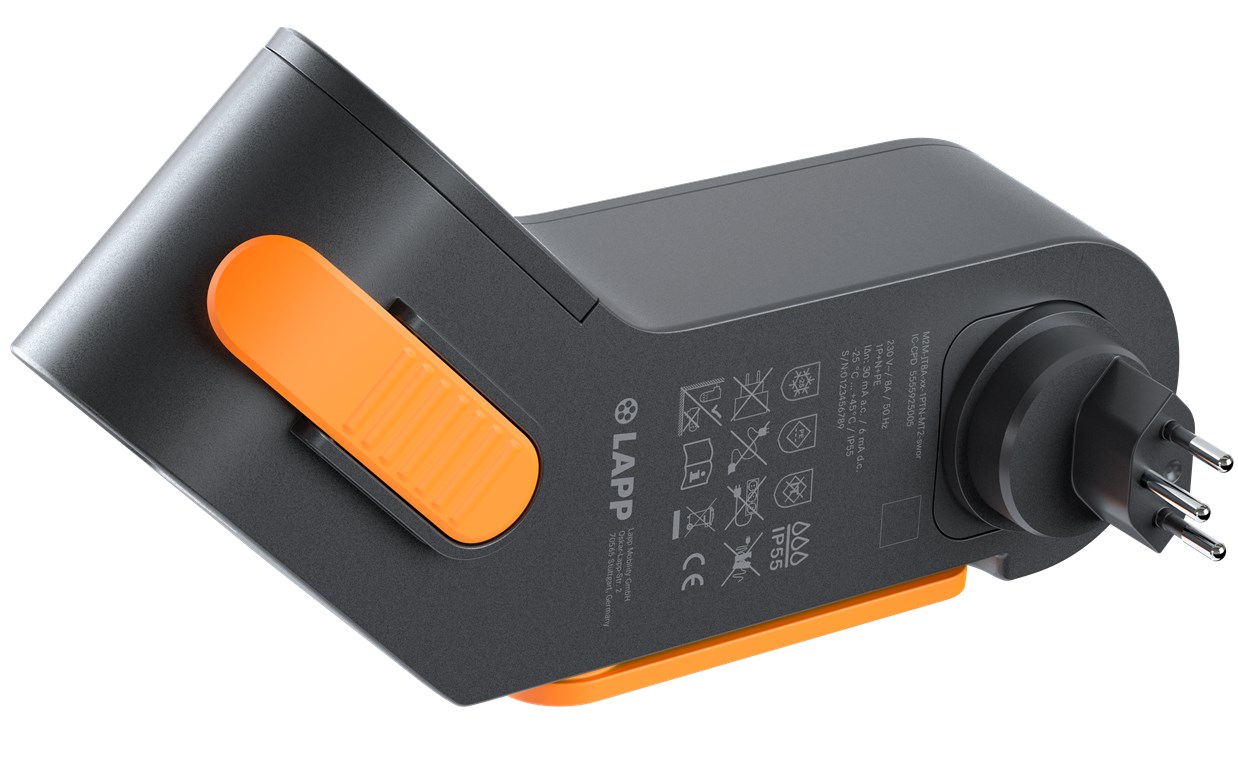

- The LAPP charger for simple, mobile charging via Swiss standard sockets (plug type J) is ideal for on the road or in the garage at home

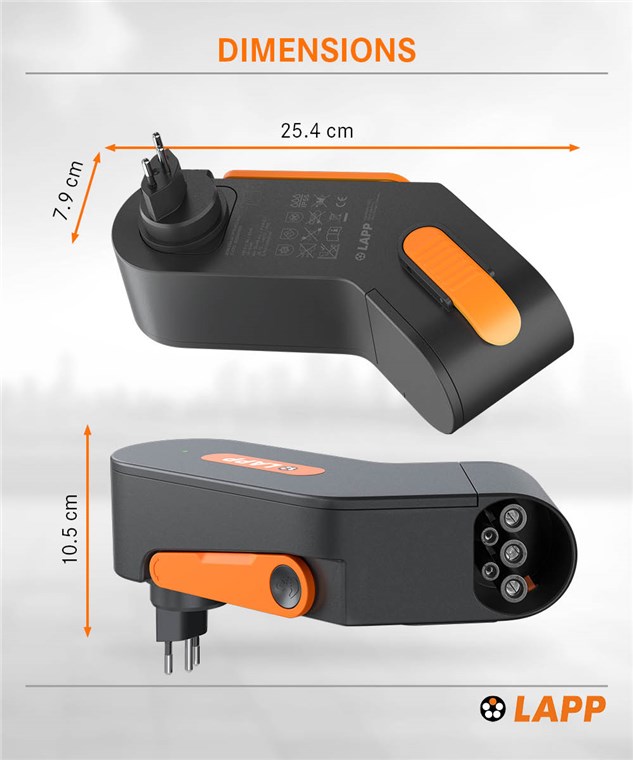

- The space-saving charging station for Mode 3 cables can easily be stored in the boot thanks to its compact design of 255 mm x 135 mm x 114 mm.
- The EV emergency charger is oil-resistant and supports a charging power of up to 1.8 kW at a nominal voltage of 230 V, operating temperature is -25 °C to +45 °C

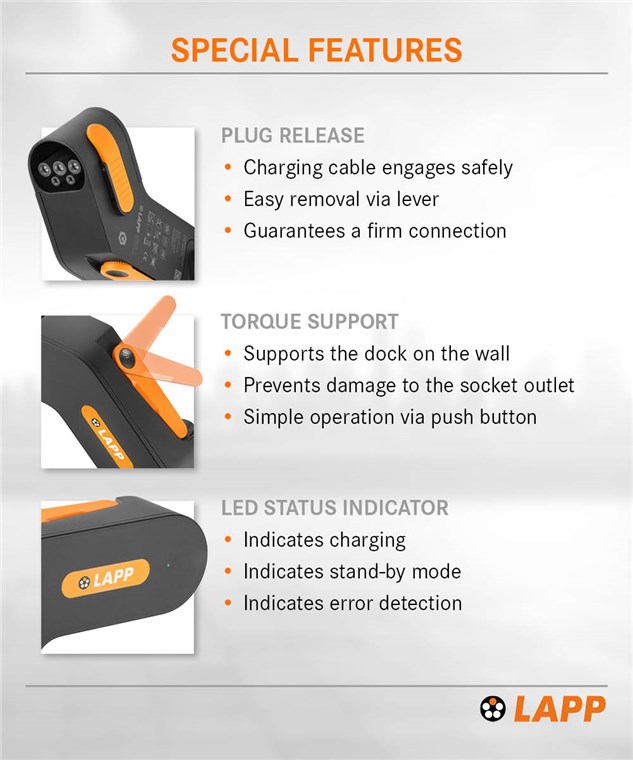

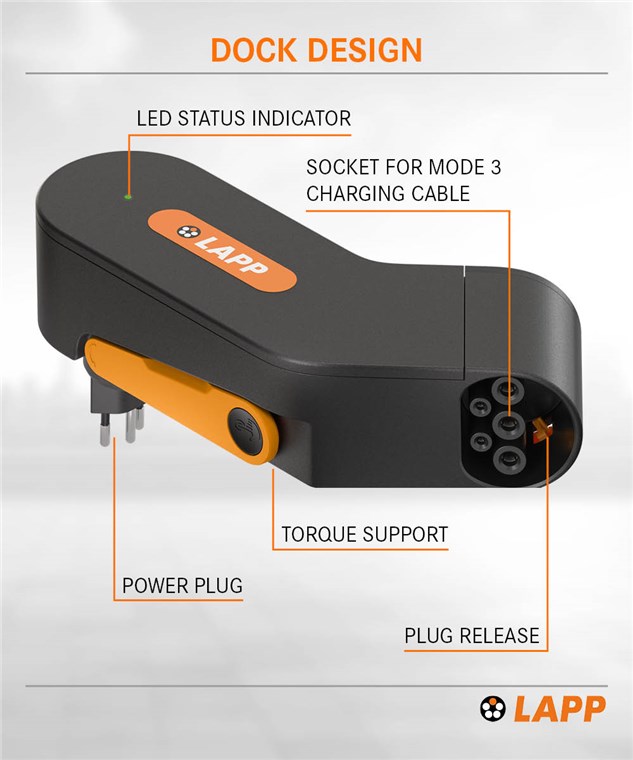

- The integrated lever releases the connected Type 2 cable after the charging process with just one simple movement.

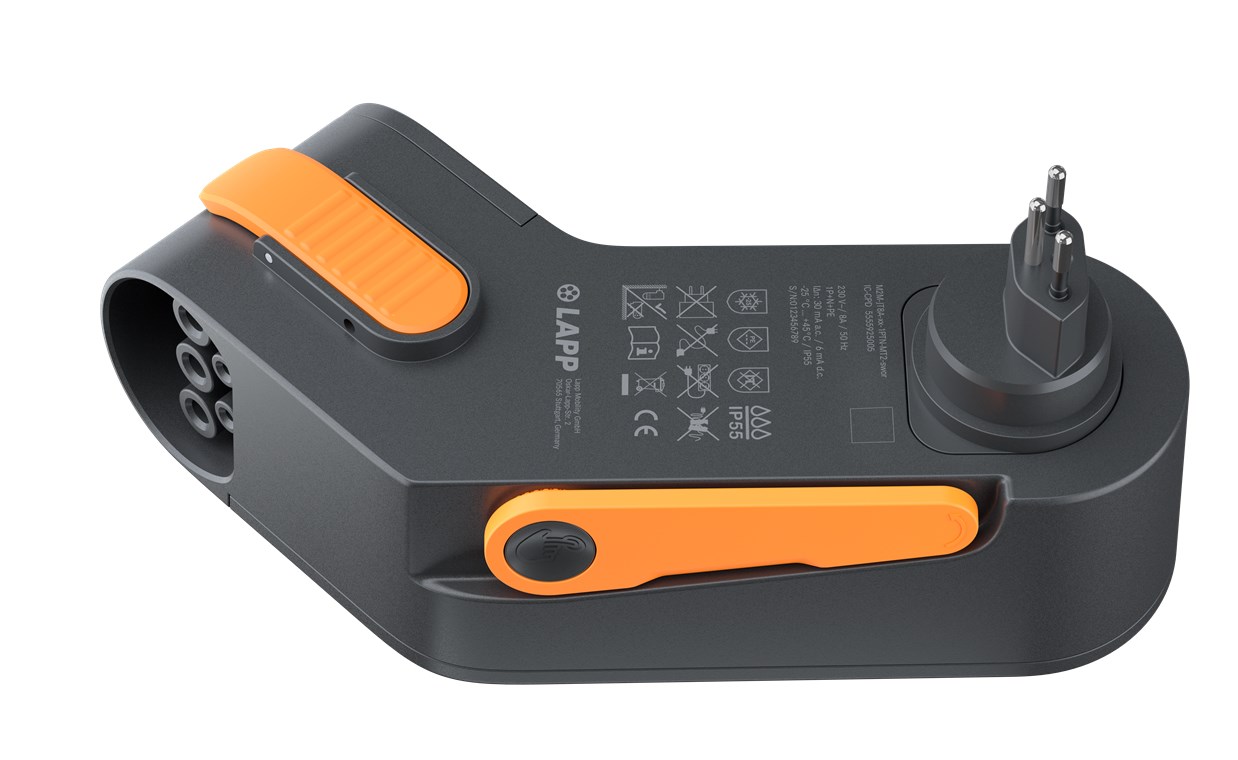

- Fold-out torque support for bracing against the wall reduces the weight of the dock and cable on the connected outlet.

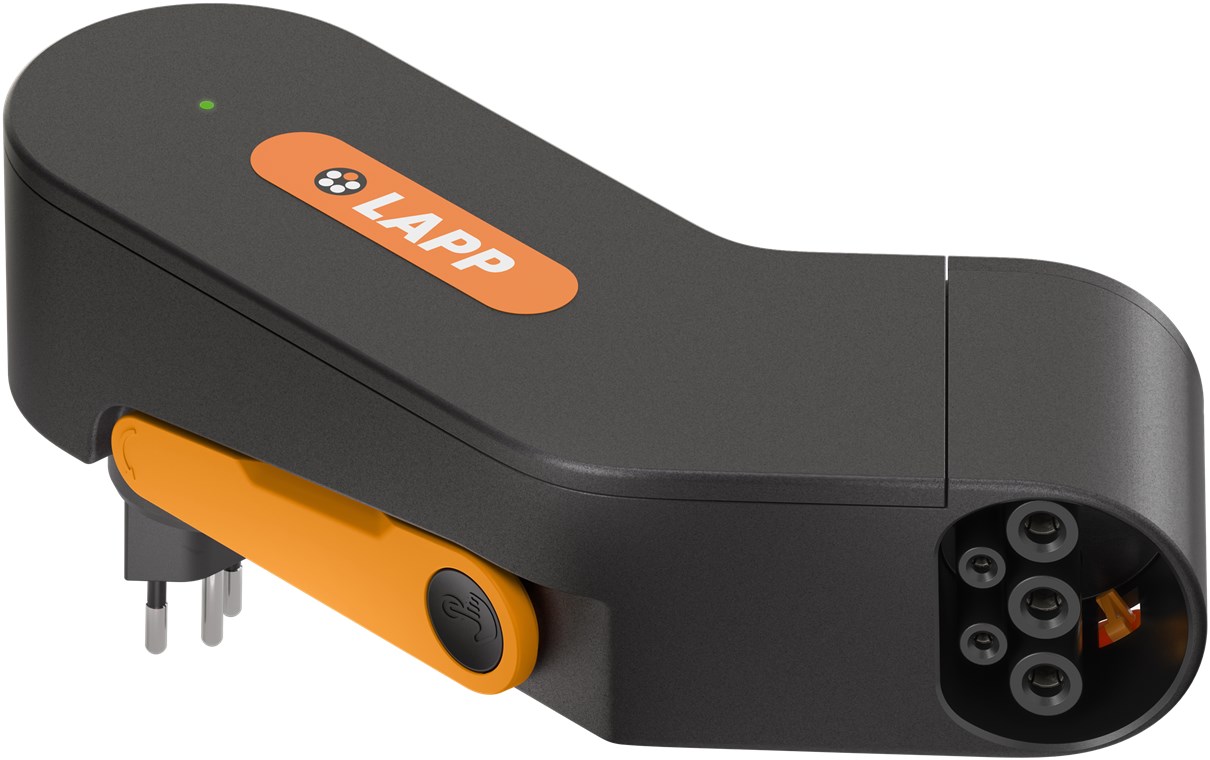

- The car charger is equipped with a convenient LED indicator lamp in the housing.

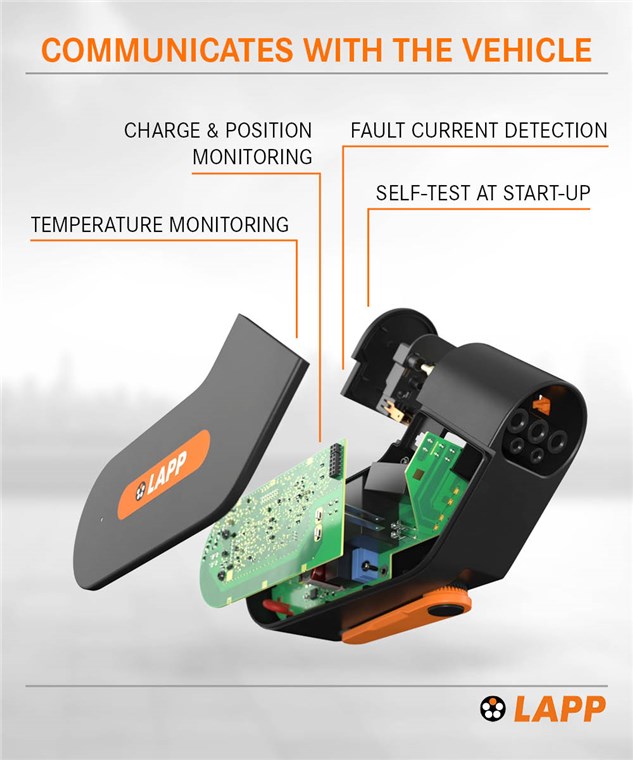

- The EV charger is particularly safe thanks to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB).
Technical specifications
Connections
Connection, type
Swiss male plug (type J)
Connection 2, type
type 2 female socket
Performance
Loading capacity up to
1.8 kW
Charging mode
Mode 2
Rated voltage
230 V (AC)
max current capacity
8 A
Cable
Number of phases
1
General
protection class
IP55
Model designation
5555925005
Color
anthracite, orange
Markings
WEEE, CE
Special feature
Charge control
Operating temperature from
-25 °C
Operating temperature up to
45 °C
Packaging type
Retail Box
Dimensions / Weight
Width
135 mm
Height
255 mm
depth
114 mm
Weight
750 g
SCIP
SCIP no.
20cd942d-99e7-43d3-8768-20bdf67c8677
chemical substance
Pb
CAS no.
7439-92-1
Downloads
Packing units:
1 / 96
Item: 65417
EAN: 4064728065341
