LED Underfit Lamp with Motion Detector
under-cabinet lighting with 160 lm and cool white light (6500 K), perfect for cupboards, cabinets, drawers, corridors and garages
LED Underfit Lamp with Motion Detector
under-cabinet lighting with 160 lm and cool white light (6500 K), perfect for cupboards, cabinets, drawers, corridors and garages
Article details
- 20 LEDs of the kitchen cabinet lighting provide soft lighting.
- Switch for 3 modes: OFF/ON/Auto (light and motion sensor activated)
- Auto mode: under-cupboard lights automatically switch on lights when motion is detected in dark environments, switch-off delay approx. 18 s
- Under-counter lighting made of high quality aluminium and PC, IP20 – only suitable for indoor use, not waterproof.

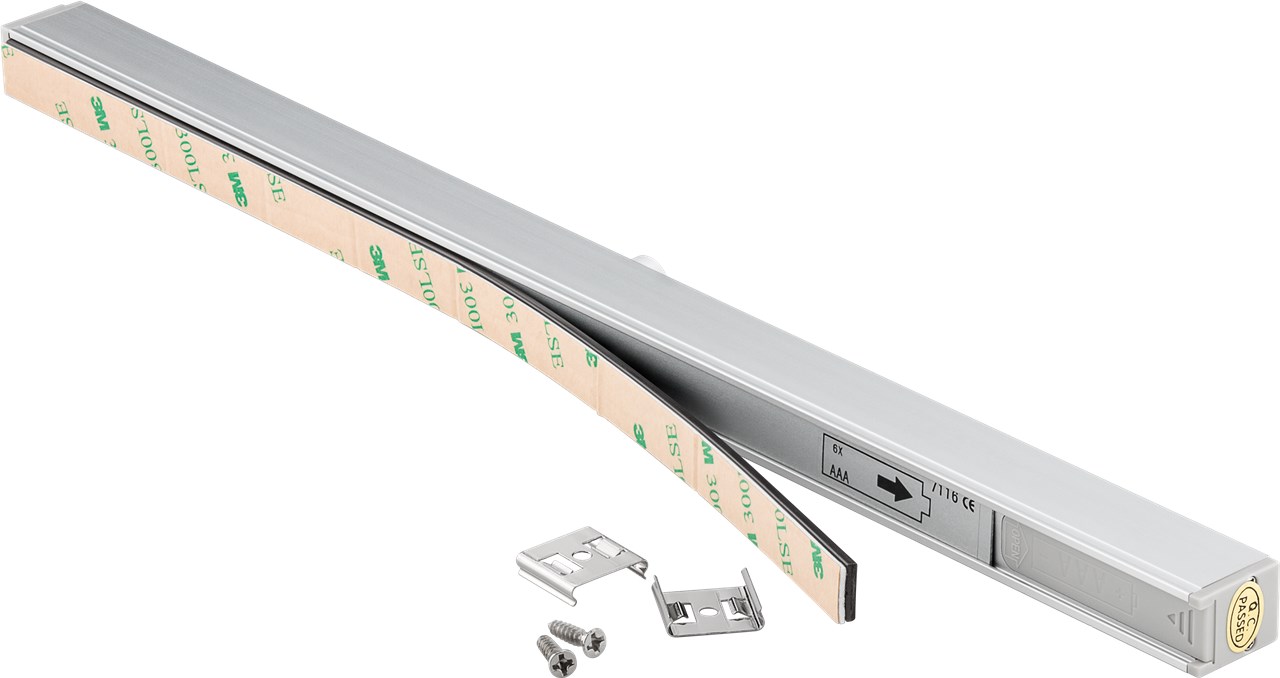

- Easy to install (includes accessories): 1. with magnetic strip and 3M adhesive tape or 2. with 2x screws and 2x mounts
- Requires 6x 1.5 V AAA batteries (not included in delivery)
Technical specifications
Battery
Number of Cells
6 pieces
Voltage
1.5 V
rechargeable
no
Performance
luminous source
light emitting diode (LED)
Illuminate-Type
SMD 2835 LED
operating voltage
9 V (DC)
Power consumption
2.2 W
sensor type
passive infrared (PIR)
max. detection range
5 m
max view angle
120 °
Light sensitivity from
10 lx
switch-off delay from
18 s
max. lighting duration
6 h
Max. light range
1.5 m
Luminous flux
160 lm
Luminous color
cool white
color temperature
6500 K
Light yield
73 lm/W
Number of LEDs
20
Dimmability
not dimmable
color rendering index
80 Ra
Device connections
Output, min. amperage
0.24 A
Output, min. amperage
0.2 A
Build
Beam Angle
120 °
General
protection class
IP20
Number of switching cycles
10000 pcs.
General service life
60000 hrs.
Color
silver
Material
PC, aluminum
Markings
WEEE, CE
Applications
Furniture installation
Special feature
Sensor function
Operating temperature from
-10 °C
Operating temperature up to
35 °C
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Length
328 mm
Width
15 mm
Height
20 mm
Weight
135 g
Language Scope
packaging
cs, da, de, en, es, fr, it, nl, pl, sv
Downloads
Packing units:
1 / 40
Item: 55498
EAN: 4040849554988
