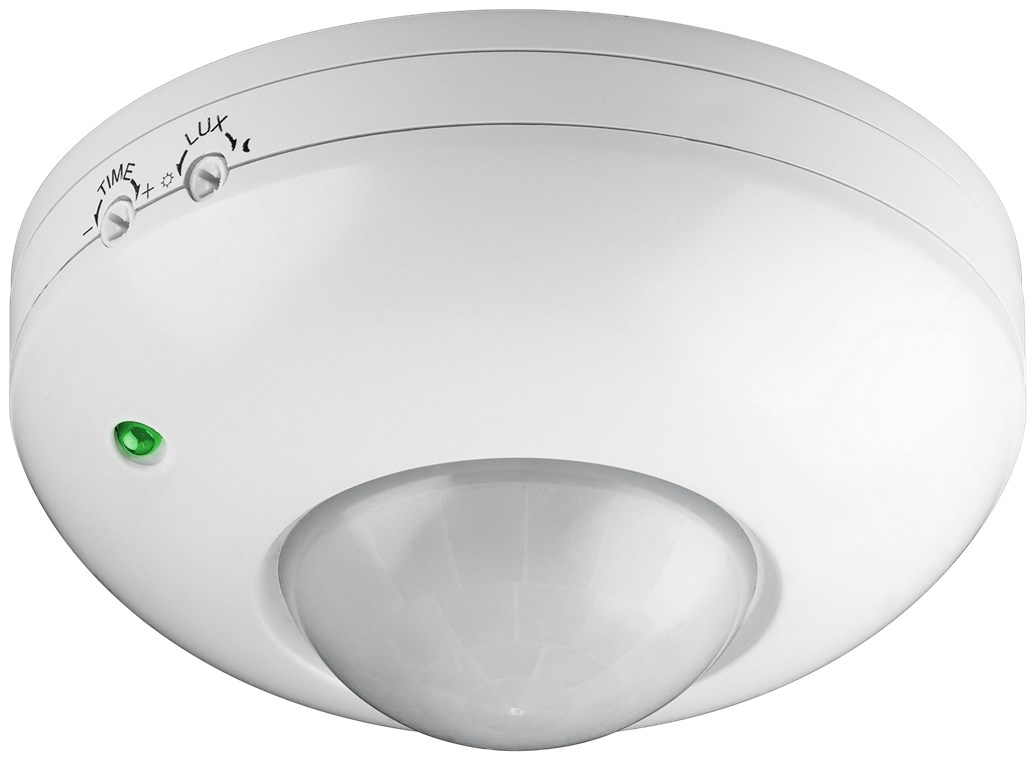

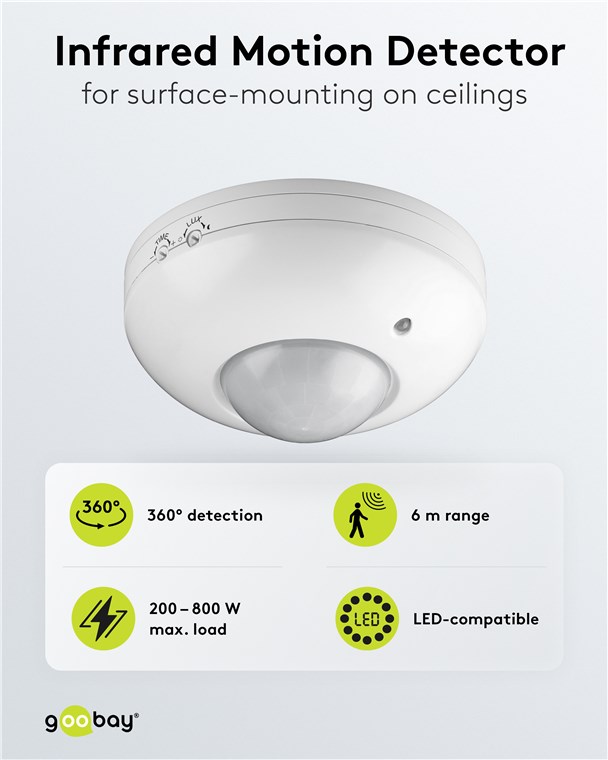

Infrared Motion Detector
for surface ceiling mounting, 360° detection, 6 m range, for indoor use (IP20), suitable for LEDs
Infrared Motion Detector
for surface ceiling mounting, 360° detection, 6 m range, for indoor use (IP20), suitable for LEDs
Article details
Our motion detectors for indoor and outdoor use reliably turn on the light when detecting people and animals in the dark or in the twilight. Different ranges and detection areas allow you to select the perfect motion detector for your individual needs. Goobay lights up your world. Simply. All. You need!
- PIR sensor provides a generous range and very accurate detection.
- Adjustable infrared sensor allows for individual detection settings
- 360° motion detector is ideal for switching on lamps and LEDs indoors.

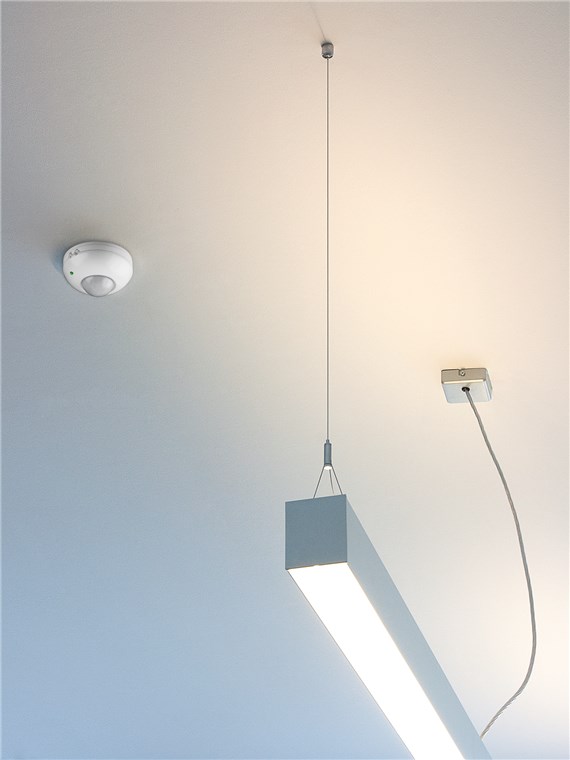

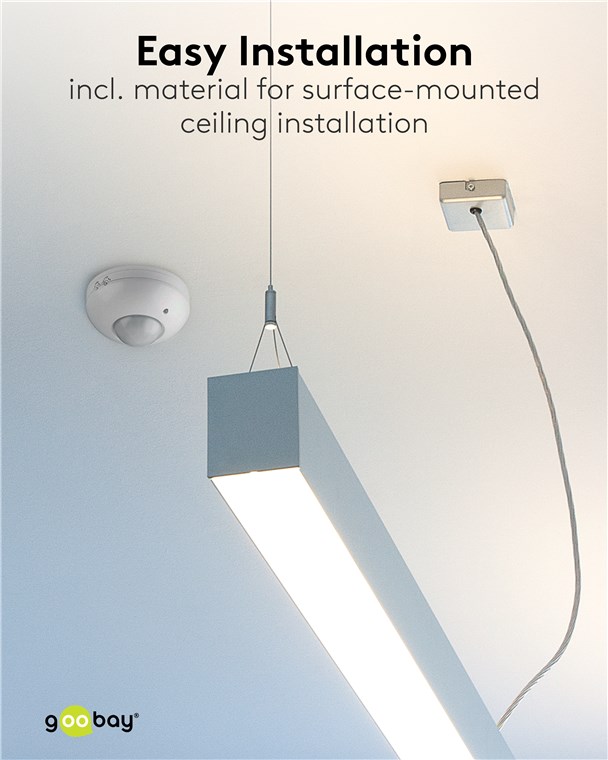

- Designed for simple and quick surface ceiling mounting
- Infrared detector for the precise detection of people and animals in the darkness or twilight

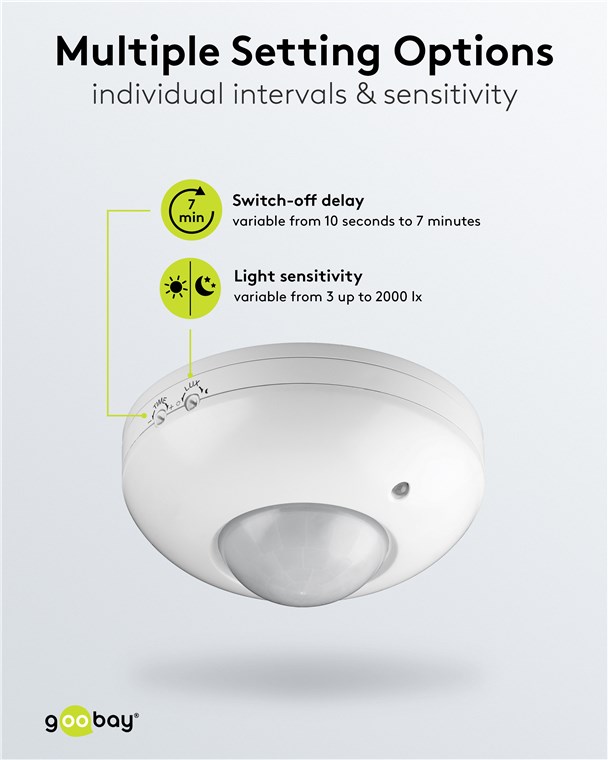

- The switch-off delay after detecting a movement can be variably set between 10 s ± 3 s and 15 min ± 2 min
Max. Power:
1200 W (incandescent lamp)
300 W (LED or energy-saving lamp)
Technical specifications
Connections
Connection, type
Screw clamp
Performance
minimum load
1
Power consumption
600 W
sensor type
passive infrared (PIR)
switching power
600 W
operating voltage
230 V (AC)
max view angle
360 °
switch-off delay from
10 s
switch-off delay to
420 s
Installation height from
2.2 m
Installation Height up to
4 m
max. detection range
6 m
recommended installation height
2.2 - 4 m
Light sensitivity from
3 lx
light sensitivity up to
2000 lx
General

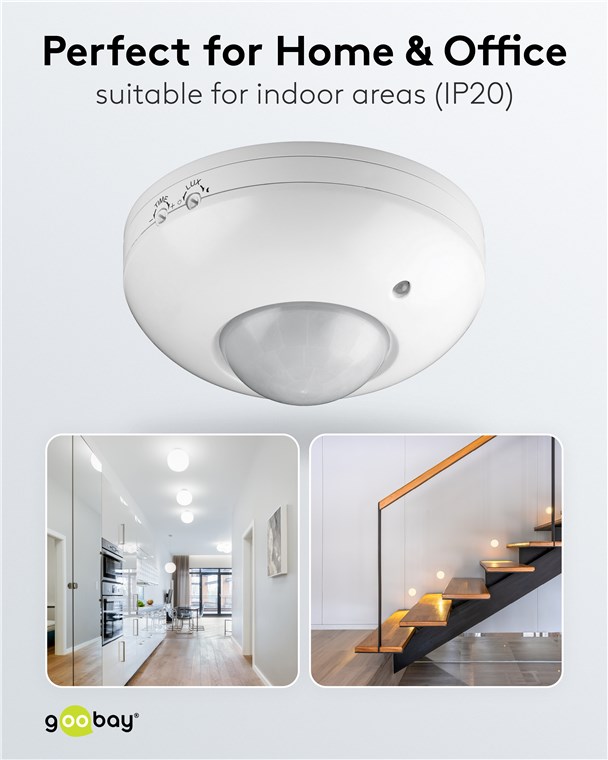

protection class
IP20
Color
white
Markings
CE, WEEE, Haus
Special feature
Sensor function
Operating temperature from
-20 °C
Operating temperature up to
40 °C
Packaging type
Retail Box

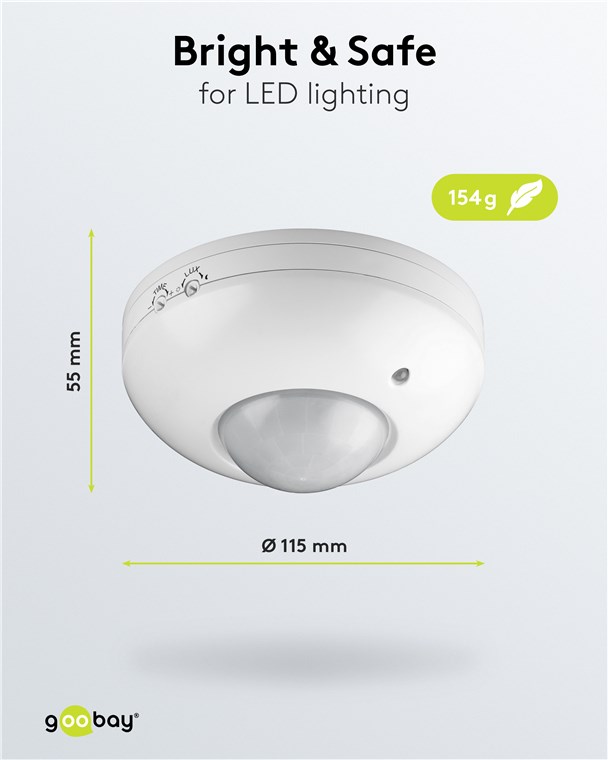

Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Length
125 mm
Width
125 mm
Height
65 mm
Diameter
125 mm
Weight
154 g
Language Scope
Operation manual
en, de
packaging
en, de, fr, it
Downloads
Packing units:
1 / 20 / 40
Item: 95172
EAN: 4040849951725
