GHMT-certified CAT 8.1 S/FTP Patch Cord, AWG 26, black
copper conductor, LSZH halogen-free cable sheath
GHMT-certified CAT 8.1 S/FTP Patch Cord, AWG 26, black
copper conductor, LSZH halogen-free cable sheath
Article details
Reliable performance of the patch cable in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.
Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09):
2 Connector Channel Copper, Class I up to 2 GHz
GHMT Type Approval
Balanced cord: Wentronic GmbH CAT 8 patch cord
Part no.: CAT 8.1 - 1 m S/FTP PiMF black
Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117
Certified installation cables: 61126, 61127, 61128
Certified Keystone coupler: 61135
Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09):
2 Connector Channel Copper, Class I up to 2 GHz
GHMT Type Approval
Balanced cord: Wentronic GmbH CAT 8 patch cord
Part no.: CAT 8.1 - 1 m S/FTP PiMF black
Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117
Certified installation cables: 61126, 61127, 61128
Certified Keystone coupler: 61135
- The 1 m LAN cable supports 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and is backwards compatible with 10BASE-T, 100BASE-TX and 1000BASE-T.
- With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of a CAT 6A cable.
- GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath

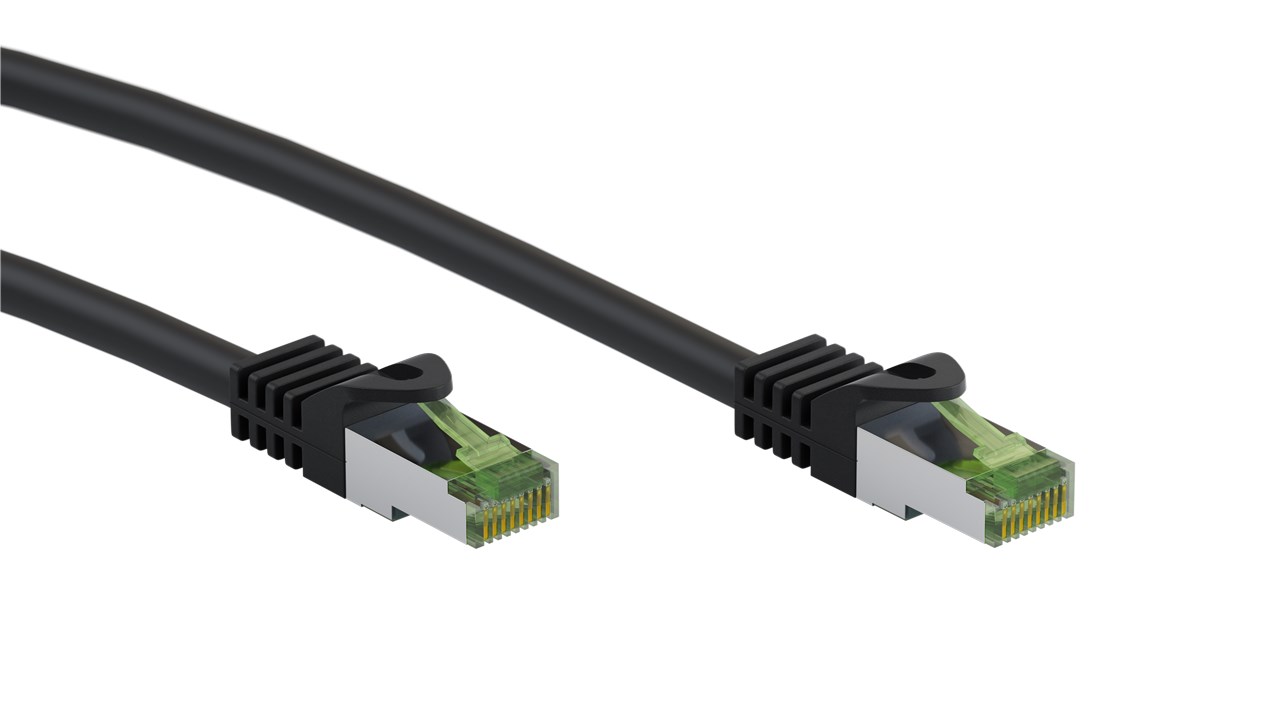

- Assembled on both ends with RJ45 connectors (8P8C) with 50 μm gold-plated contact surfaces and latch protection.
- CAT 8 LAN cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT.
- Low-smoke and halogen-free LSZH cable sheath

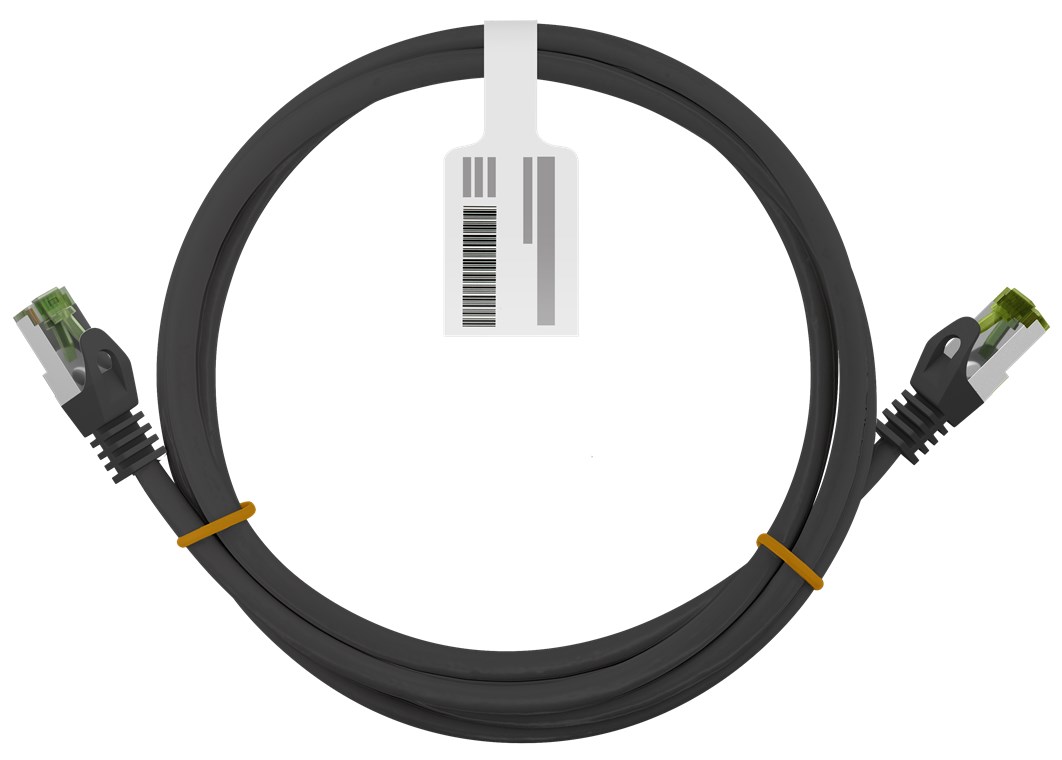

The products are only labelled with a paper label, plastic bags and plastic cable ties are not used.
Technical specifications
Connections
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 male (8P8C)
Contacting
EIA/TIA-568 B
Latch protection
both sides
Connection, contact material
gold-plated 50µm
Connection, housing material
PVC
Connection, shielding
yes
Kink protection
both sides
Cable
Specification
CAT 8.1
Shielding class
S/FTP (PiMF)
AWG
26/7 (stranded)
Cable length
1 m
Cable type
Cat 8.1 raw cable
Inner conductor material
CU (copper)
LSZH compliant
yes
Material cable sheath
LSZH
Cable sheath diameter (approx.)
6.2 mm
Number of shieldings
2 x
Type 1, shielding
foil (alu) PiMF
Type 2, shielding
braid (alu) overall shield
Signal transmission
max. bandwidth
2000 MHz
General
Outer sheath material
LSZH
Color
black
Markings
WEEE, CE, GHMT Premium Verification Programm
Special feature
Length indication on connector
Packaging type
Cable Tag
Dimensions / Weight
Consumption Unit
1 pc. bulk
Downloads
Packing units:
1 / 120
Item: 61093
EAN: 4040849610936
