DisplayPort™ Cable
4K/60Hz
DisplayPort™ Cable
4K/60Hz
Article details

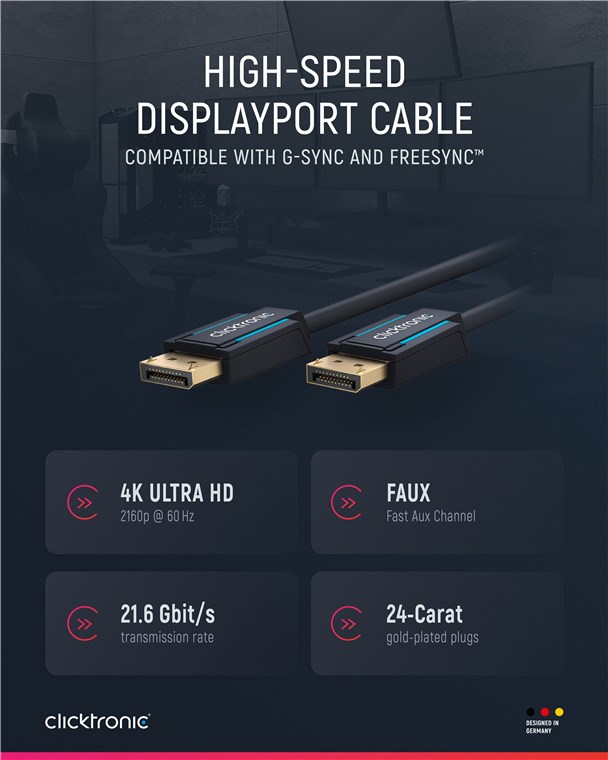

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our DisplayPort™ cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic DisplayPort™ cable enables a razor-sharp image and has a very fast transmission speed.
- DisplayPort™ cable connects external monitors and projectors to PC, laptop or Mac.
- High-resolution signal transmission with up to 4K @ 60 Hz (2160p) and WQHD @ 60 Hz (1440p)
- Clicktronic 4K cable is G-Sync and FreeSync™ compatible for a speed advantage in gaming
- 2-fold shielding and inner conductor made of 99.9 % oxygen-free copper for crystal-clear sound and pin-sharp video and picture quality
- Monitor cable with max. transfer rate of up to 21.6 Gbit/s for an optimal entertainment experience
- 24-carat gold-plated DisplayPort™ connectors for minimal transmission resistance and smooth image transmission without delays
- DisplayPort™ connectors with mechanical connector lock prevents loose contacts.
Technical specifications
Connections
Connection, type
DisplayPort™ male
Connection 2, type
DisplayPort™ male
Connection type
DisplayPort™ connector
Connection, shielding
yes
Connection, contact material
gold (24 kt)
Connection, housing material
ABS, PVC
Cable
Cable type
round cable
Number of shieldings
3 x
Type 1, shielding
braid (copper) 112x
Type 2, shielding
foil (aluminium)
AWG
26
Inner conductor material
OFC (99,9% oxygen-free copper)
Material cable sheath
PVC
Cable sheath diameter (approx.)
7.3 mm
Cable length
1 m
Inner conductor cross-section
0.32 mm²
Type 3, shielding
foil (aluminium)
Signal transmission
max. transmission rate
21.6 Gbit/s
Impedance
100 Ω
Max. resolution
4K/60Hz (3840 x 2160) UHD
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years
Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1 / 20 / 40
Item: 70710
EAN: 4040849707100
