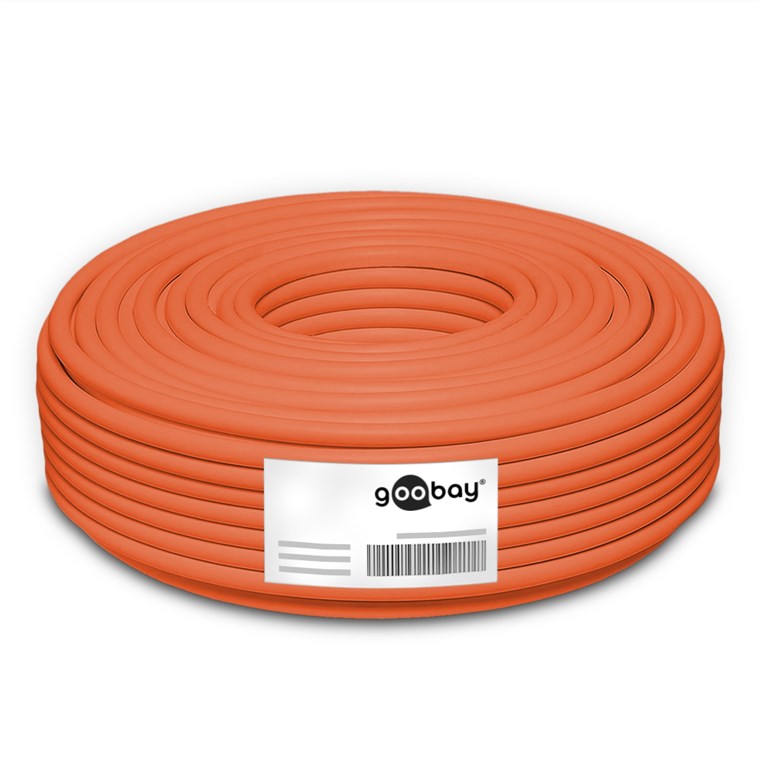

CAT 7A Network Cable, S/FTP (PiMF), orange
(CU) AWG 23/1 (solid), (LSZH) halogen-free cable sheath
CAT 7A Network Cable, S/FTP (PiMF), orange
(CU) AWG 23/1 (solid), (LSZH) halogen-free cable sheath
Article details
Our patch cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Double shielded LAN cable for connecting network components
- Unterminated patch cable with IDC connection technology for assembly and installation indoors
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and shielding guarantee an excellent and powerful network connection.
- In the event of a fire, the halogen-free jacket of the Ethernet cable prevents the outgassing of hazardous substances and minimises smoke development
- CAT 7A network cable is suitable for Power over Ethernet (PoE/PoE+)
- Complies with the Construction Products Regulation (CPR) and Dca fire protection class
Technical specifications
Cable
Cable length
50 m
Number of shieldings
2 x
Specification
CAT 7A
Type 1, shielding
foil (alu) PiMF
Shielding class
S/FTP (PiMF)
Type 2, shielding
braid (alu) overall shield
AWG
23/1 (solid)
Inner conductor material
CU (copper)
inner conductor, core diameter
0.59 mm
Fire class (CPR)
Dca
Material cable sheath
LSZH
Cable sheath diameter (approx.)
7.5 mm
Meter scaling
LSZH compliant
yes
Cable type
round cable
Signal transmission
max. bandwidth
1000 MHz
Impedance
100 Ω
usable up to cable length
90 m
General
Outer sheath material
LSZH
Color
orange
Markings
DCA_CPR, CE, PoE
Packaging type
Cable ring-coil
Dimensions / Weight
Consumption Unit
1 pc. coil
Downloads
Packing units:
1 / 4
Item: 75713
EAN: 4040849757136
