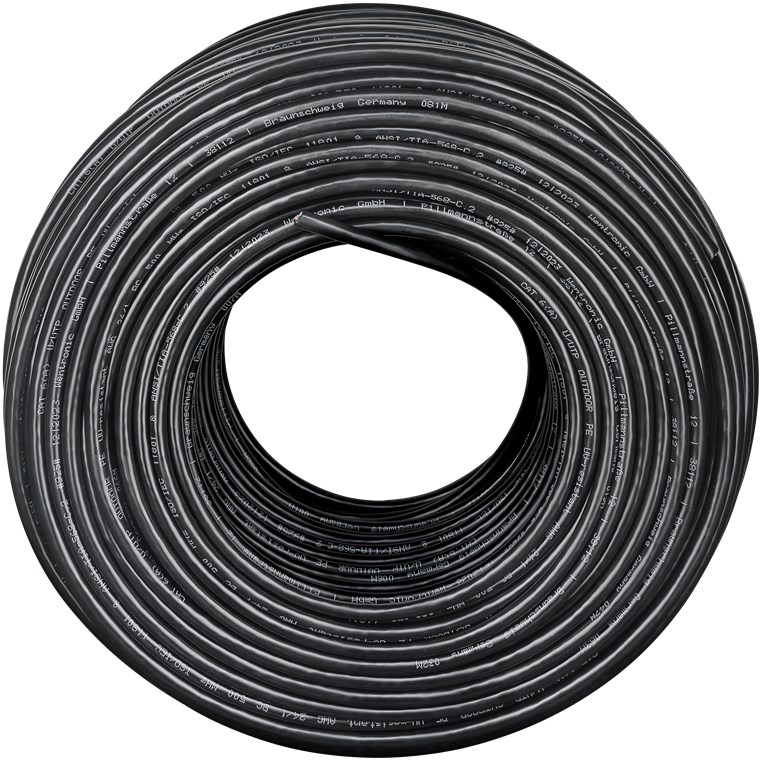

CAT 6A Outdoor Network Cable Set, U/UTP, black
Copper conductor (CU), AWG 24/1 (solid), double-layer cable jacket (PE)
CAT 6A Outdoor Network Cable Set, U/UTP, black
Copper conductor (CU), AWG 24/1 (solid), double-layer cable jacket (PE)
Article details
The Goobay network cable is ideal for outdoor use, e.g. in the garden, for camping, on building facades and for connecting surveillance cameras. The stable cable sheath made of polyethylene is extremely resistant to weathering and UV radiation.

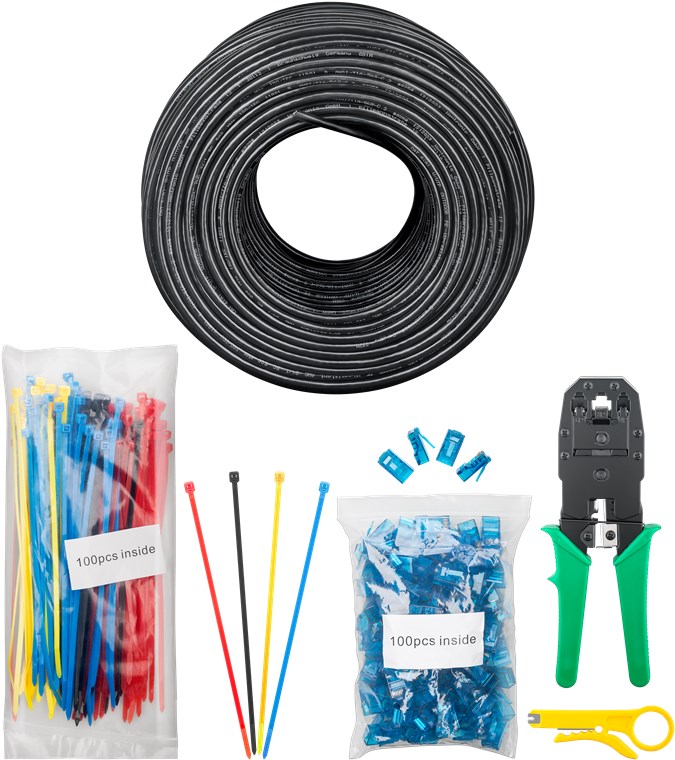

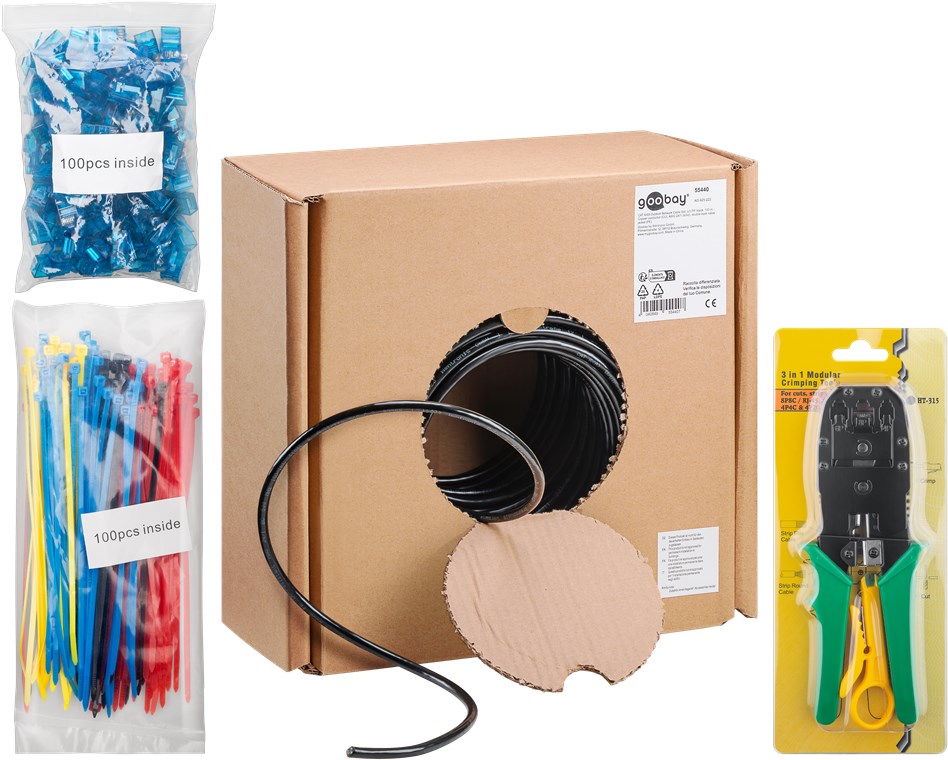

- Internet cable set comprising 1x CAT 6A LAN cable, 1x crimping tool, 100x coloured cable ties and 100x RJ45 plugs.
- Unshielded twisted pair LAN cable for outdoor assembly with a maximum transmission length of 70 m
- Double polyethylene outer sheath (PE) protects the network cable outdoors and makes it extremely weather-resistant.
- The Ethernet cable is ideal for use on building facades and surveillance cameras.
- Unterminated patch cable for assembly and installation with IDC connection technology. No approval for permanent installation in buildings.
- High-quality copper conductor (CU) guarantees an excellent and powerful network connection.
- CAT 6A outdoor cable is suitable for Gigabit Ethernet 10/100/1000 Mbit/s.
Test limit @ patch cords assembly is 70m  for ISO11801 Channel Class Ea.
Technical specifications
Cable
Diameter of insulated conductor
0.86 mm (+/-0.05)
AWG
24/1 (solid)
Specification
CAT 6A
Cable sheath diameter (approx.)
6 mm
inner conductor, core diameter
0.5 mm
Shielding class
U/UTP
Cable type
outdoor cable
Material cable sheath
LSZH
Inner conductor material
CU (copper)
LSZH compliant
yes
Fire class (CPR)
Fca
Cable length
100 m
Signal transmission
usable up to cable length
70 m
Impedance
100 Ω
max. bandwidth
500 MHz
General
Markings
CE
Operating temperature up to
75 °C
Operating temperature from
-20 °C
Color
black
Packaging type

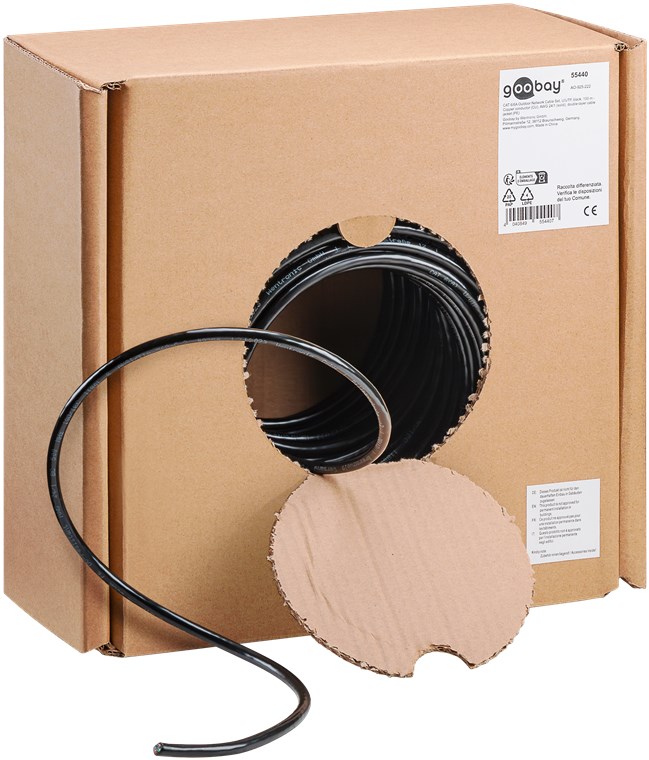

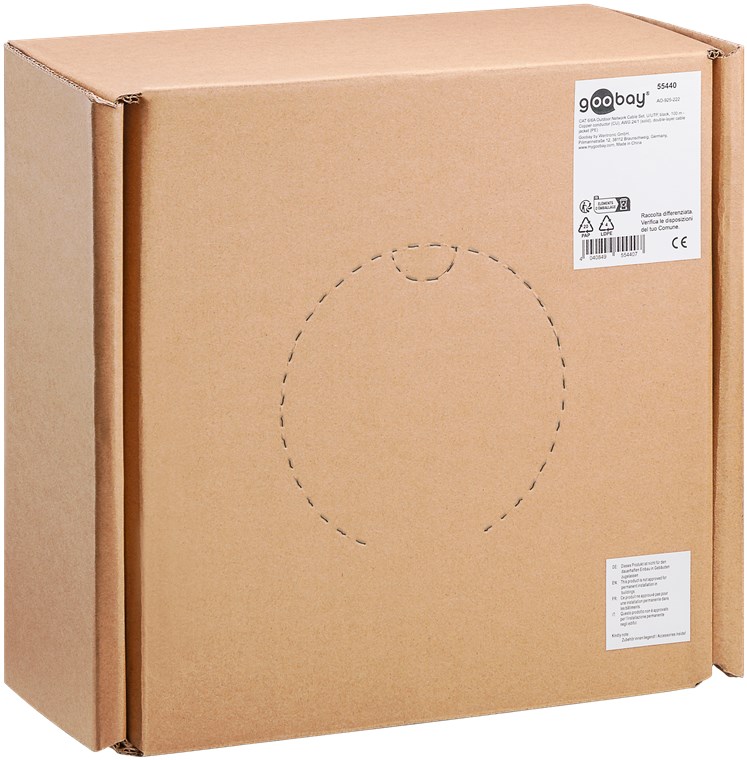

Brown Box with Label
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1 / 2
Item: 55440
EAN: 4040849554407
