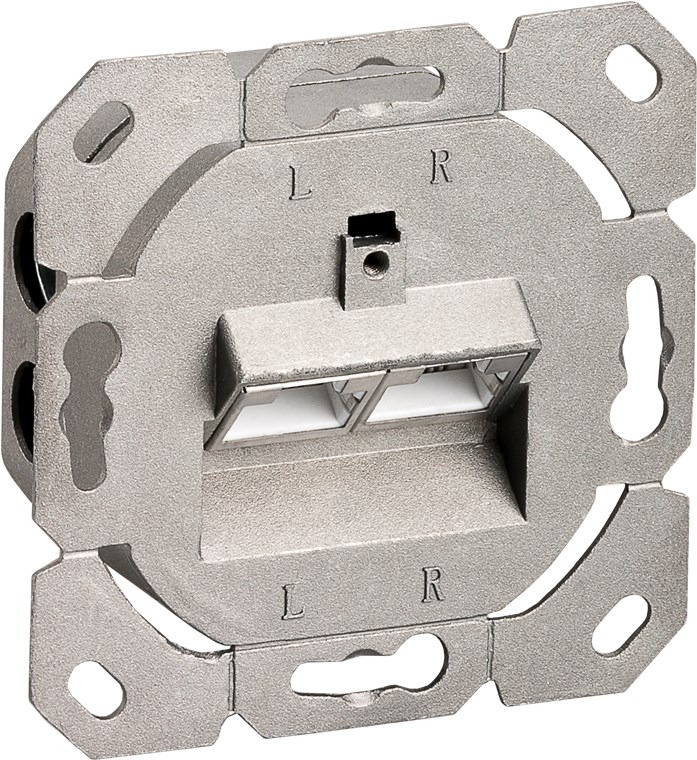

CAT 6 Wall Plate Flush Mounting
2x RJ45 connections, shielded, termination strip for tool-free IDC mounting
.jpg.jpg)
CAT 6 Wall Plate Flush Mounting
2x RJ45 connections, shielded, termination strip for tool-free IDC mounting
Article details
Our Ethernet sockets available in different colours have a robust plastic housing for a long service life. As they are equipped with 2x RJ45 connections, all required devices can easily be linked to one internet wall outlet. Goobay always provides the perfect products for your needs. Simply. All. You need!
- Shielded Ethernet socket with integrated dust protection cover plates to connect 2x network cables with RJ45 plugs
- Fully shielded IDC strips and RJ45 sockets thanks to completely enclosing die-cast metal housing (360° shield contact)
- The internet wall socket with a max. bandwidth of 250 MHz (CAT 6 Class E) connects your PC, laptop, games console, printer and receiver.
- In contrast to the surface box, the flush-mounted box is mounted directly onto the wall.
- CAT 6 wall outlet is suitable for 1 Gigabit Ethernet and PoE+ applications (IEEE 802.3at).
- With a clear plastic display to label the individual connections for a perfect cable management.
- Metal plate of the data socket is compatible with all common switch programmes (designable).
Technical specifications
Connections
Connection, shielding
yes
Connection, type
for IDC connection (toolless)
Connections, cable management
horizontal
Device connections
Input, type
RJ45 female (8P8C) x in
Cable
Specification
CAT 6
Signal transmission
max. bandwidth
250 MHz
General
Color
white
Markings
WEEE, CE
Packaging type
White Box with Label
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
Downloads
Packing units:
1 / 64
Item: 68246
EAN: 4040849682469
