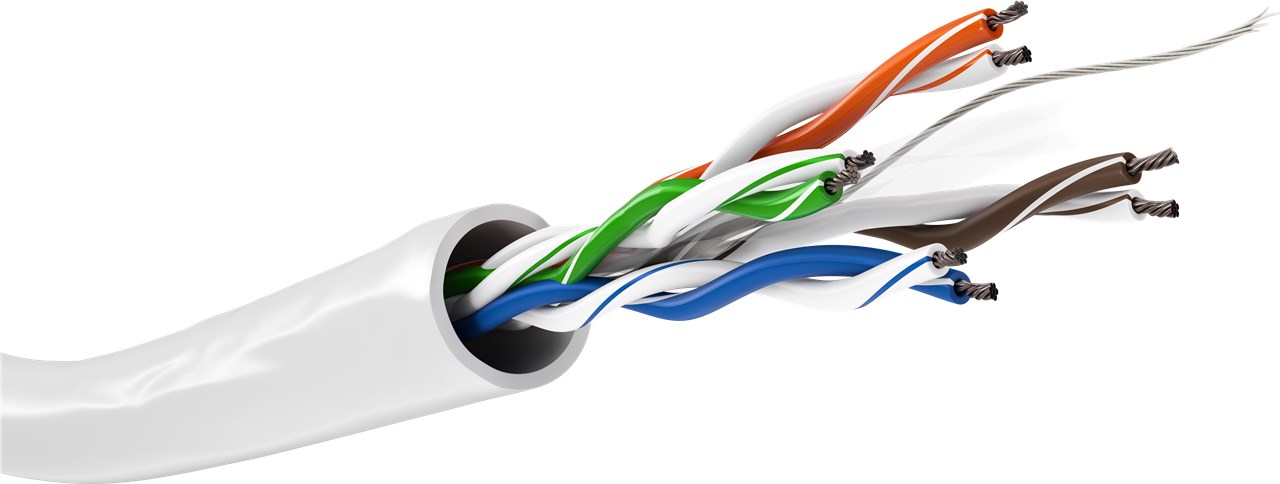

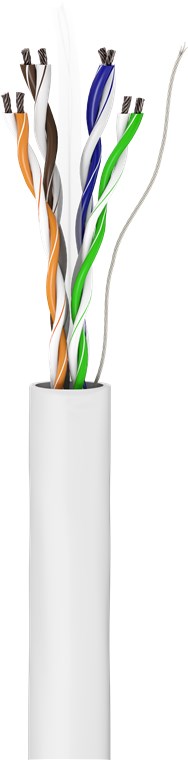

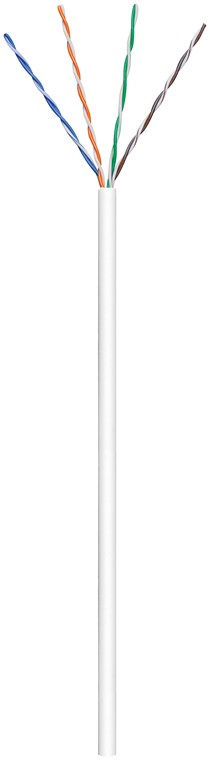

CAT 6 network cable, U/UTP, white
copper-clad aluminium wire (CCA), AWG 24/7 (stranded)
Product and packaging similar. Subject to modifications and errors.
CAT 6 network cable, U/UTP, white
copper-clad aluminium wire (CCA), AWG 24/7 (stranded)
Article details
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors and robust cable sheathing distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Unshielded twisted-pair LAN cable for indoor installation e.g. for the small office and working from home
- Unterminated patch cable for assembly and installation with LSA connection technology. No approval for permanent installation in buildings.
- Flexible, unterminated data and installation cable for indoor use with a maximum transmission length of 60 m
- High-quality copper-clad aluminium wire (CCA) guarantees an excellent, powerful network connection.
- Sturdy PVC jacket effectively protects the Ethernet cable from breakage.
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
Cable
Specification
CAT 6
Shielding class
U/UTP
AWG

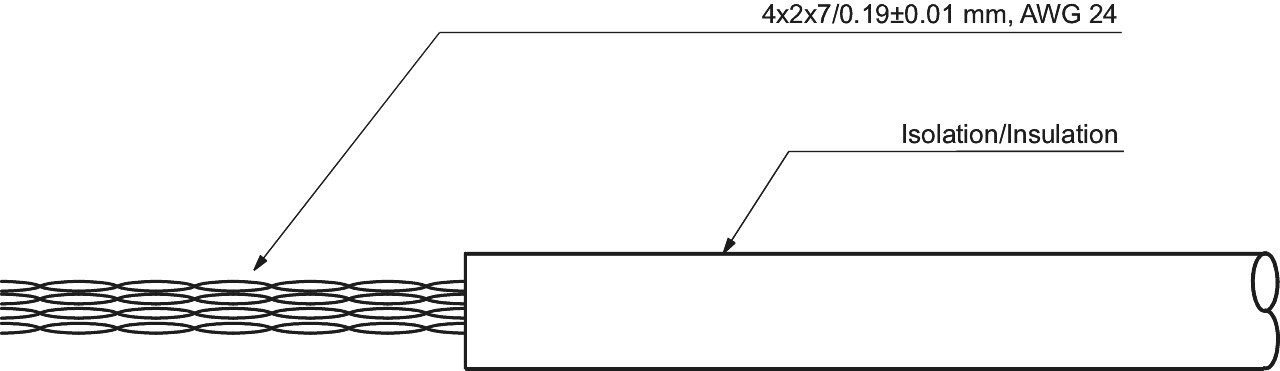

24/7 (stranded)
Diameter of insulated conductor
1 mm (+/-0.05)
Fire class (CPR)
Eca
Meter scaling
Cable length
100 m
Cable type
round cable
Inner conductor material
CCA (copper-clad aluminium)
Material cable sheath
PVC

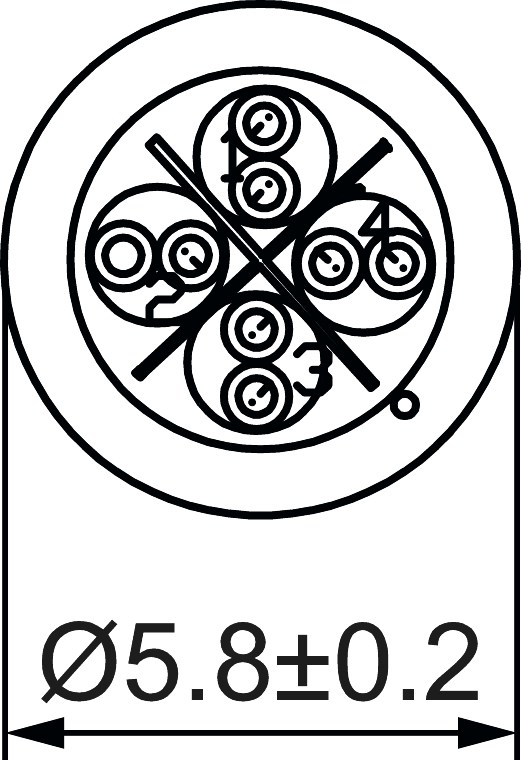

Cable sheath diameter (approx.)
5.8 mm
Signal transmission
max. bandwidth
250 MHz
usable up to cable length
40 m
Impedance
100 Ω
General
Color
white
Markings
ECA_CPR, CE, SOHO
Packaging type
Cable spool-drum
Dimensions / Weight
Consumption Unit
1 pc. cable reel
