Goobay

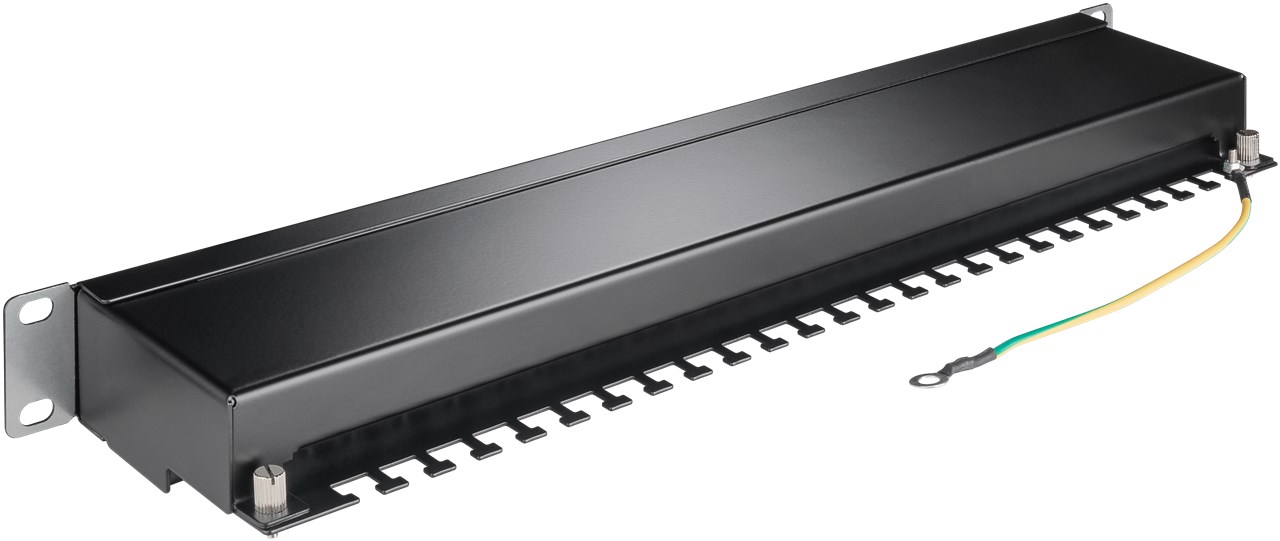

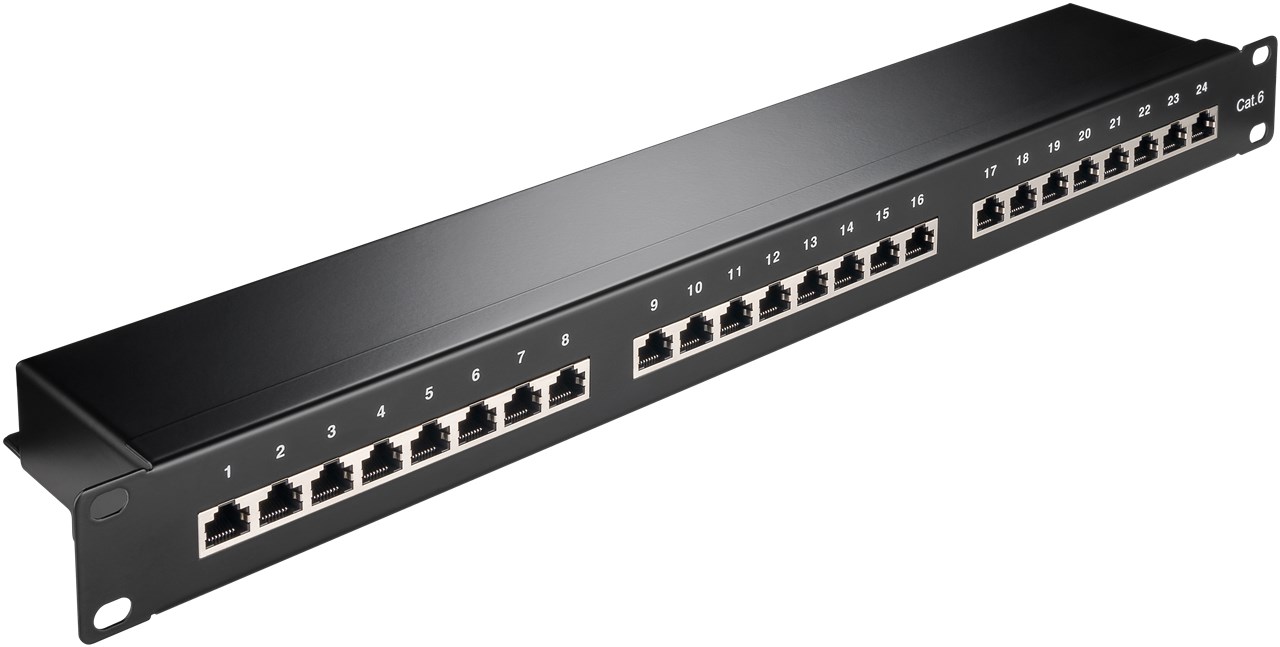

CAT 6 19-inch (48.3 cm) Patch Panel, 24 Port (1 U)
STP shielded
/4
Product and packaging similar. Subject to modifications and errors.
Goobay
CAT 6 19-inch (48.3 cm) Patch Panel, 24 Port (1 U)
STP shielded
Article details
Our patch panels have a robust metal housing with shielded slots for an excellent connection. Simply select a panel with 8, 12 or 24 ports to easily connect all your Ethernet cables to the network patch panel. Goobay always provides the perfect products for your network needs. Simply. All. You need!
  • 24-port patch panel with RJ45 sockets for connecting terminated CAT 6 network cables

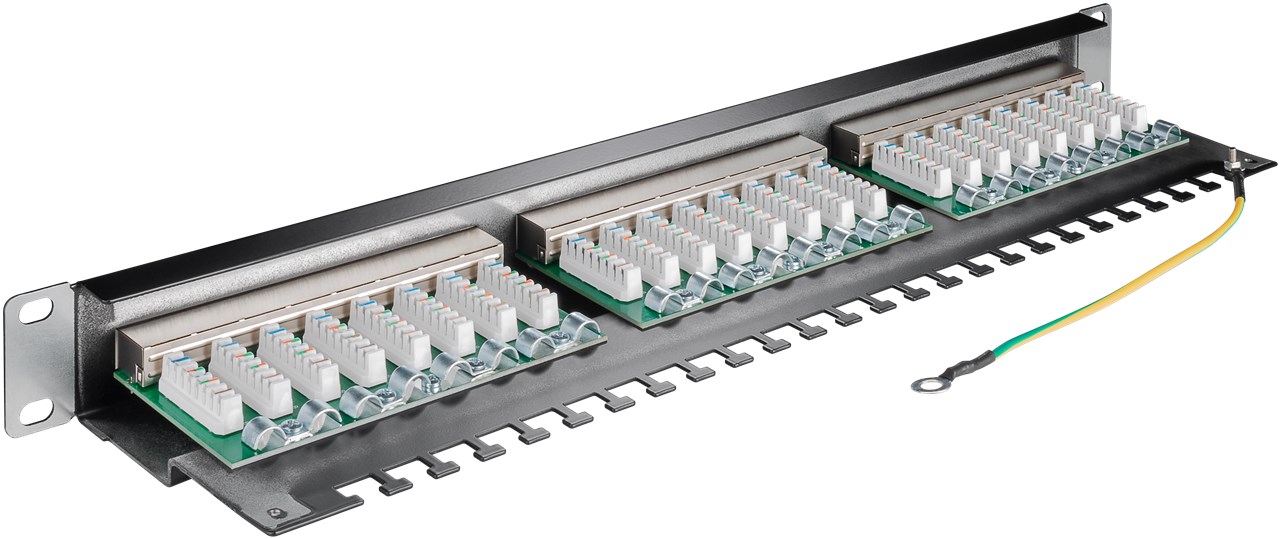

  • For tool-free assembly by solderless, screwless and stripping-free connection technology (IDC mounting)
  • 19-inch patch panel incl. fixing screws for rack mounting or mounting in server cabinets (48.3 cm)
  • CAT 6 distributor for cable diameters up to 0.64 mm (AWG 22 - 26)
  • Distribution panel with numbered ports for ideal cable organisation
  • Terminal strips with colour coding according to TIA 568 A/B for easy and correct connections
Technical specifications
Connections
Connection, type
24 RJ45 male (8P8C)
Connection, shielding
yes
Device connections
Output, type
RJ45 female (8P8C)
Number of outputs
24 ports
Cable
Specification
CAT 6
Shielding class
STP
Signal transmission
max. bandwidth
250 MHz
General
Color
black
Markings
WEEE, CE
Packaging type
Brown Box with Label
Dimensions / Weight
Width
483 mm
Height
44 mm
depth
401 mm
Downloads
Product data sheet pdf Declaration of conformity pdf
£43.99 RRP
Packing units:
1 / 10
Packaging type
Brown Box with Label
Color version
black
grey
Item: 93048
EAN: 4040849930485
