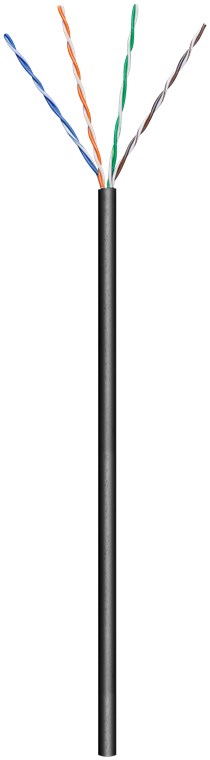

CAT 5e outdoor network cable, U/UTP, black
Copper-clad aluminium wire (CCA), AWG 24/1 (solid), polyethylene cable sheath (PE)
Product and packaging similar. Subject to modifications and errors.
CAT 5e outdoor network cable, U/UTP, black
Copper-clad aluminium wire (CCA), AWG 24/1 (solid), polyethylene cable sheath (PE)
Article details
The Goobay network cable is ideal for outdoor use, e.g. in the garden, for camping, on building facades and for connecting surveillance cameras. The stable cable sheath made of polyethylene is extremely resistant to weathering and UV radiation.
- Unshielded twisted pair LAN cable for outdoor assembly with a maximum transmission length of 40 m
- Polyethylene outer sheath (PE) protects the network cable outdoors and makes it extremely weather-resistant.
- The outdoor Ethernet cable is ideal for use on building facades and surveillance cameras.
- Unterminated patch cable for assembly and installation with IDC connection technology. No approval for permanent installation in buildings.
- High-quality copper-clad aluminium wire (CCA) guarantees an excellent and powerful network connection.
- Complies with the Construction Products Regulation (CPR) and Fca fire protection class
Technical specifications
Cable
Specification
CAT 5e
Diameter of insulated conductor
0.9 mm (+/-0.05)
Cable type
outdoor cable
Shielding class
U/UTP
AWG
24/1 (solid)
Inner conductor material
CCA (copper-clad aluminium)
Material cable sheath
PE
Cable sheath diameter (approx.)
5 mm
Cable length
100 m
Fire class (CPR)
Fca
Signal transmission
usable up to cable length
40 m
max. bandwidth
100 MHz
Impedance
100 Ω
General
Color
black
Markings
CE, SOHO
Operating temperature from
-20 °C
Operating temperature up to
75 °C
Packaging type
Cable spool-drum
Dimensions / Weight
Consumption Unit
1 pc. cable reel
Downloads
Packing units:
1 / 4
Item: 57198
EAN: 4040849571985
