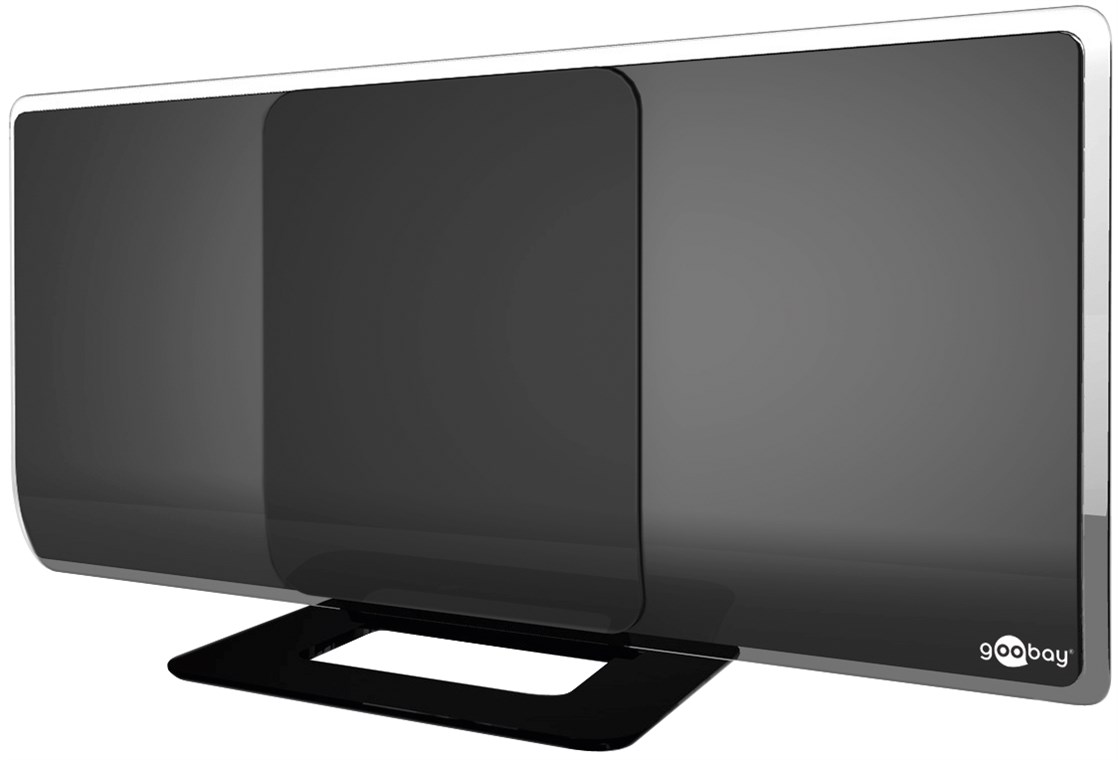

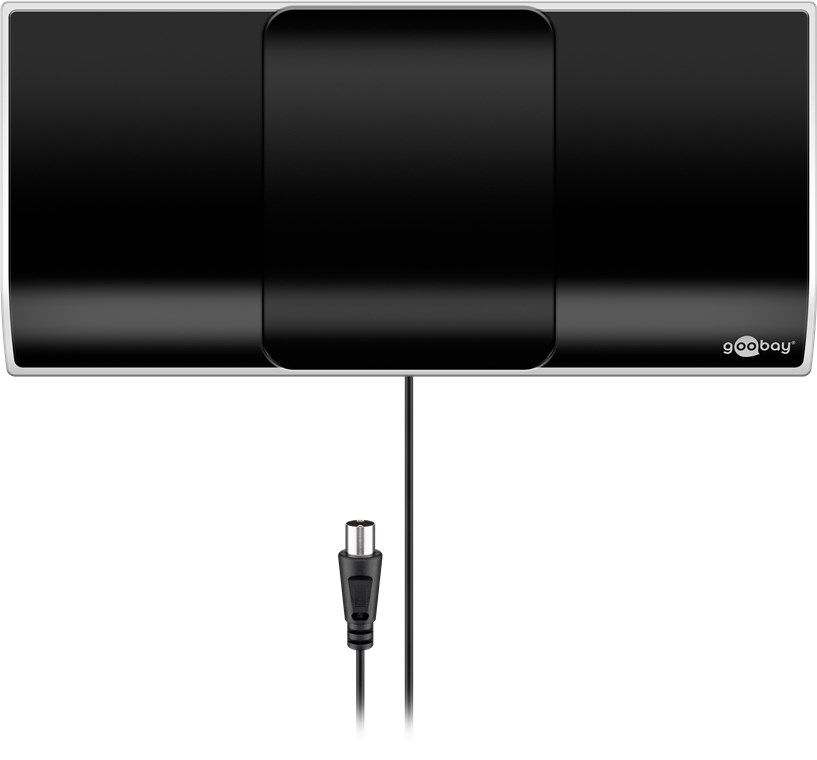

Active Full HD DVB-T2 Indoor Antenna, incl. LTE/4G Filter
with up to 13 dBi gain for weak received signal
Active Full HD DVB-T2 Indoor Antenna, incl. LTE/4G Filter
with up to 13 dBi gain for weak received signal
Article details
- For receiving digital TV signals in the UHF range (470-790 MHz)
- Active DVB-T, DVB-T2 and DAB antenna especially for digital and analogue terrestrial TV reception (HD and SD)

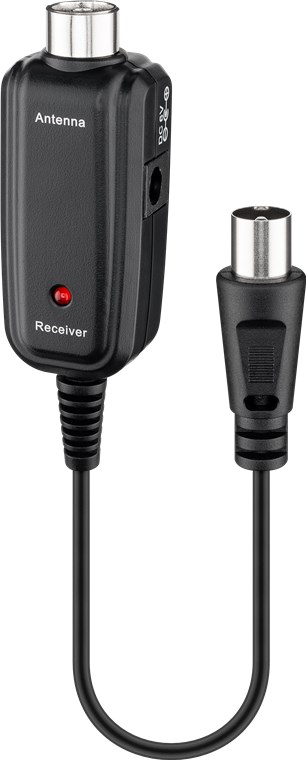

- Amplifier provides power up to 13 dBi
- Omnidirectional and therefore no realignment (horizontal/vertical) required with differently polarised transmitters
- Recommended range to the transmitter: 0 - 25 km
- GSM, LTE and 4G filters to prevent interference from mobile phones

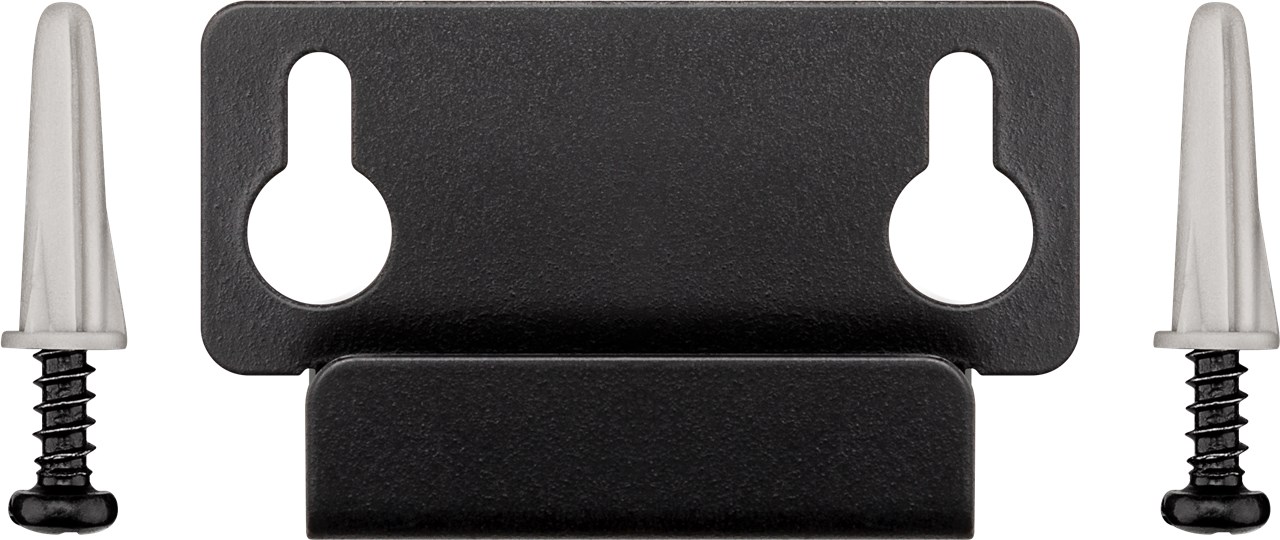

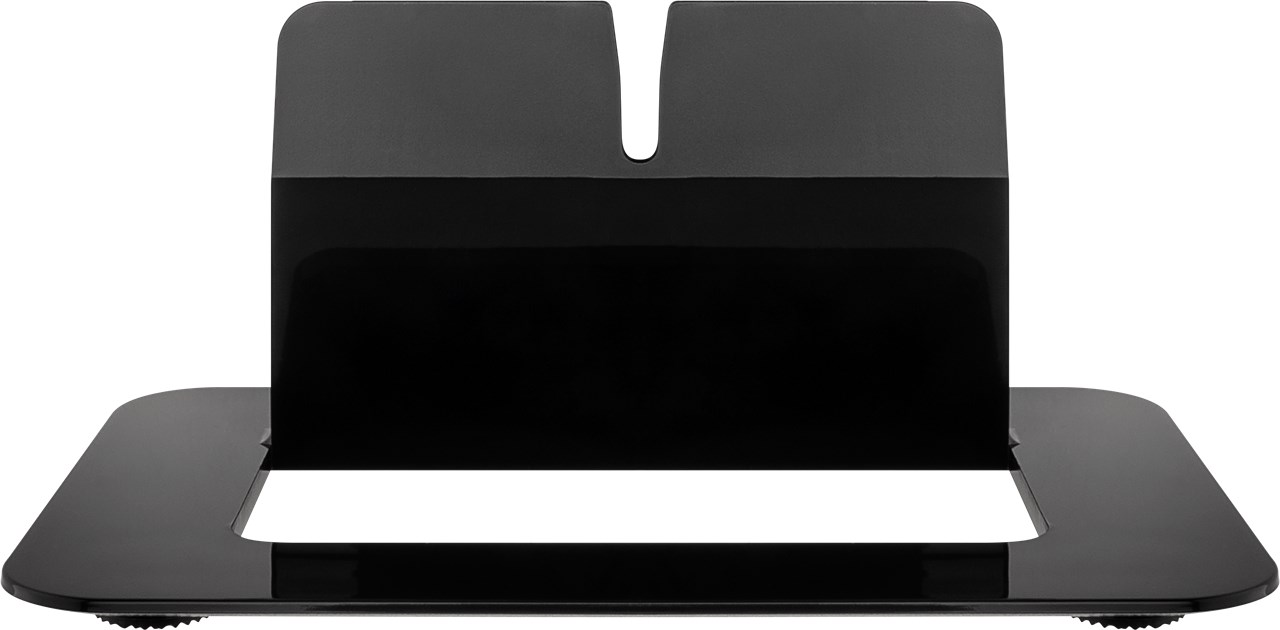

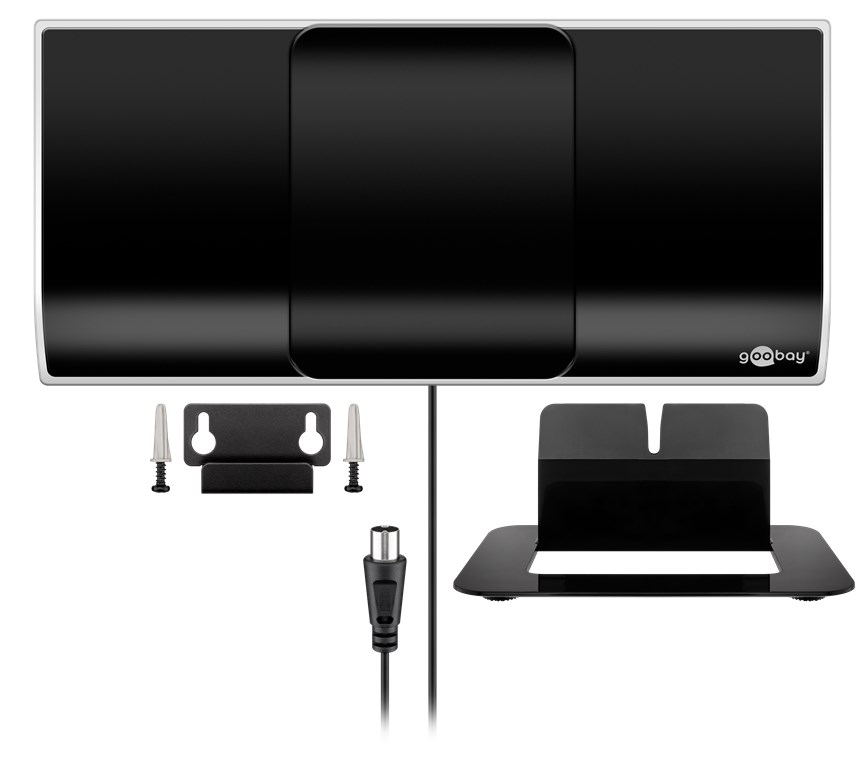

- Suitable not only for wall mounting but also for floor mounting thanks to matching stand
Technical specifications
ErP
Average active efficiency
71.79 %
No-load power consumption
0.03 W
Cable
Cable type
coaxial cable
Signal transmission
Directivity pattern
omnidirectional
Frequency Range UHF from
470
Frequency range UHF to
790
antenna gain UHF
13 dBi max.
blocking filter
LTE/4G
Amplifier power-supply
via power supply (Euro plug, 230V)
Signal amplification
yes
General
antenna Type
Indoor Antenna
Color
black
Markings
WEEE, CE, Goobay_DVB-T2_HD, 4G/LTE-Filter
Packaging type
Retail Box
Dimensions / Weight
Length
286 mm
Width
149 mm
depth
20 mm
Consumption Unit
1 pc. in cardboard box
Scope of delivery

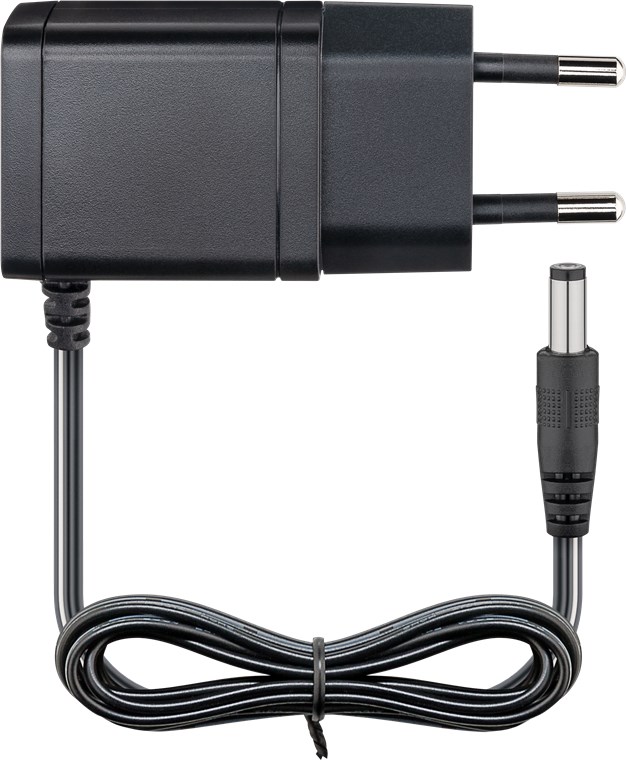

power Supply
100-240 V (Euro)
accessory - Power supply
Output current
0.15 A
Input AC frequency
50/60 Hz
Input voltage
100-240 V
Model identifier
S003ATV0600015
Active mode efficiency
71.79 %
Input current
0.2 A
Output voltage
6.0 V
Output power
0.9 W
Language Scope
Operation manual
de, en, fr, it, es, nl, da, se, cz, pl
packaging
de, en, fr, it
Downloads
Packing units:
1 / 5 / 10
Item: 67179
EAN: 4040849671791
