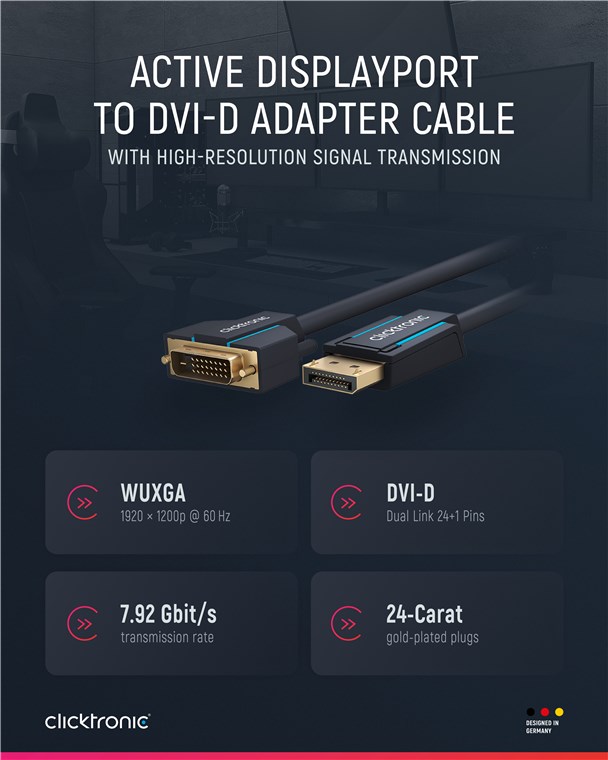

Active DisplayPort™ to DVI-D Adapter Cable
Premium cable | 1x DisplayPort™ plug >> 1x DVI-D plug Dual-Link | 2.0 m | Full HD @ 60 Hz (1080p)
Active DisplayPort™ to DVI-D Adapter Cable
Premium cable | 1x DisplayPort™ plug >> 1x DVI-D plug Dual-Link | 2.0 m | Full HD @ 60 Hz (1080p)
Article details

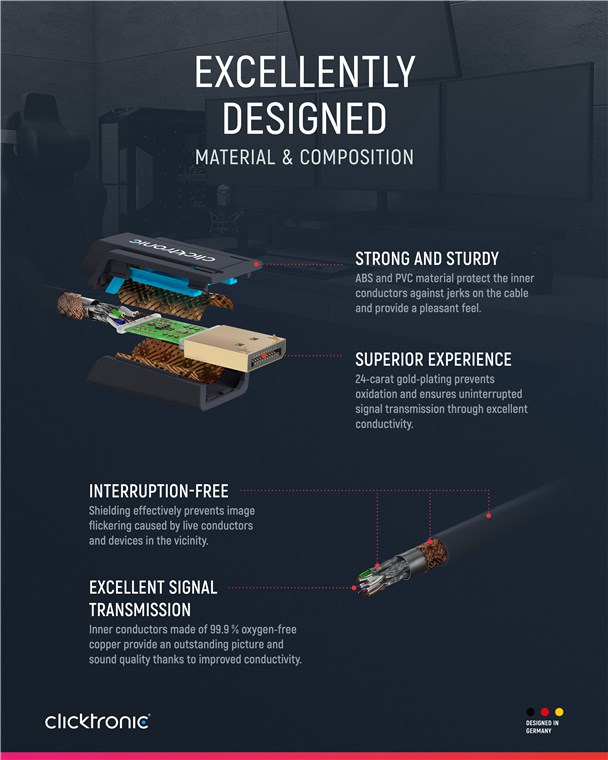

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our DisplayPort™ cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic DisplayPort™ cable enables a razor-sharp image and has a very fast transmission speed.

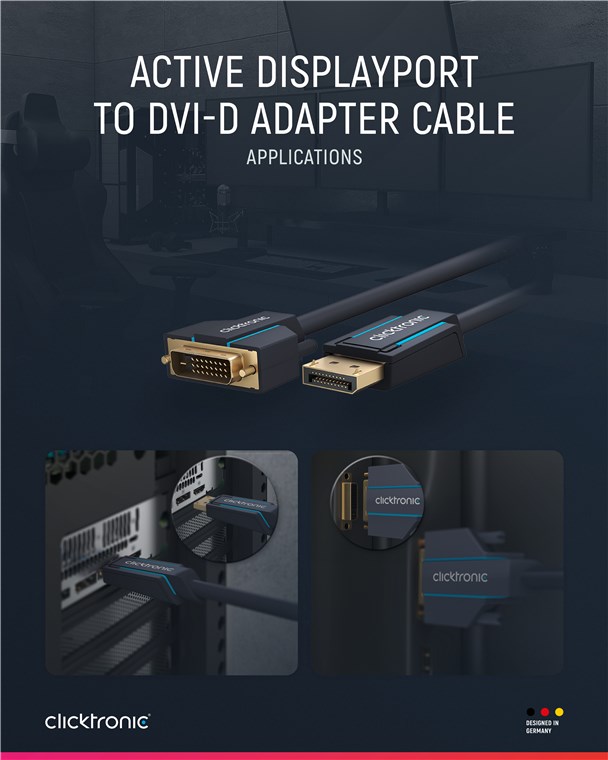

- DisplayPort™ to DVI cable connects external monitors and projectors to PC, laptop or Mac.
- High-resolution signal transmission with Full HD @ 60 Hz (1080p) for crystal-clear sound and razor-sharp video and picture quality
- Monitor cable with max. transfer rate of up to 7.92 Gbit/s for an optimal entertainment experience
- Integrated signal amplifier prevents signal loss, making the Clicktronic cable especially suitable for bridging longer distances.
- 24-carat gold-plated DisplayPort™ connectors for minimal transmission resistance and smooth image transmission without delays
- Connections with mechanical plug locking prevent loose contacts.
- Signal direction: Due to the integrated signal amplifier, the DisplayPort™ cable must be connected so that the printed triangles point from the transmitter (e.g. PC) to the receiver (e.g. monitor).
Technical specifications
Connections
Connection, type
DisplayPort™ male
Connection 2, type
DVI-D male Dual-Link (24+1 pin)
Connection, contact material
gold (24 kt)
Connection type
DisplayPort™ connector, DVI konektor
Connection, housing material
ABS, PVC
Connection, shielding
yes
Kink protection
both sides
Cable
AWG
26
Cable length
2 m
Cable type
round cable
Inner conductor material
OFC (99,9% oxygen-free copper)
LSZH compliant
no
Material cable sheath
PVC
Cable sheath diameter (approx.)
6 mm
Number of shieldings
3 x
Type 1, shielding
Braiding (copper) 112x
Type 2, shielding
foil (aluminium)
Ferrite core
no
Type 3, shielding
foil (aluminium)
Signal transmission
max. transmission rate
7.92 Gbit/s
Signal amplification
no
Max. resolution
Full HD (1920 x 1080p) 60 Hz
General
Markings
WEEE, CE
Operating temperature from
-10 °C
Operating temperature up to
80 °C
Warranty
10 years

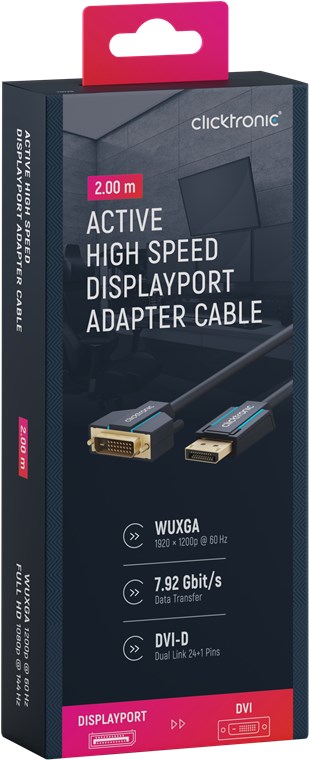

Packaging type
Retail Box
Dimensions / Weight
Consumption Unit
1 pc. in cardboard box
Downloads
Packing units:
1 / 15 / 30
Item: 70729
EAN: 4040849707292
